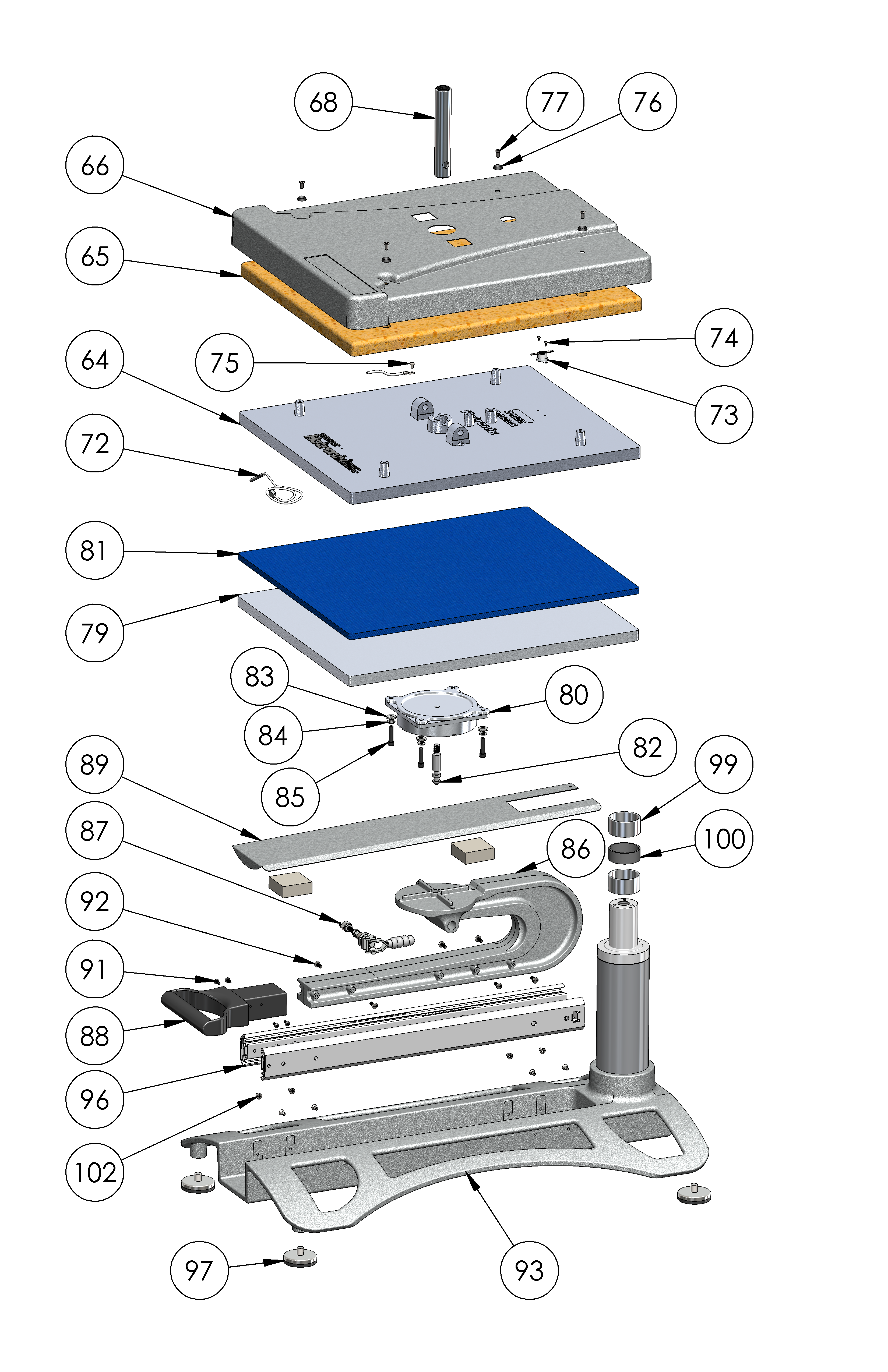

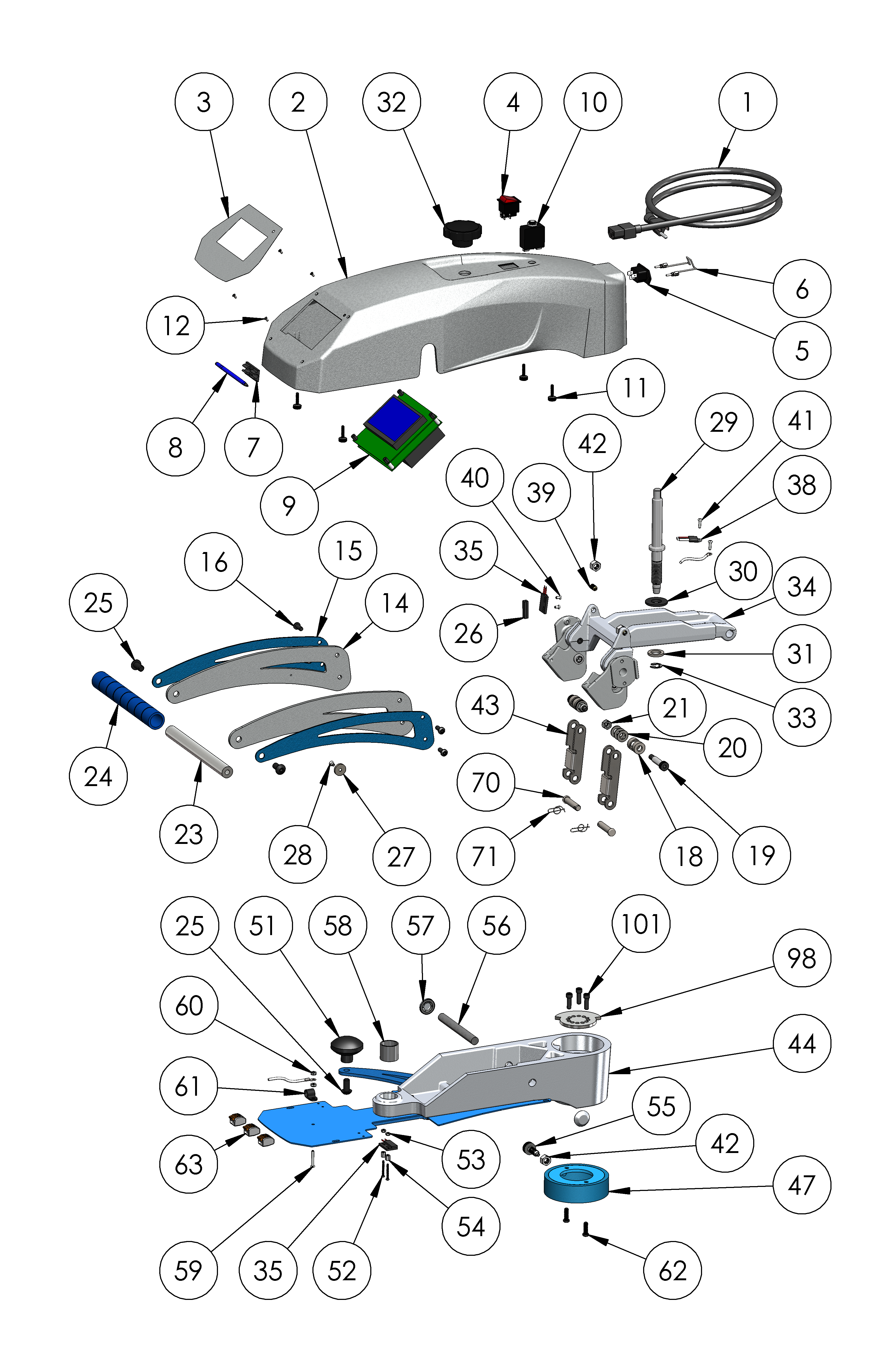

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Fusion

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

2-1671

Power Cord 120V (XF)

$12.00

Obsolete

OBSOLETE

Control Housing (Pre-2018 Model) (XF)

$75.38

1-2198

Screen Overlay (XF)

$9.50

KIT 3-6966

On/Off Power Switch Kit (XF)

$23.38

1-1759

IEC Power Inlet (XF)

$3.80

KIT 3-1326

IEC Power Inlet Kit (Single Breaker) (Pre -2018 Model) (XF)

$7.45

Obsolete

OBSOLETE

Power Cord Retaining Clamp (XF)

$0.00

1-2386

Touchscreen Stylus Holder (XF)

$4.25

1-2385

Touchscreen Stylus (XF)

$14.95

1-2266

Touch Screen Controller (-2018 Model) GREEN (XF)

$571.74

1-2192

9 Pin Connector (XF) - Not Shown

$18.00

1-1331-3

Circuit Breaker 20 AMP (XF)

$21.84

1-2200

Thumbscrew #8-32 x 17/32" (XF)

$1.32

1-2207

Inner Lift Arm (Thick Silver) (XF)

$32.50

1-2208

Outer Lift Arm (Thin Blue) (XF)

$22.50

3-1011-241

Screw, Button Socket Head 1/4"-20 X 5/8" (XF)

$1.23

1-1301

Bearing Cap (XF)

$7.29

3-1011-55

Screw, Shoulder 3/8" x 1-1/4" w/ 5/16"-18 Thread (XF)

$14.29

2-1006-46

Washer, 3/8" SAE Narrow (XF)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (XF)

$3.36

1-2434

Handle Spacer 8" (XF)

$14.00

1-2116

Foam Grip 8" (Blue) (XF)

$10.93

3-1011-244

Screw, Socket Button Head , 3/8-16 X 3/4" (XF)

$3.36

1-1219

Proximity Magnet (XF)

$10.30

1-2475

Magnet, Rare Earth N42 3/4 x 1/8 w/ #8 Countersink (XF)

$20.79

Kit 3-6947

Adjustment Spindle (Includes hardware - Parts 30, 31, & 33) (XF)

$29.35

1-1010-2

Adjustment Spindle (XF)

$13.94

2-1006-92

Washer, Spherical 5/8" (XF)

$4.50

1-2217

Shim, Steel, 5/8" ID 1" OD 1/8" Thick (XF)

$3.80

1-1012

Pressure Adjustment Knob (XF)

$11.13

1-1019-1

E-Clip 1/2" Shaft (XF)

$3.36

Kit 3-6943

Adjustment Casting Assembly (XF)

$162.28

1-1211

Proximity Switch (XF)

$30.93

1-2464

Triac (XF)

$37.12

1-2201

Ball Plunger 3/8"-16 x 5/8" (XF)

$11.62

3-1011-25

Screw, Machine #6-32 x 1/4" (XF)

$1.23

3-1011-19

Screw, Machine #6-32 x 1/2" (XF)

$1.23

2-1006-18

Nut, Hex 3/8"-16 (XF)

$3.80

1-1024

Lift Links (Qty 2) (XF)

$8.75

2-1664

Upper Casting (Call for 2014 and Prior Models) (XF)

$152.62

CALL TO CHECK AVAILABILITY

Stop Collar (XF)

$26.79

1-1054

Swing Knob Black 2in Threaded (XF)

$7.29

3-1011-130

Screw, Pan Phillips #4-40 x 1" (XF)

$1.23

2-1006-51

Nut, #4-40 with Tooth Washer (XF)

$1.23

1-2073

Standoff, #4-40 x 5/16" Aluminum 1/4" Hex (XF)

$2.92

1-2206

Spring Plunger, 3/8"-16 Hand Retractable (Older Brass Style) (XF)

$19.69

2-1055-29

Steel Pin. 1/2" x 4.69" (XF)

$2.92

1-1107-1

Hub Cap 1/2" (XF)

$0.86

1-1013

Lift Rod Bushing (XF)

$4.73

3-1011-13

Screw, Pan Phillips #6-32 x 1" (XF)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (XF)

$3.20

1-1105

Cable Clamp 7/16" (Black) (XF)

$2.92

3-1011-245

Screw, Socket Head Cap Low Profile 1/4-20 X 3/4" (XF)

$1.23

1-2365

3 Lever Nut Connector (XF)

$3.40

2-1002

Heat Platen 16 x 20 1800W - NO WIRING (XF)

$293.99

1-2256

Insulation, 16 x 20 (XF)

$10.32

1-2189

Heater Cover (XF)

$78.23

1-2194

Guide Tube (XF)

$46.10

1-1017-1

Pin, Clevis 3/8" x 1-3/8" (XF)

$4.78

1-1043-2

Retaining Clip, Rue Ring (XF)

$2.92

1-1272-1

Temperature Probe (XF)

$65.81

Kit 3-6968

Thermostat Disc Kit (XF)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 x 1/4" (XF)

$1.23

3-1011-87

Screw, SS Phillips #8-32 x 1/4" (XF)

$1.23

1-1063

Washer, Plastic Finishing (XF)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XF)

$1.23

2-1029-HD

Lower Platen, 16 x20 (XF)

$157.67

3-1336

Adapter Plate (XF)

$34.61

1-2136

Silicone Pad, 16 x 20 (Blue) (XF)

$157.67

1-2215

Quick Release Pin (XF)

$10.41

2-1006-25

Washer, Flat 1/4" SAE (XF)

$1.23

2-1006-44

Washer, Spring Lock 1/4" (XF)

$1.23

3-1011-191

Screw, Socket Head Cap 1/4"-20 x 1" (XF)

$2.92

3-1335

Quick Release C-Frame (XF)

$98.96

1-2332-1

Quick Release Clamp (XF)

$26.25

1-2206

Spring Plunger, 3/8"-16 Hand Retractable (Older Brass Style) (XF)

$19.69

1-2182

Draw Handle (XF)

$9.83

KIT 3-1294

Slide Tray Cover Plate (XF)

$29.95

3-1011-108

Screw, Sheet Metal #8 x 1/2" (XF)

$1.23

3-1011-103

Screw, PHIL FLT HD 10-32 x 1/2" (XF)

$1.23

4-1175

Base Casting (Call for 2014 and Prior Models) (XF)

$367.50

1-1749

Drawer Slider-Set of 2 (XF)

$97.03

1-2199-1

Rubber Foot (XF)

$8.36

CALL TO CHECK AVAILABILITY

Fusion Stop Plate (XF)

$23.95

1-2261

Needle Bearing Inner Race (XF)

$26.95

1-2433

100

Spindle Race Spacer (XF)

$5.84

3-1011-260

101

Screw, Socket Head Cap 1/4"-28 x 3/4"(XF)

$2.92

3-1011-69

102

Screw, Countersunk Phillips #10-24 x 3/8" (XF)

$1.23
