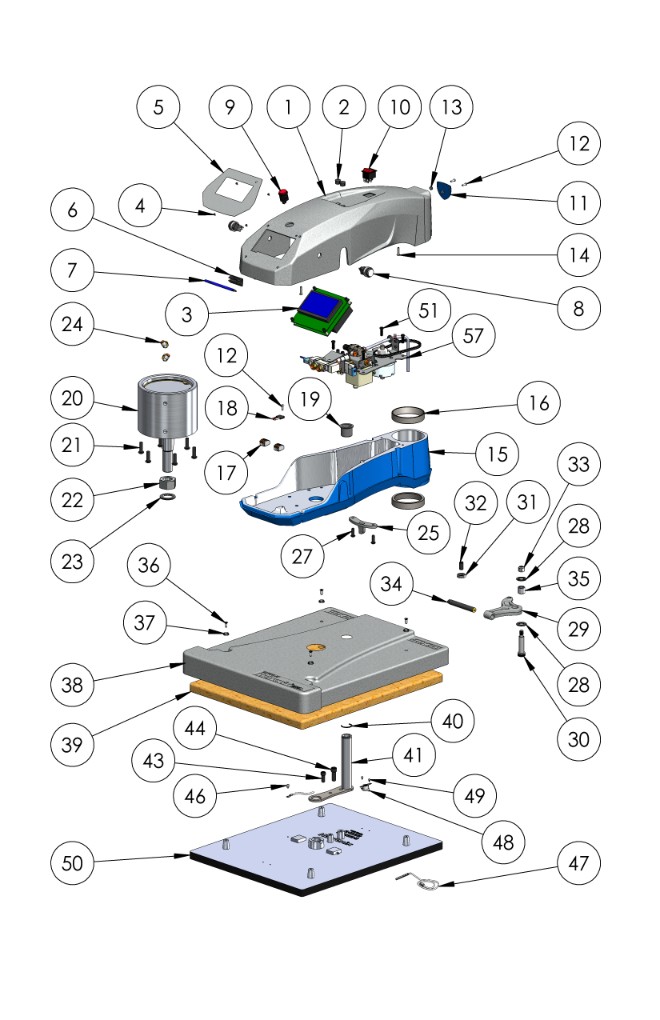

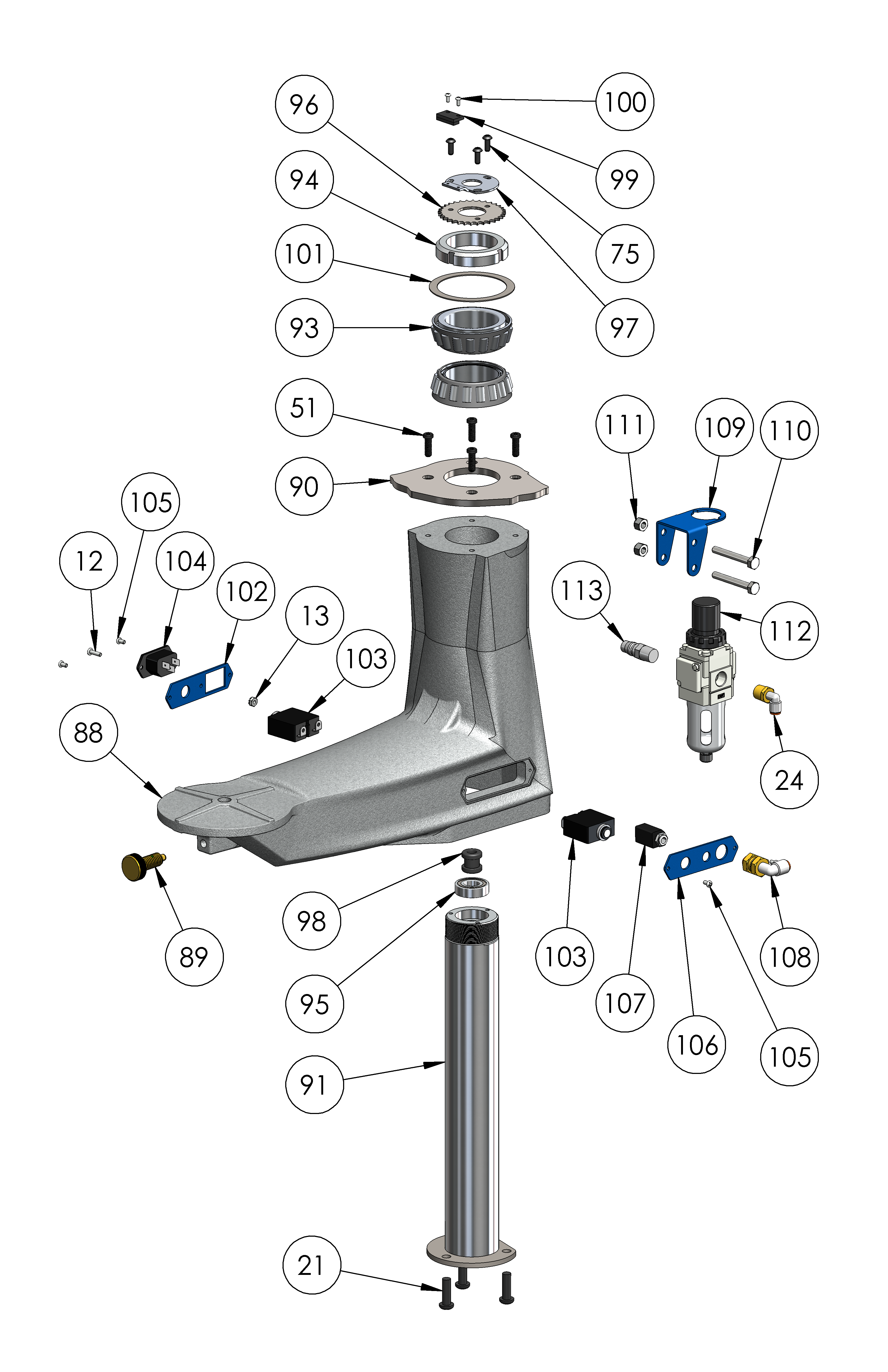

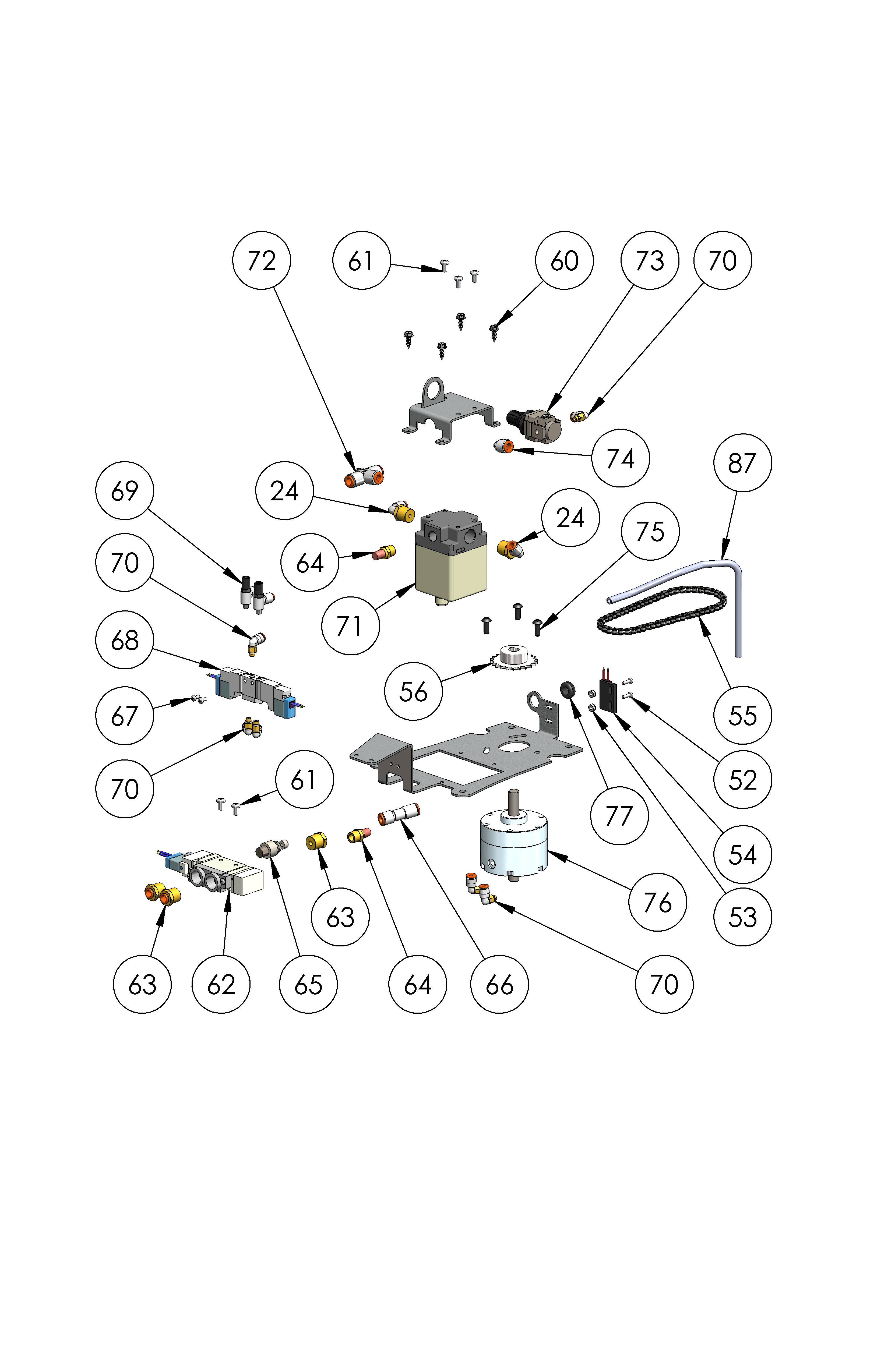

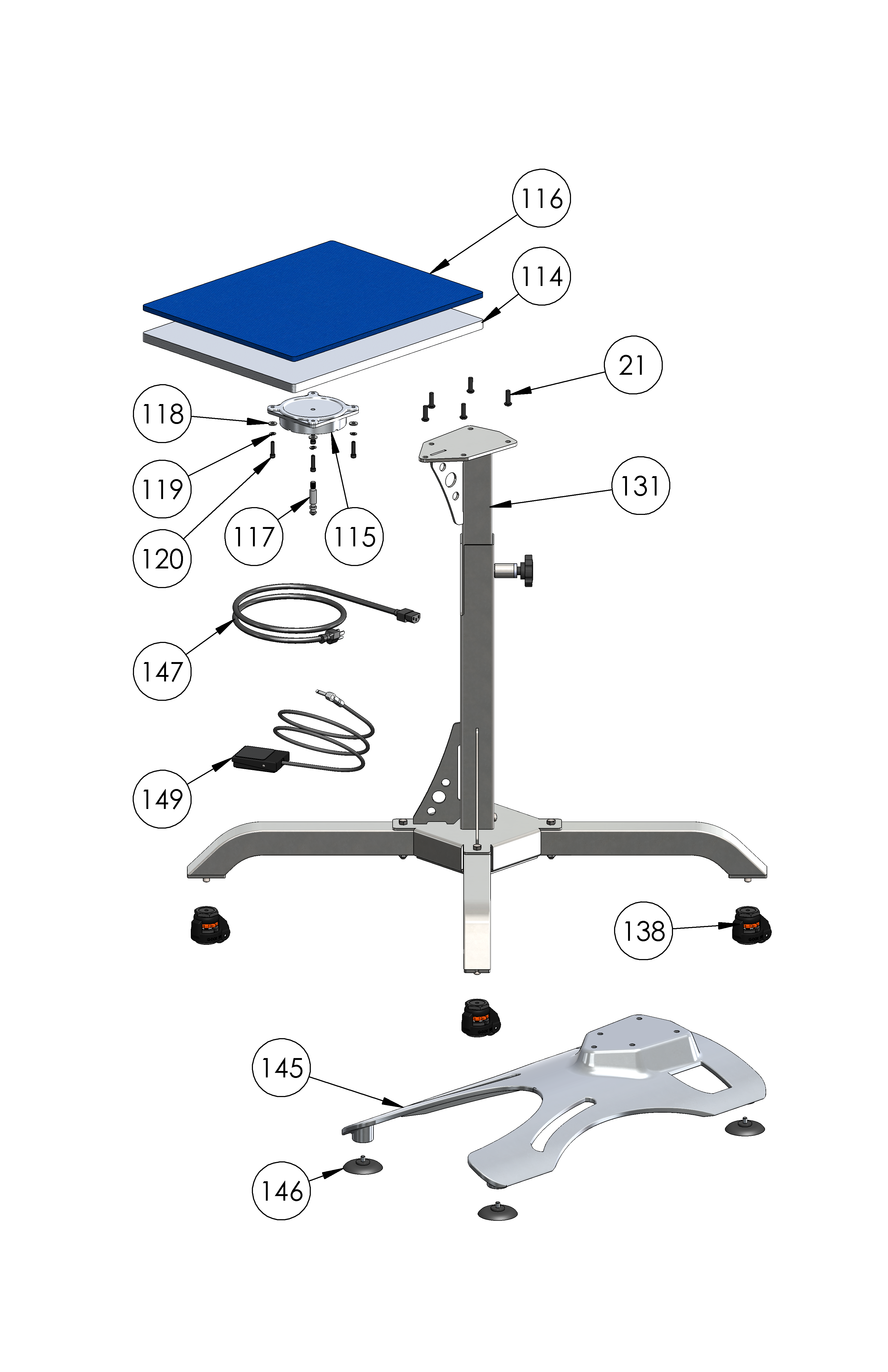

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Air Fusion

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

Obsolete

OBSOLETE 1-2197-1

Control Housing (2018 and Older) (XRF)

$75.38

1-1971

Cap, Plastic Black 1/2" (XRF)

$2.61

1-2266

Touch Screen Controller (-2018 Model) GREEN (XRF)

$571.74

1-2198

Screen Overlay (XRF)

$9.50

1-2386

Touchscreen Stylus Holder (XRF)

$4.25

1-2385

Touchscreen Stylus (XRF)

$14.95

1-2319

Button, Print Switch (White) (XRF)

$28.53

1-2270

Button, Quick Release (Red) (XRF)

$34.04

Kit 3-6966

On/Off Power Switch Kit (XRF)

$23.38

1-2423

Chevron Cover Plate (XRF)

$7.40

3-1011-19

Screw, Machine #6-32 x 1/2" (XRF)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (XRF)

$3.40

3-1011-155

Screw, Machine #8-32 x 3/4" (XRF)

$1.23

3-1341

Upper Casting (XRF)

$217.43

1-2268

Bearing, Tapered Cup (XRF)

$29.90

1-2464

Triac (XRF)

$37.12

1-2282

Bushing, Flange 1in (XRF)

$6.83

1-2264

Air Cylinder 6in (XRF)

$431.33

3-1011-104

Screw, Button Socket Head 5/16"-18 x 1" (XRF)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (XRF)

$3.36

2-1006-94

Washer, 1in Nord-Lock (XRF)

$10.41

4-1015-12

Air Fitting, Elbow Bulkhead 1/4" Tube (XRF)

$10.32

1-2302

Shock Stop Plate (XRF)

$26.38

3-1011-104

Screw, Button Socket Head 5/16"-18 x 1" (XRF)

$2.92

1-1048-3

Washer, 1/2" Nylon (XRF)

$1.23

1-2308

Rocker Arm (XRF)

$23.63

3-1011-276

Shoulder Bolt, 1/2" x 1-3/4" with 3/8"-16 Thread (XRF)

$6.94

1-2280

Bearing, 6900 Double Shielded (XRF)

$15.26

1-1018-1

Roll Pin, Spring 3/8" D x 3/4" LG (XRF)

$3.53

2-1006-20

Nut, Hex Nylok 5/16"-18 (XRF)

$3.36

1-2300

Shock Absorber (XRF)

$154.20

1-2289

Bearing, 1/2" Needle (XRF)

$14.28

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XRF)

$1.23

1-1063

Washer, Plastic Finishing (XRF)

$1.23

1-1063

Washer, Plastic Finishing (XRF-IQ)

$1.23

1-2263

Heater Cover (XRF)

$78.23

1-2256

Insulation, 16 x 20 (XRF)

$10.32

1-2286

C-Clip (XRF)

$3.36

1-2290

Guide Tube (XRF)

$56.10

3-1011-100

Screw, Socket Head 5/16"-18 x 3/4" (XRF)

$3.40

3-1011-43

Screw, Socket Head 3/8"-16 x 1" (XRF)

$2.92

3-1011-87

Screw, SS Phillips #8-32 X 1/4" (XRF)

$1.23

1-1272-1

Temperature Probe (XRF)

$65.81

Kit 3-6968

Thermostat Disc Kit (XRF)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 X 1/4" (XRF)

$1.23

2-1002-3

Heat Platen 16 x 20 1800W Milled (No Ears)(XRF)

$293.50

3-1011-245

Screw, Socket Head Cap Low Profile 1/4-20 X 3/4" (XRF)

$1.23

3-1011-22

Screw, Machine #4-40 x 3/8" (XRF)

$1.23

2-1006-51

Nut, #4-40 with Tooth Washer (XRF)

$1.23

1-1211

Proximity Switch (XRF)

$30.93

1-2307

Chain 04B (XRF)

$13.13

1-2306

Sprocket, 22 Tooth 04B (XRF)

$22.49

1-2269

Pneumatic Package Assembly (XRF)

$1028.16

1-2421

Screw, Sheet Metal Hex #8 x 1/2" (XRF)

$1.23

1-2417

Screw, M4x0.7 x 8 Pan Phillips (XRF)

$3.40

1-2299

Print Valve (XRF)

$192.73

1-2427

Air Fitting, Straight Hex 1/4" NPT 1/4" Tube (XRF)

$10.32

1-2418

Air Fitting, Muffler, 1/8" NPT (XRF)

$18.64

1-2339

Speed Control Muffler (XRF)

$23.64

1-2419

Air Fitting, Check Valve, 1/4" Push-to-Connect (XRF)

$22.70

1-2298

Swing Valve (XRF)

$130.25

1-2428

Air Fitting, Elbow Restrictor #10-32 UNC 5/32" Tube (XRF)

$38.95

1-2350

Air Fitting, Elbow #10-32 UNF 5/32" Tube (XRF)

$10.32

1-2293

Electro-Pneumatic Regulator (XRF)

$485.10

1-2420

Air Fitting, Tee, 1/4" Push-to-Connect (XRF)

$20.64

1-2297

Pneumatic Regulator, Mini (XRF)

$62.74

1-2430

Air Fitting, Elbow #10-32 UNF 1/4" Tube (XRF)

$10.32

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (XRF)

$1.23

1-2296

Rotary Actuator (XRF)

$289.28

1-2429

Grommet, 5/16" ID 1/2" OD (XRF)

$3.40

1-1274

Air Tubing, 1/4" Polyurethane (by foot) (XRF)

$3.15

3-1340

Bottom Casting (XRF)

$367.50

1-2206

Spring Plunger, 3/8"-16 Hand Retractable (Older Brass Style) (XRF)

$19.69

1-2284

Stop Plate (XRF)

$28.74

2-1670

Spindle (XRF)

$150.00

1-2267

Bearing, Tapered Roller Cone (XRF)

$48.07

2-1006-95

Spanner Nut 2in-18 (XRF)

$26.38

1-2281

Bearing, 6002 (XRF)

$48.07

CALL TO CHECK AVAILABILITY

Proximity Magnet Bracket (XRF)

$18.17

1-2285

Grommet, 3/8" ID 3/4" OD (XRF)

$3.40

1-2311

Proximity Magnet, Slotted (XRF)

$10.32

3-1011-278

100

Screw, Machine #4-40 x 1/4" (XRF)

$1.23

CALL TO CHECK AVAILABILITY

101

Bearing Shield (XRF)

$15.80

CALL TO CHECK AVAILABILITY

102

Panel (XRF)

$7.80

1-1331-3

103

Circuit Breaker 20 AMP (XRF)

$21.84

1-1759

104

IEC Power Inlet (XRF)

$3.80

KIT 3-1326

104

IEC Power Inlet Kit (Single Breaker) (-2017) (XRF)

$7.45

CALL TO CHECK AVAILABILITY

106

Panel, Breaker and Air Pedal (XRF)

$7.80

1-1759

106

IEC Power Inlet (XRF-IQ)

$3.80

4-1015-12

108

Air Fitting, Elbow Bulkhead 1/4" Tube (XRF)

$10.32

CALL TO CHECK AVAILABILITY

109

Regulator Bracket (XRF)

$18.79

3-1011-266

110

Screw, Hex Head 1/4"-20 x 2" (XRF)

$3.40

2-1006-7

111

Nut, Hex 1/4" - 20 Nylok (XRF)

$3.40

1-1215

112

Air Filter & Regulator (-2016 Model) (XRF)

$89.95

1-1215-1

112

Air Filter & Regulator (2017+ Model) (XRF)

$89.95

1-1790

112

Hose, Coiled Air Blue (XRF)

$50.46

1-1788

113

Air Fitting, 1/4" ARO Male Coupling 1/4" NPT (XRF)

$16.70

2-1029-HD

114

Lower Platen, 16 x20 (XRF)

$157.67

3-1336

115

Adapter Plate (XRF)

$36.97

1-2136

116

Silicone Pad, 16 x 20 (Blue) (XRF)

$157.67

1-2215

117

Quick Release Pin (XRF)

$10.41

2-1006-25

118

Washer, Flat 1/4" SAE (XRF)

$1.23

2-1006-44

119

Washer, Spring Lock 1/4" (XRF)

$1.23

3-1011-191

120

Screw, Socket Head Cap 1/4"-20 x 1" (XRF)

$2.92

1-2291

131

Pedestal Stand Assembly (XRF)

$409.94

1-2262

138

Self Leveling Stem Caster (XRF)

$33.58

1-2324

145

Tabletop Stand (XRF)

$313.95

1-2329

146

Rubber Foot (XRF)

$7.80

2-1671

147

Power Cord 120V (XRF)

$12.00

1-2186

147

Power Cord 240V (XRF)

$12.00

1-2305

149

Foot Pedal Assembly (XRF)

$23.36
