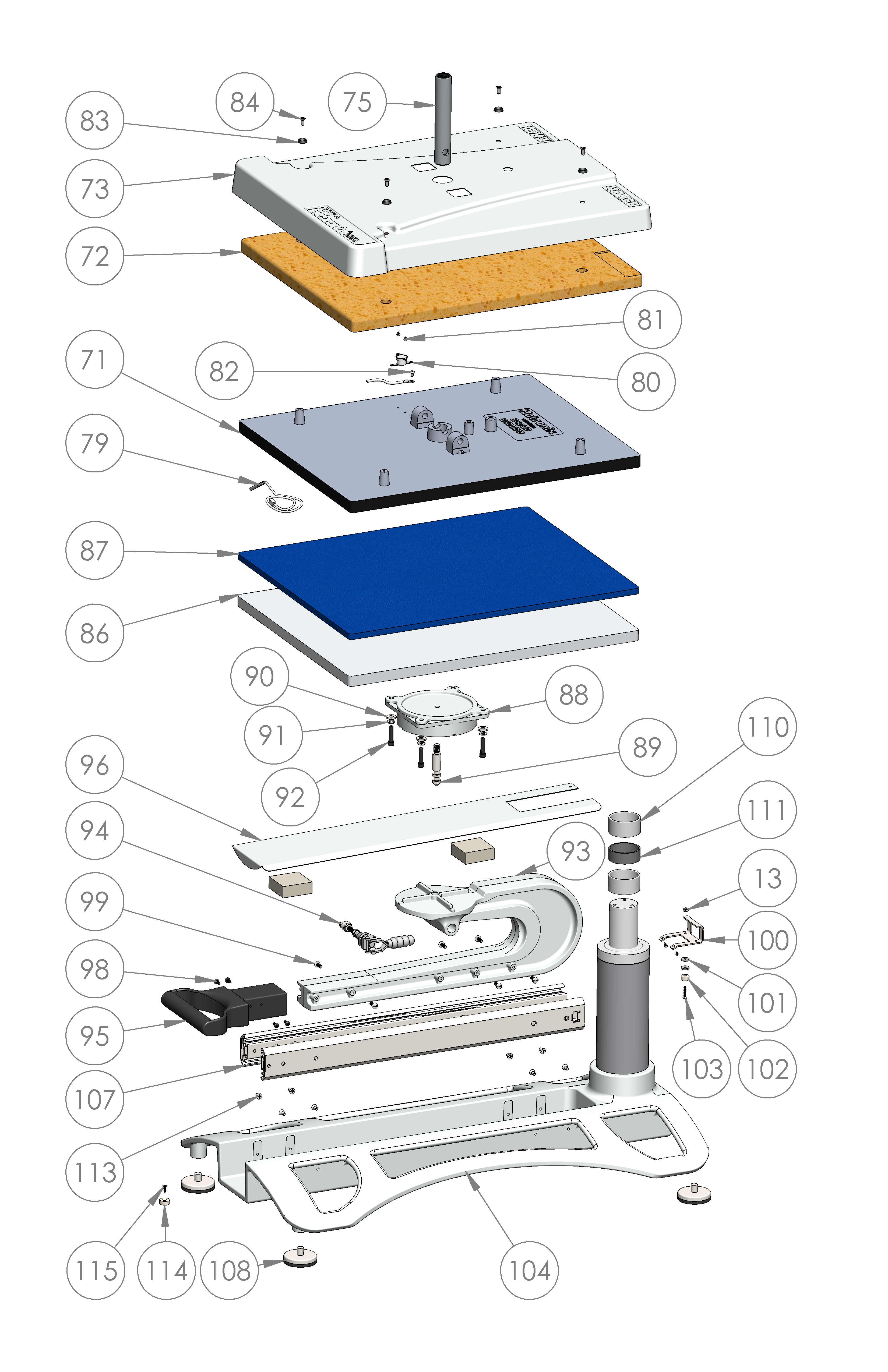

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Fusion IQ

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

2-1671

Power Cord 120V (XF IQ)

$12.00

1-2658-RF

Controller Screen (2018+ Model) GREEN (XF IQ)

$403.75

1-2664-F

Controller Screen (2024+ Model) BLUE (XF IQ)

$475.00

1-2198-1

Screen Overlay (XF IQ)

$7.40

1-2197

Control Housing (XF IQ)

$75.38

1-2658-P

Power Board (2018-2023 Model) GREEN (XF IQ)

$192.00

1-2664-P

Power Board (2024 + Model) BLUE (XF IQ)

$192.00

1-2473

Power Bracket (XF IQ)

$4.76

3-1011-235

Screw, Sheet Metal #6 x 1/2" (XF IQ)

$1.23

1-2474

Latch (XF IQ)

$1.23

1-2485-1

Spring, 1/4" x 1", 1.7lbs/in (XF IQ)

$1.23

KIT 3-6966

On/Off Power Switch Kit (XF IQ)

$23.38

1-1759

IEC Power Inlet (XF- IQ)

$3.80

KIT 3-1327

IEC Power Inlet Kit (Dual Breaker) (2018+ Model) (XF IQ)

$7.45

3-1011-19

Screw, Machine #6-32 x 1/2" (XF IQ)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (XF IQ)

$3.40

1-2386

Touchscreen Stylus Holder (XF IQ)

$4.25

1-2385

Touchscreen Stylus (XF IQ)

$14.95

1-1331-3

Circuit Breaker 20 AMP (XF IQ)

$21.84

1-2200

Thumbscrew #8-32 x 17/32" (XF IQ)

$1.32

1-2207

Inner Lift Arm (Thick Silver) (XF IQ)

$32.50

kit 3-6967

Arm Handle Assembly KIT (XF IQ)

$54.00

1-2208

Outer Lift Arm (Thin Blue) (XF IQ)

$22.50

3-1011-241

Screw, Button Socket Head 1/4"-20 X 5/8" (XF IQ)

$1.23

1-1301

Bearing Cap (XF IQ)

$7.29

3-1011-55

Screw, Shoulder 3/8" x 1-1/4" w/ 5/16"-18 Thread (XF IQ)

$3.16

2-1006-46

Washer, 3/8" SAE Narrow (XF IQ)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (XF IQ)

$3.36

1-2434

Handle Spacer (XF IQ)

$20.24

1-2116

Foam Grip 8" (Blue) (XF IQ)

$10.93

3-1011-244

Screw, Socket Button Head , 3/8-16 X 3/4" (XF IQ)

$3.36

1-1219

Proximity Magnet (XF IQ)

$10.32

1-2475

Magnet, Rare Earth N42 3/4 x 1/8 w/ #8 Countersink (XF IQ)

$20.79

1-2413

Machine Screw Countersunk Phillips 8-32 x 0.3125 (XF IQ)

$3.80

1-1010-2

Adjustment Spindle (XF IQ)

$13.94

2-1006-92

Washer, Spherical 5/8" (XF IQ)

$4.50

1-2217

Shim, Steel, 5/8" ID 1" OD 1/8" Thick (XF IQ)

$3.80

1-1012

Pressure Adjustment Knob (XF IQ)

$11.13

1-1019-1

E-Clip 1/2" Shaft (XF IQ)

$3.36

Kit 3-6943

Adjustment Casting Assembly (XF IQ)

$162.28

1-1211

Proximity Switch (XF IQ)

$30.93

1-2464-1

Triac (XF IQ)

$37.12

1-2201

Ball Plunger 3/8"-16 x 5/8" (XF IQ)

$11.62

3-1011-25

Screw, Machine #6-32 x 1/4" (XF IQ)

$1.23

3-1011-159

Screw, Machine #8-32 x 1/2" (XF IQ)

$1.23

2-1006-18

Nut, Hex 3/8"-16 (XF IQ)

$3.80

1-1024

Lift Links (Qty 2) (XF IQ)

$8.75

2-1664

Upper Casting (XF IQ)

$152.62

1-2445

Rubber Washer, 5/8" Screw Size (XF IQ)

$1.23

1-1054

Swing Knob- Black 2in Threaded (XF IQ)

$7.29

3-1011-130

Screw, Pan Phillips #4-40 x 1" (XF IQ)

$1.23

2-1006-51

Nut, #4-40 with Tooth Washer (XF IQ)

$1.23

1-2073

Standoff, #4-40 x 5/16" Aluminum 1/4" Hex (XF IQ)

$2.92

1-2288

Spring Plunger, 3/8"-16 Hand Retractable (2018+ silver style) (XF IQ)

$18.07

2-1055-27

Steel Pin, 1/2" x 4.38" (XF IQ)

$2.92

1-1107-1

Hub Cap 1/2" (XF IQ)

$0.86

1-2282

Bushing, Flange 1in (XF IQ)

$6.83

3-1011-155

Screw, Machine #8-32 x 3/4" (XF IQ)

$1.23

2-1006-52

Nut, Hex #8-32 w/ Tooth Washer (XF IQ)

$1.23

1-1105

Cable Clamp 7/16" (Black) (XF IQ)

$2.92

3-1011-245

Screw, Socket Head Cap Low Profile 1/4-20 X 3/4" (XF IQ)

$1.23

1-2365

3 Lever Nut Connector (XF IQ)

$3.40

2-1002

Heat Platen 16 x 20 1800W - NO WIRING (XF IQ)

$293.99

1-2256

Insulation, 16 x 20 (XF IQ)

$10.32

1-2189

Heater Cover (XF IQ)

$78.23

1-2194

Guide Tube (XF IQ)

$46.10

1-1017-1

Pin, Clevis 3/8" x 1-3/8" (XF IQ)

$4.78

1-1043-2

Retaining Clip, Rue Ring (XF IQ)

$2.92

1-1272-1

Temperature Probe (XF IQ)

$65.81

Kit 3-6968

Thermostat Disc Kit (XF IQ)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 X 1/4" (XF IQ)

$1.23

3-1011-87

Screw, SS Phillips #8-32 X 1/4" (XF IQ)

$1.23

1-1063

Washer, Plastic Finishing (XF IQ)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XF IQ)

$1.23

1-2318

Adapter Harness (XF IQ)

$25.73

2-1029-HD

Lower Platen, 16 x 20 (XF IQ)

$157.67

1-2136

Silicone Pad, 16 x 20 (Blue) (XF IQ)

$157.67

3-1336

Adapter Plate (XF IQ)

$34.61

1-2215

Quick Release Pin (XF IQ)

$10.41

2-1006-25

Washer, Flat 1/4" SAE (XF IQ)

$1.23

2-1006-44

Washer, Spring Lock 1/4”

$1.23

3-1011-191

Screw, Socket Head Cap 1/4"-20 x 1" (XF IQ)

$2.92

3-1335

Quick Release C-Frame (XF IQ)

$98.96

1-2332-1

Quick Release Clamp (XF IQ)

$26.25

1-2182

Draw Handle (XF IQ)

$9.83

Kit 3-1294

Slide Tray Cover Plate (XF IQ)

$29.95

3-1011-108

Screw, Sheet Metal #8 x 1/2" (XF IQ)

$1.23

3-1011-103

Screw, PHIL FLT HD 10-32 x 1/2" (XF IQ)

$1.23

2-1006-11

101

Washer, #6 Stainless Oversized (XF IQ)

$1.23

1-2487

102

Magnet, Neodymium 0.50 x 0.25 w/ #6 Countersink (XF IQ)

$6.82

3-1011-252

103

Screw, Pan Phillips #6-32 x 3/4" Stainless (XF IQ)

$1.23

4-1175

104

Base Casting (XF-IQ)

$367.50

1-1749

107

Drawer Slider-Set of 2 (XF IQ)

$97.03

1-2199-1

108

Rubber Foot (XF IQ)

$8.36

1-2261

110

Needle Bearing Inner Race (XF IQ)

$26.95

1-2433

111

Spindle Race Spacer (XF IQ)

$5.84

3-1011-69

113

Screw, Countersunk Phillips #10-24 x 3/8" (XF IQ)

$1.23

1-2486

114

Magnet, Neodymium 0.625 x 0.25 w/ #6 Countersink (XF IQ)

$9.02
