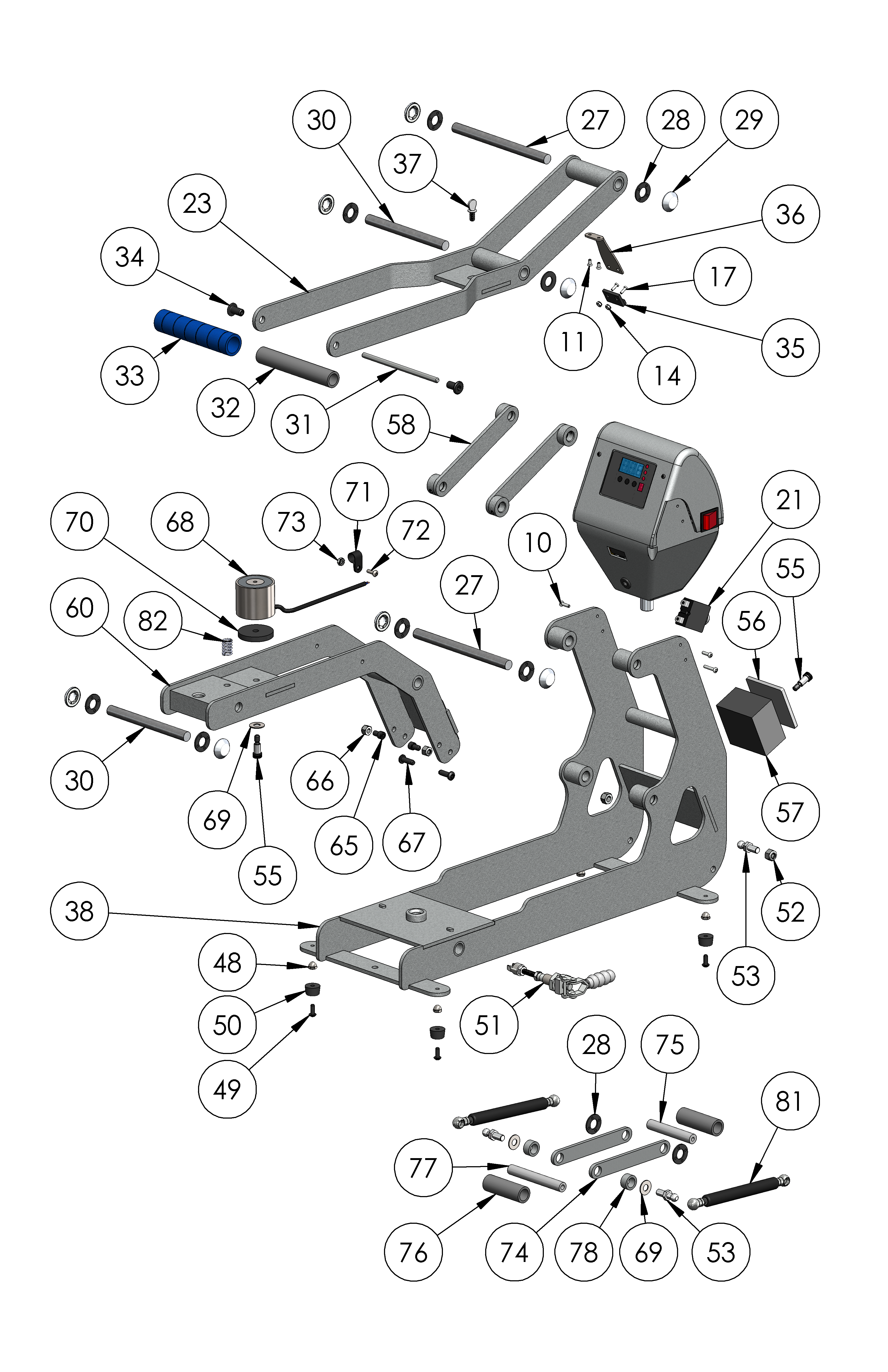

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Hover

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

4-1172-S

Control Housing (STX20*)

$24.27

1-2018-1

Screen Overlay (STX20*)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (STX20*)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (STX20*)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (STX20*)

$3.20

3-1011-130

Screw, Pan Phillips #4-40 x 1" (STX20*)

$1.23

1-1759

IEC Power Inlet (STX20*)

$3.80

Kit 3-6966

On/Off Power Switch Kit (STX20*)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (STX20*)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (STX20*)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (STX20*)

$20.16

KIT 3-6945

SSTT Controller Assembly (STX20*)

$219.51

2-1006-51

Nut, #4-40 with Tooth Washer (STX20*)

$1.23

2-1661

Controller Bracket (STX20*)

$21.84

2-1675

Triac (STX20*)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (STX20*)

$1.23

1-1290

Terminal Block (STX20*)

$8.51

1-1211

Proximity Switch (STX20*)

$30.93

1-1331-3

Circuit Breaker 20 AMP (STX20*)

$21.84

KIT 3-6930

Handle Assembly (STX20*)

$97.41

1-2094

Steel Pin 1/2" D x 6.45" (STX20*)

$2.92

1-1048-3

Washer, 1/2" Nylon (STX20*)

$1.23

1-1107-1

Hub Cap 1/2" (STX20*)

$0.86

1-2093

Steel Pin, 1/2" x 5.375" (STX20*)

$2.92

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STX)

$2.92

1-2096

PVC Spacer 1/2" I.D. x 5" (STX20*)

$3.80

1-2115

Foam Grip (Blue) (STX20*)

$7.29

2-1006-2

JCN Nut 1/4"-20 (STX)

$2.92

1-1219

Proximity Magnet (STX20*)

$10.32

1-2085

Proximity Magnet Bracket (STX20*)

$9.71

3-1011-232

Shipping Bolt (STX20*)

$2.92

KIT 3-6917

Base Assembly (STX20*)

$299.25

3-1011-252

Screw, Pan Phillips #6-32 x 3/4" (STX20*)

$1.23

3-1011-182

Acorn Hex Nut 10-32 (STX20*)

$1.23

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (STX20*)

$1.23

1-1256

Rubber Foot (STX20*)

$1.23

1-2332

Quick Release Clamp (STX20*)

$26.25

2-1006-20

Nut, Hex Nylok 5/16"-18 (STX20*)

$3.36

1-1939

Ball Stud 10mm (STX20*)

$2.92

3-1011-233

Screw, Shoulder 5/16" x 1/2" w 1/4" - 20 Thread (STX20*)

$2.92

1-1561

Silicone Pad 2 3/4" (STX20*)

$2.92

1-2157

Hover Electromagnet (STX20*)

$144.39

KIT 3-6905

Lift Link Set (STX20*)

$36.23

KIT 3-6916

Adjustment Arm Assembly (STX20*)

$120.75

3-1011-215

Soc HD Cap Screw 1/4-20 x 3/8" (STX20*)

$1.23

2-1006-7

Nut, Hex 1/4"-20 Nylock (STX20*)

$3.80

3-1011-106

Screw, Button Socket Head 1/4" -20 x 3/4" (STX20*)

$2.92

1-1945-1

Electromagnet (STX20*)

$63.07

2-1006-46

Washer, 3/8" SAE Narrow (STX20*)

$2.92

1-2133

Silicone Pad 5/16" I.D. x 1 3/4" O.D. x 1/4 (STX20*)

$2.92

1-1105

Cable Clamp 7/16" (Black) (STX20*)

$2.92

KIT 3-6906

Bridle Links Kit (STX20*)

$29.75

1-2091

Pin, 1/2" x 3" w/ 1/4-20 Threads (STX20*)

$8.51

1-2098

PVC Spacer 1/2" I.D. x 2.48" (STX20*)

$3.80

1-2092

Pin, 1/2" x 3-5/8" w/ 5/16"-18 Threads STX20*)

$8.51

1-2114

Steel Spacer (STX20*)

$7.29

1-2243

Gas Spring (STX20*)

$39.11

1-2163

Compression Spring (STX20*)

$7.80

2-1029-HD

Lower Platen, 16 x 20 (STX20*)

$157.67

1-2136

Silicone Pad, 16 x 20 (Blue) (STX20*)

$157.67

3-1336

Adapter Plate (STX20*)

$34.61

1-2215

Quick Release Pin (STX20*)

$10.41

2-1006-25

Washer, Flat 1/4" SAE (STX20*)

$1.23

2-1006-44

Washer, Spring Lock 1/4" (STX20*)

$1.23

3-1011-191

Screw, Socket Head Cap 1/4"-20 x 1" (STX20*)

$2.92

2-1002-3

Heat Platen 16 x 20 1800W Milled (No Ears) (STX20*)

$293.50

1-2256

Insulation, 16 x 20 (STX20*)

$10.32

3-1332-S

Heat Platen Cover 16 x 20 (STX20*)

$78.23

2-1081

Adjustment Spindle Kit (STX20*)

$36.06

1-1012

Pressure Adjustment Knob (STX20*)

$11.13

3-1011-63

Safety Bolt 5/16-18 x 3 1/2" (STX20*)

$2.92

Kit 3-6968

Thermostat Disc Kit (STX20*)

$26.49

1-1272-1

100

Temperature Probe (STX20*)

$65.81

3-1011-87

101

Screw, SS Phillips #8-32 x 1/4" (STX20*)

$1.23

3-1011-98

102

Screw, SS Sheet Metal #4 x 1/4" (STX20*)

$1.23

3-1011-217

104

Screw, Flat Head Phillips #10-24 x 7/16" (STX20*)

$1.23

1-1063

105

Washer, Plastic Finishing (STX20*)

$1.23

2-1048-3

106

Conduit 12" (STX20*)

$20.16

1-1940

107

Elbow 90 degrees with tubing (STX20*)

$11.66

2-1671

200

Power Cord 120V (STX20*)

$12.00

1-2186

201

Power Cord 240V (STX20*)

$12.00

1-1279

203

Lower Platen Spacer (STX20*)

$12.14

KIT 3-6924

204

Platen Lift Kit (STX20*)

$15.75

1-2367-1

205

Quick Change Keyway (STX20*)

$7.80

3-1011-127

206

Screw, Machine #8-32 x 3/8” Black Oxide (STX20*)

$1.23
