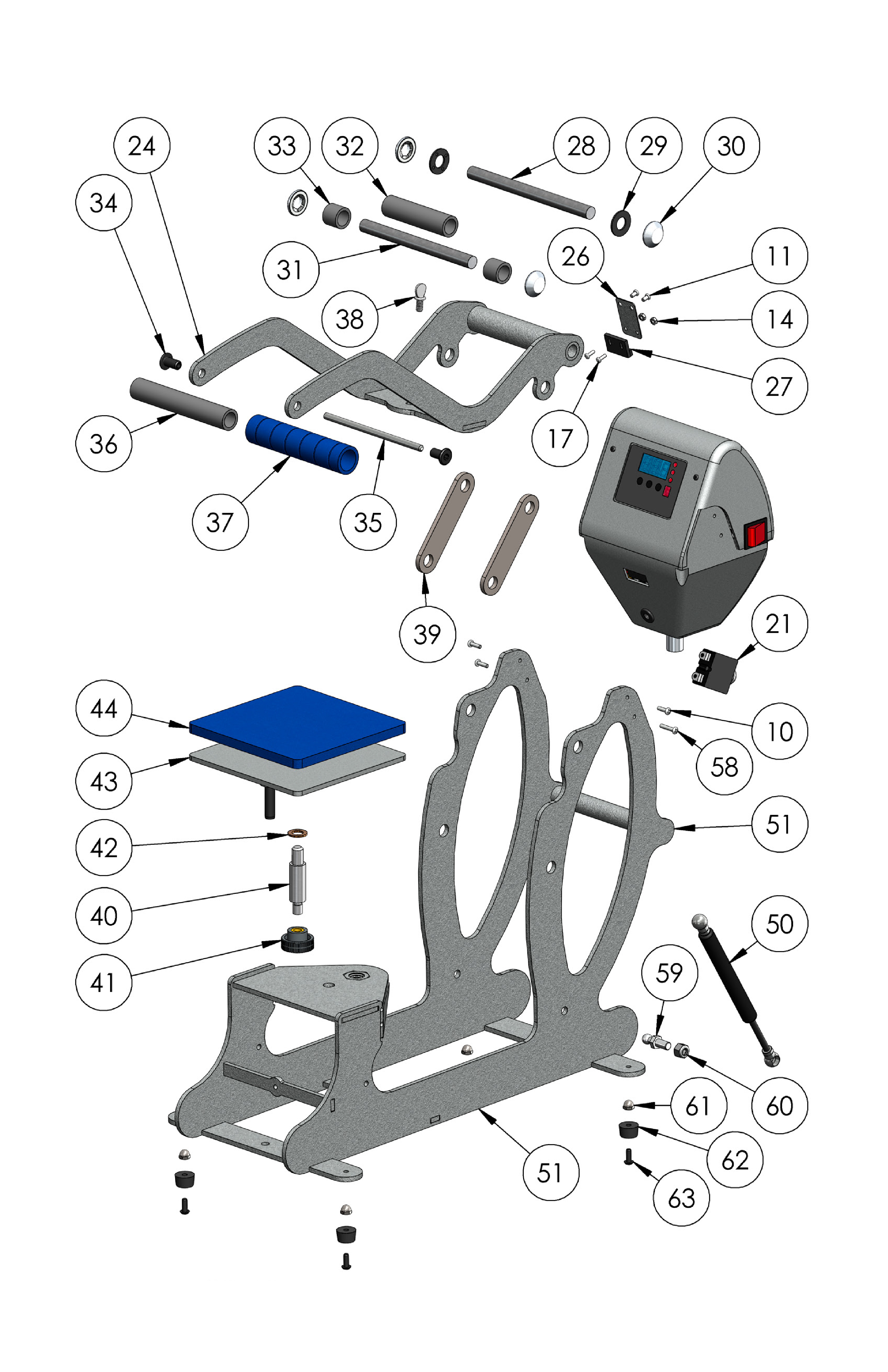

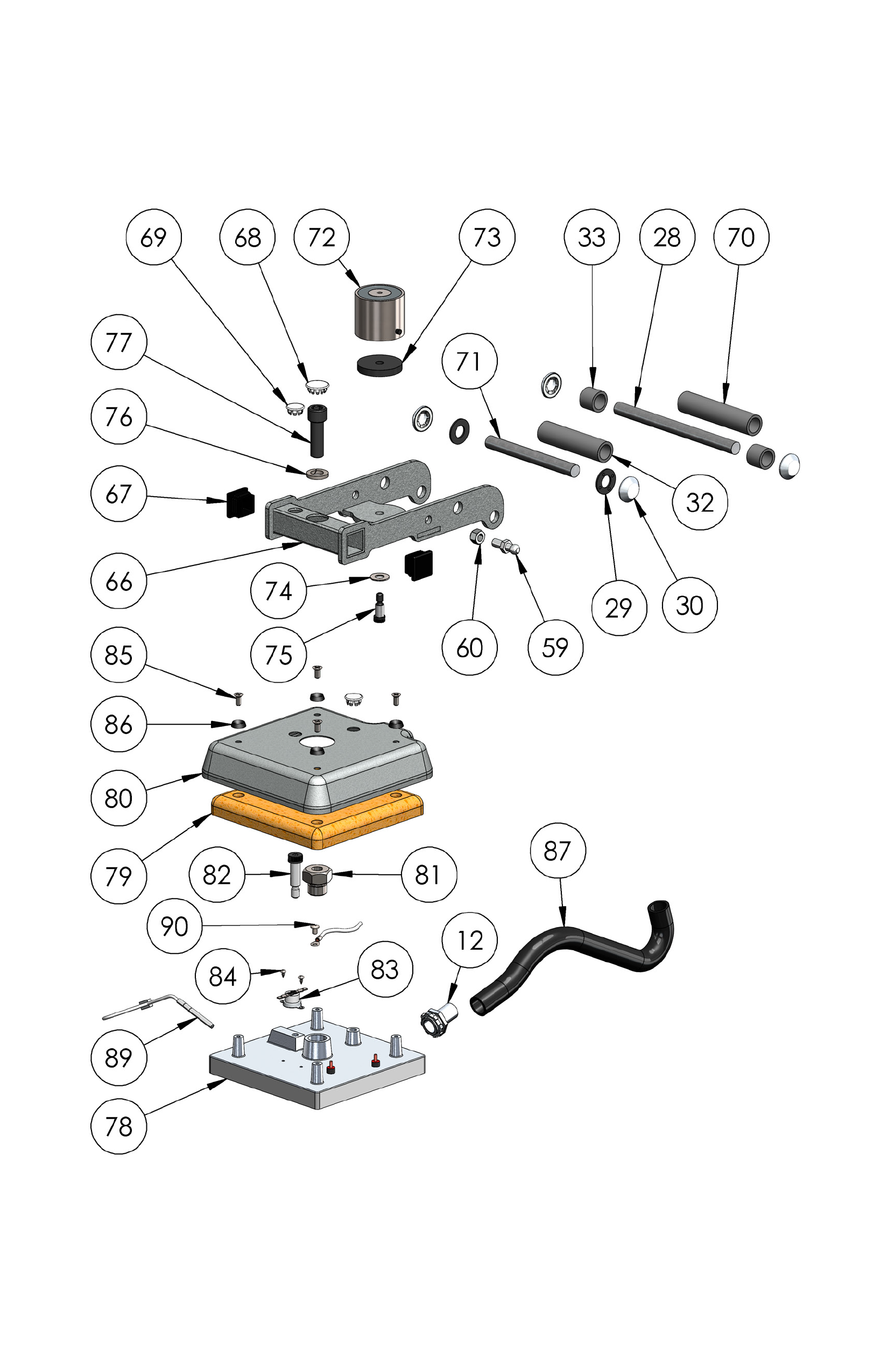

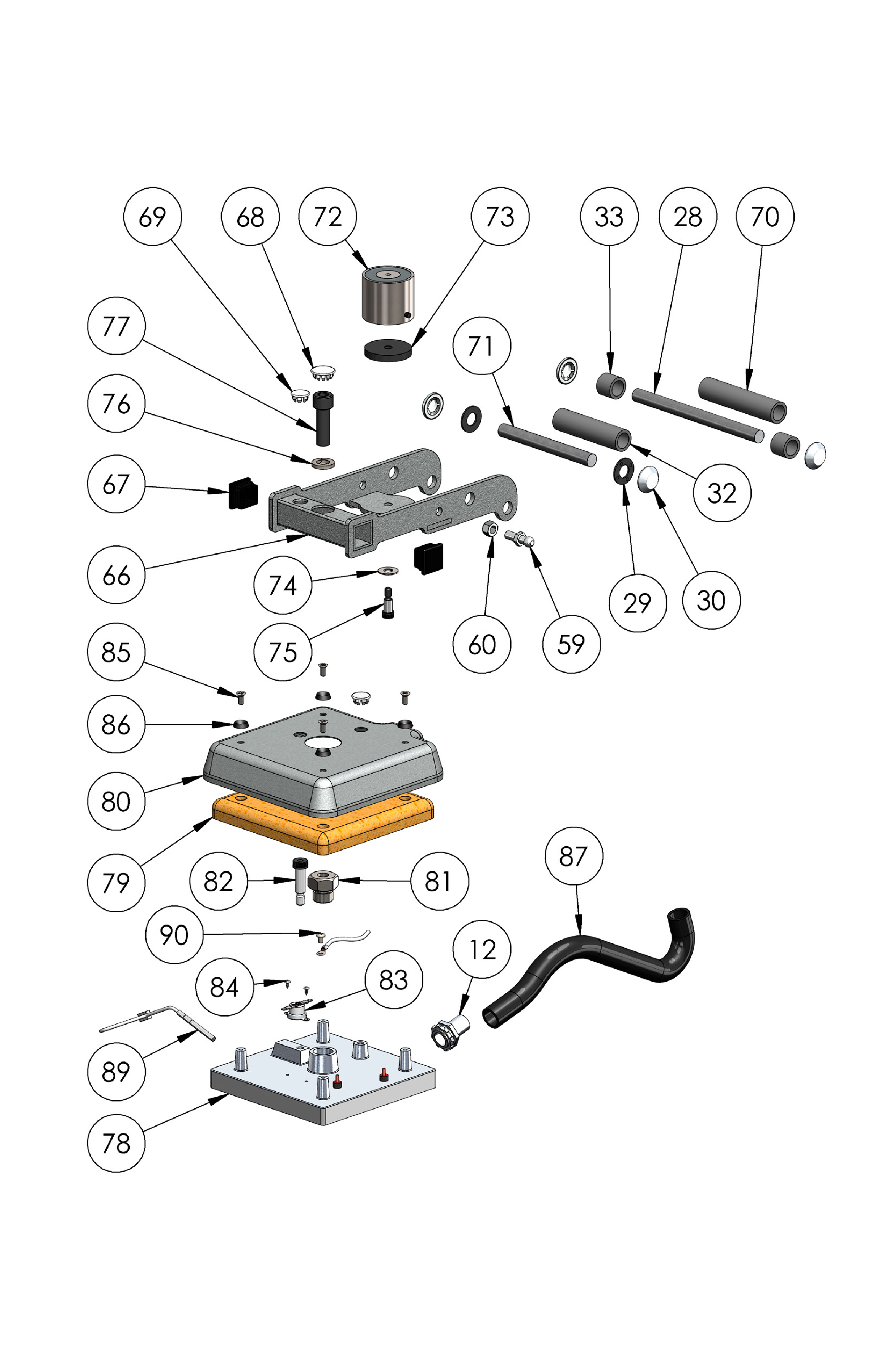

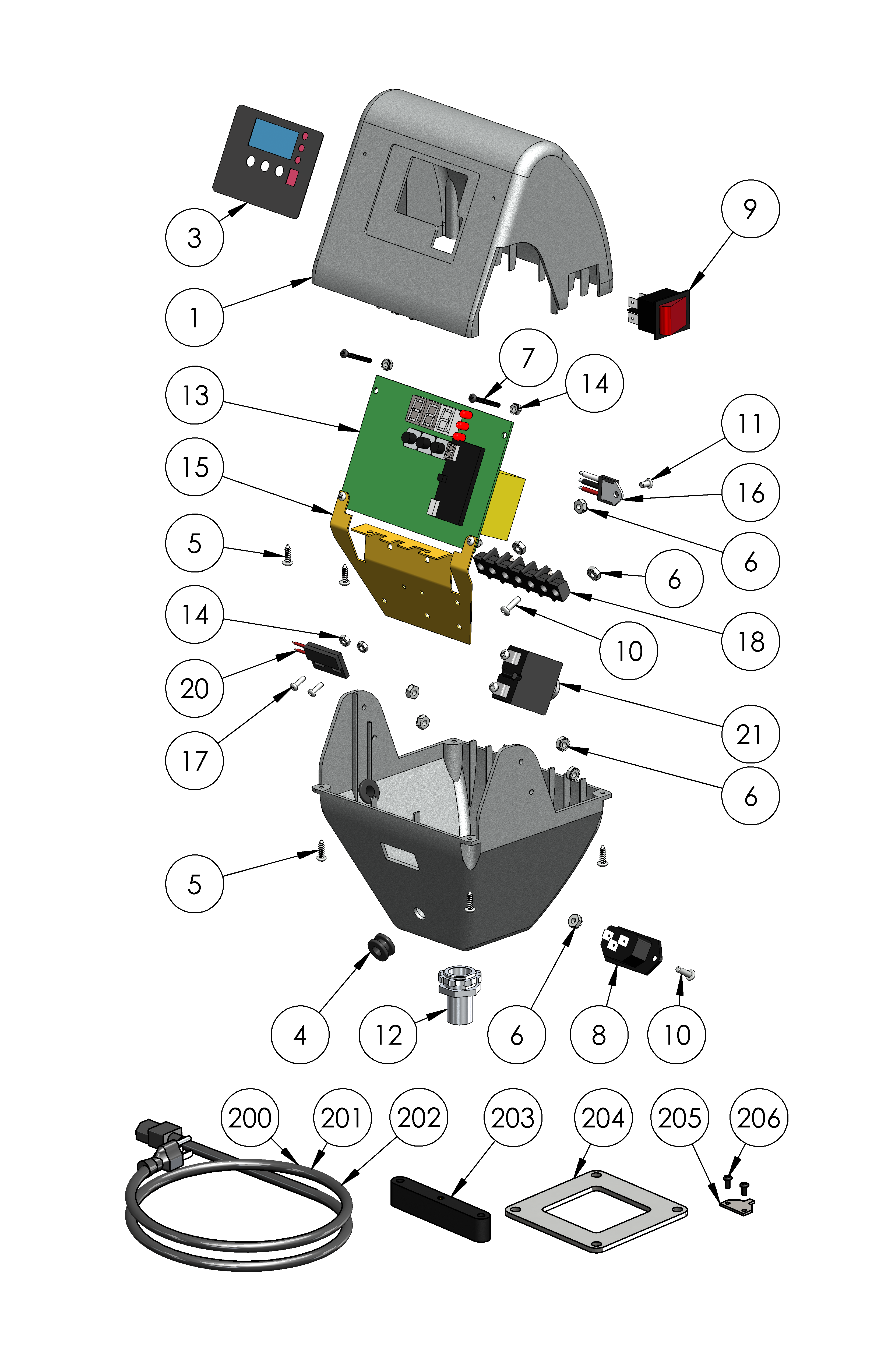

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix 6" X 6" Auto Clam

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

4-1172-S

Control Housing (STX6)

$23.11

1-2018-1

Screen Overlay (STX6)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (STX6)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (STX6)

$3.80

2-1006-50

Nut, #6-32 Hex with Lockwasher (STX6)

$3.20

1-1759

IEC Power Inlet (STX6)

$3.80

Kit 3-1326

IEC Power Inlet Kit (Single Breaker) (-2017) (STX6)

$7.45

Kit 3-1327

IEC Power Inlet Kit (Dual Breaker) (2018+ Model) (STX6)

$7.45

Kit 3-6966

On/Off Power Switch Kit (STX6)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (STX6)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (STX6)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (STX6)

$20.16

KIT 3-6945

SSTT Controller Assembly (STX6)

$219.51

2-1006-51

Nut, #4-40 with Tooth Washer (STX6)

$1.23

2-1661

Controller Bracket (STX6)

$21.84

2-1675

Triac (STX6)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (STX6)

$1.23

1-1290

Terminal Block (STX6)

$8.10

1-1211

Proximity Switch (STX6)

$30.93

1-2317

Circuit Breaker 5 AMP (STX6)

$21.84

KIT 3-6910

Handle Assembly (STX6)

$76.42

1-2085-3

Proximity Magnet Bracket (STX6)

$9.71

1-1219

Proximity Magnet (STX6)

$10.32

2-1055-26

Steel Pin 1/2" dia. 6.45 in. (STX6)

$2.92

1-1048-3

Washer, 1/2" Nylon (STX6)

$1.23

1-1107-1

Hub Cap 1/2" (STX6)

$0.86

2-1055-9

Steel Pin 1/2" dia. 5 7/8 in. (STX6)

$2.92

1-1049-1

PVC Spacer 1/2" I.D. 3.30 in. (STX6)

$2.78

1-1049-14

PVC Spacer 1/2" I.D. .7 in. (STX6)

$2.92

2-1006-2

JCN Nut 1/4"-20 (STX6)

$2.78

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STX6)

$2.92

1-1049-11

PVC Spacer 1/2" I.D. x 5" (STX6)

$3.80

1-2115

Foam Grip (Blue) (STX6)

$7.29

3-1011-232

Shipping Bolt (STX6)

$2.92

KIT 3-6909

Lift Link Set (STX6)

$34.50

1-1023

Adjustment Spindle (STX6)

$12.43

1-1095

Pressure Adjustment Knob (STX6)

$3.85

1-1051

Bronze Washer (STX6)

$2.92

KIT 3-6911

Lower Platen 6 x 6 (STX6)

$65.67

1-2138

Silicone Pad, 6x6 (Blue) (STX6)

$32.53

1-2246

Gas Spring (STX6X6)

$39.11

KIT 3-6907

Base Casting (STX6)

$184.70

3-1011-252

Screw, Pan Phillips #6 - 32 x 3/4" (STX6)

$1.23

1-1939

Ball Stud 10mm (STX6)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (STX6)

$1.23

3-1011-182

Acorn Hex Nut 10-32 (STX6)

$1.23

1-1256

Rubber Foot (STX6)

$1.23

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (STX6)

$1.23

KIT 3-6912

Heater Arm (STX6)

$35.21

1-1999

End Cap (STX6)

$3.15

1-2126

Plug, 3/4" Round Steel (STX6)

$4.73

1-2127

Plug, 9/16" Round Steel (STX6)

$4.73

1-1049-5

PVC Spacer 1/2" I.D. 3.80 in. (STX6)

$2.78

2-1055-29

Steel Pin. 1/2" x 4.69" (STX6)

$2.92

1-1945-1

Electromagnet (STX6)

$63.07

1-2133

Silicone Pad 5/16" I.D. x 1 3/4" O.D. (STX6)

$2.92

2-1006-46

Washer, 3/8" SAE Narrow (STX6)

$2.92

3-1011-233

Screw, Shoulder 5/16" x 1/2" w/ 1/4"-20 Thread (STX6)

$2.92

2-1006-80

Washer, Split Lock 1/2" (STX6)

$2.92

3-1011-72

Screw, Socket Head Cap 1/2" - 13 x 1.5" (STX6)

$9.19

3-1334

Heat Platen (STX6)

$175.31

1-2327

Insulation 6x6 (STX6)

$6.80

2-1662

Heat Platen Cover (STX6)

$40.93

1-2147-B

Adapter Bushing (STX6)

$28.06

3-1011-121

Shoulder bolt (STX6)

$3.53

Kit 3-6968

Thermostat Disc Kit (STX6)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 x 1/4" (STX6)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (STX6)

$1.23

1-1063

Washer, Plastic Finishing (STX6)

$1.23

2-1048-3

Conduit 12" (STX6)

$20.16

1-1272-1

Temperature Probe (STX6)

$65.81

3-1011-87

Screw, SS Phillips #8-32 x 1/4" (STX6)

$1.23

2-1671

200

Power Cord 120V (STX6)

$12.00

1-2186

201

Power Cord 240V (STX)

$12.00

1-1279

203

Lower Platen Spacer (STX)

$12.14

KIT 3-6924

204

Platen Lift Kit (STX)

$15.75

1-2367-1

205

Quick Change Keyway (STX)

$7.80

3-1011-127

206

Screw, Machine #8-32 x 3/8” Black Oxide (STX)

$1.23
