Heat Press Support

Select Heat Press

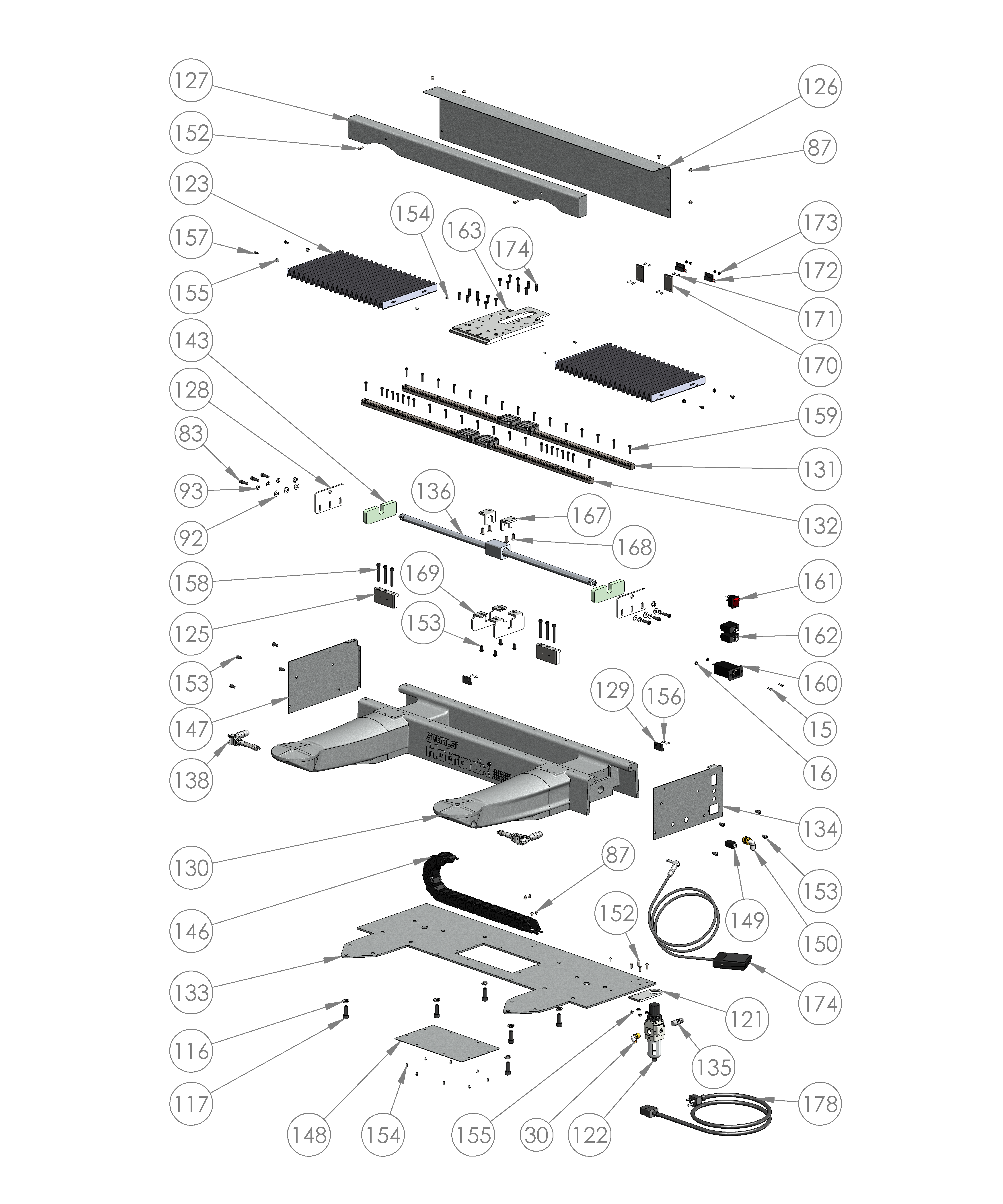

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Dual Air Fusion IQ

PART REPLACEMENT GUIDES
(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)
  • QTY.
  • PART NUMBER
  • LOCATION #
  • NAME
  • PRICE

Select Parts

1-2197
1
Control Housing (XRF2 IQ)
$75.38
1-2319
2
Button, Print Switch (White) (XRF2 IQ)
$28.53
1-2270
3
Button, Quick Release (Red) (XRF2 IQ)
$34.04
1-2658-P
4
Power Board (2018-2023 Model) GREEN (XRF2 IQ)
$192.00
1-2664-P
4
Power Board (2024 + Model) BLUE (XRF2 IQ)
$192.00
1-2473
5
Power Bracket (XRF2 IQ)
$4.76
3-1011-235
6
Screw, Sheet Metal #6 x 1/2" (XRF2 IQ)
$1.23
1-2474
7
Latch (XRF2 IQ)
$1.23
1-2485-1
8
Spring, 1/4" x 1", 1.7lbs/in (XRF2 IQ)
$1.23
1-2658-RF
9
Controller Screen (2018+ Model) GREEN (XRF2 IQ)
$403.75
1-2664-F
9
Controller Screen (2024+ Model) BLUE (XRF2 IQ)
$475.00
1-2198-1
10
Screen Overlay (XRF2 IQ)
$7.40
1-1971
11
Cap, Plastic Black 1/2" (XRF2 IQ)
$2.61
1-2386
12
Touchscreen Stylus Holder (XRF2 IQ)
$4.25
1-2385
13
Touchscreen Stylus (XRF2 IQ)
$14.95
1-2422
14
Power Switch Cover Plate (XRF2 IQ)
$7.40
3-1011-19
15
Screw, Machine #6-32 x 1/2" (XRF2 IQ)
$1.23
2-1006-50
16
Nut, #6-32 Hex with Lockwasher (XRF2 IQ)
$3.20
1-2423
17
Chevron Cover Plate (XRF2 IQ)
$7.40
3-1011-155
18
Screw, Machine #8-32 x 3/4" (XRF2 IQ)
$1.23
3-1341
19
Upper Casting (XRF2 IQ)
$217.43
1-2282
20
Bushing, Flange 1in (XRF2 IQ)
$6.83
1-2396
21
Bearing Spacer, 3/16" (XRF2 IQ)
$7.40
1-2397
22
Bearing Spacer, 1/4 (XRF2 IQ)
$14.95
2-1006-95
23
Spanner Nut 2in-18 (XRF2 IQ)
$26.38
1-2464-1
24
Triac (XRF2 IQ)
$37.12
1-2264
25
Air Cylinder 6in (XRF2 IQ)
$431.33
2-1006-94
26
Washer, 1in Nord-Lock (XRF2 IQ)
$10.41
2-1006-96
27
Nut, Hex Nylok 5/16"-18 (XRF2 IQ)
$8.20
-
28
Heater Spacer (XRF2 IQ)
$7.40
3-1011-20
29
Screw, Socket Head 5/16"-18 x 1-1/8" (XRF2 IQ)
$1.23
4-1015-12
30
Air Fitting, Elbow Bulkhead 1/4" Tube (XRF2 IQ)
$10.32
3-1011-217
31
Screw, Flat Head Phillips #10-24 x 7/16" (XRF2 IQ)
$1.23
1-1063
32
Washer, Plastic Finishing (XRF2 IQ)
$1.23
1-2263
33
Heater Cover (XRF2 IQ)
$78.23
1-2256
34
Insulation, 16 x 20 (XRF2 IQ)
$10.32
1-2286
35
C-Clip (XRF2 IQ)
$3.36
1-2290
36
Guide Tube (XRF2 IQ)
$56.10
3-1011-43
38
Screw, CAP HEX SOC HD 3/8-16 X 1" (XRF2 IQ)
$2.92
3-1011-100
39
Screw, Socket Head 5/16"-18 x 3/4" (XRF2 IQ)
$3.40
3-1011-87
40
Screw, SS Phillips #8-32 X 1/4" (XRF2 IQ)
$1.23
Kit 3-6968
42
Thermostat Disc Kit (XRF2 IQ)
$26.49
3-1011-98
43
Screw, SS Sheet Metal #4 X 1/4" (XRF2 IQ)
$1.23
1-1272-1
44
Temperature Probe
$65.81
2-1002-3
45
Heat Platen 16 x 20 1800W Milled (No Ears) (XRF2 IQ)- 120 volt press
$293.50
2-1002-3-HW
45
Heat Platen 16 x 20 3500W Milled (No Ears) (XRF2 IQ)- 240volt press
$279.52
3-1011-245
46
Screw, Socket Head Cap Low Profile 1/4-20 X 3/4" (XRF2 IQ)
$1.23
1-2269-1
47
Pneumatic Package (XRF2 IQ)
$979.20
1-2421
50
Screw, Sheet Metal Hex #8 x 1/2" (XRF2 IQ)
$1.23
1-2417
51
Screw, M4x0.7 x 8 Pan Phillips (XRF2 IQ)
$3.40
1-2299
52
Print Valve (XRF2 IQ)
$192.73
1-2427
53
Air Fitting, Straight Hex 1/4" NPT 1/4" Tube (XRF2 IQ)
$10.32
1-2418
54
Air Fitting, Muffler, 1/8" NPT (XRF2 IQ)
$18.64
1-2339
55
Speed Control Muffler (XRF2 IQ)
$23.64
1-2419
56
Air Fitting, Check Valve, 1/4" Push-to-Connect (XRF2 IQ)
$22.70
1-2298
58
Swing Valve (XRF2 IQ)
$130.25
1-2428
59
Air Fitting, Elbow Restrictor #10-32 UNC 5/32" Tube (XRF2 IQ)
$38.95
1-2350
60
Air Fitting, Elbow #10-32 UNF 5/32" Tube (XRF2 IQ)
$10.32
1-2293
61
Electro-Pneumatic Regulator (XRF2 IQ)
$485.10
1-2420
62
Air Fitting, Tee, 1/4" Push-to-Connect (XRF2 IQ)
$20.64
1-2297
63
Pneumatic Regulator, Mini (XRF2 IQ)
$62.74
1-2430
64
Air Fitting, Elbow #10-32 UNF 1/4" Tube (XRF2 IQ)
$10.32
1-2429
65
Grommet, 5/16" ID 1/2" OD (XRF2 IQ)
$3.40
1-2394
75
Dual Alignment Arm (XRF2 IQ)
$14.80
1-2347
76
Press Mount Casting (XRF2 IQ)
$250.00
2-1670-1
77
Spindle (XRF2 IQ)
$95.62
1-2393
79
Press Mount Cover (XRF2 IQ)
$78.23
1-2398
80
Alignment Arm Spacer
$4.50
1-2395
81
Press Mount Keeper Bar (XRF2 IQ)
$21.08
2-1006-91
82
Washer Flat 5/16" SS (XRF2 IQ)
$2.92
3-1011-106
83
Screw, Socket Head 1/4”-20 x 3/4” (XRF2 IQ)
$3.80
3-1011-20
84
Screw, Socket Head 5/16"-18 x 1-1/8" (XRF2 IQ)
$1.23
3-1011-277
85
Screw, Socket Head BLK 5/16"-18 x 5/8" (XRF2 IQ)
$2.92
3-1011-276
86
Shoulder Bolt 1/2 X 1 W/ 3/8-16 Thread - (XRF2)
$2.78
3-1011-81
87
Dual Air Fusion IQ - Screw, Machine #8-32 x 1/4”
$2.78
2-1029-HD
88
Lower Platen, 16 x 20 (XRF2 IQ)
$157.67
1-2136
89
Silicone Pad, 16 x 20 (Blue) (XRF2 IQ)
$157.67
3-1336
90
Adapter Plate (XRF2 IQ)
$34.61
1-2215
91
Quick Release Pin (XRF2 IQ)
$10.41
2-1006-25
92
Washer, Flat 1/4" SAE (XRF2 IQ)
$1.23
2-1006-44
93
Washer, Spring Lock 1/4" (XRF2 IQ)
$1.23
3-1011-191
94
Screw, Socket Head Cap 1/4"-20 x 1" (XRF2 IQ)
$2.92
1-2348
95
Laser Alignment Bracket (XRF2 IQ)
$525.00
1-2348-1
102
Laser Diode (XRF2 IQ)
$34.13
1-2345
105
Laser Assembly (XRF2 IQ)
$175.00
1-2575
112
Rubber Foot (XRF2 IQ)
$25.48
1-1790
114
Hose, Coiled Air Blue (XRF2 IQ)
$50.46
1-2349
115
Plastic Square End Cap (XRF2 IQ)
$4.73
2-1006-43
116
Washer, Lock Spring Type 3/8" Dia (XRF2 IQ)
$2.92
3-1011-43
117
Screw, CAP HEX SOC HD 3/8-16 X 1" (XRF2 IQ)
$2.92
1-1215
122
Air Filter & Regulator (-2016 Model) (XRF2 IQ)
$89.99
1-1215-1
122
Air Filter & Regulator (2017+ Model) (XRF2 IQ)
$89.99
1-2491
122
Drain Bowl (XRF2 IQ)
$29.95
1-2335
123
Curtain Bellows (XRF2 IQ)
$105.22
1-2342
125
Carriage Plate Keeper (XRF2 IQ)
$61.03
1-2340
126
Hotronix Dual Air Fusion - Tin Assembly (Includes 126 & 127)
$153.68
1-1219
129
Proximity Magnet (XRF2 IQ)
$10.32
4-1176
130
Base Casting (XRF2 IQ)
$1243.13
1-2367-1
130
Quick Change Keyway (XRF2 IQ)
$7.80
1-2336-1
131
Rail and Block- Rear (XRF2 IQ)
$440.90
1-2336-2
132
Rail and Block- Front (XRF2 IQ)
$440.90
1-1788
135
Air Fitting, 1/4" ARO Male Coupling 1/4" NPT (XRF2 IQ)
$16.70
1-2338
136
Air Cylinder Rodless (XRF2 IQ)
$577.89
1-2332-1
138
Quick Release Clamp (XRF2 IQ)
$26.25
1-2424
143
Silicone Damper (XRF2 IQ)
$16.27
1-2337
145
Cable Carrier (XRF2 IQ)
$51.10
1-2340
147
Tin Assembly (Includes 134, 147, 148, 149) (XRF2 IQ)
$153.68
3-1011-159
152
Screw, Machine #8-32 x 1/2" (XRF2 IQ)
$1.23
3-1011-241
153
Screw, Cap Hx Socket 1/4"-20 x 5/8" (XRF2 IQ)
$1.23
3-1011-25
154
Screw, Machine #6-32 x 1/4" (XRF)
$1.23
2-1006-52
155
Nut, Hex #8-32 w/ Tooth Washer (XRF2 IQ)
$1.23
3-1011-22
156
Screw, Machine #4-40 x 3/8" (XRF2 IQ)
$1.23
3-1011-127
157
Screw, Machine #8-32 x 3/8” Black Oxide (XRF2 IQ)
$1.23
3-1011-194
158
Screw, Socket Head 1/4"- 20 x 1 - 3/4"
$2.92
3-1011-268
159
Dual Air Fusion IQ - Screw, Socket Head M4 x 20 mm
$1.74
1-2490
160
Power Inlet and Filter, 20A 240V (XRF2 IQ)
$30.08
KIT 3-6966
161
On/Off Power Switch Kit (XRF2 IQ)
$23.38
1-1331-3
162
Circuit Breaker 20 AMP (XRF2 IQ)
$21.84
1-2344
163
Carriage Plate (XRF2 IQ)
$150.00
1-2341
167
Drive Angle (XRF2 IQ)
$26.00
3-1011-261
168
Screw, Flathead Phillips 1/4" -20 x 1/2" (XRF2 IQ)
$1.54
1-2343
169
Hard Stop (XRF2 IQ)
$46.02
1-2425
170
Magnet Bracket (XRF2 IQ)
$9.71
3-1011-278
171
Screw, Machine #4-40 x 1/4" (XRF2 IQ)
$1.23
1-1211
172
Proximity Switch (XRF2 IQ)
$30.93
2-1006-51
173
Nut, #4-40 with Tooth Washer (XRF2 IQ)
$1.23
3-1011-263
173
Screw, Socket Head M5 x 15mm (XRF2 IQ)
$3.80
1-2305
174
Foot Pedal Assembly (XRF2 IQ)
$23.36
1-2353
178
Power Cord 250V (XRF2)
$25.15
