Heat Press Support

Select Heat Press

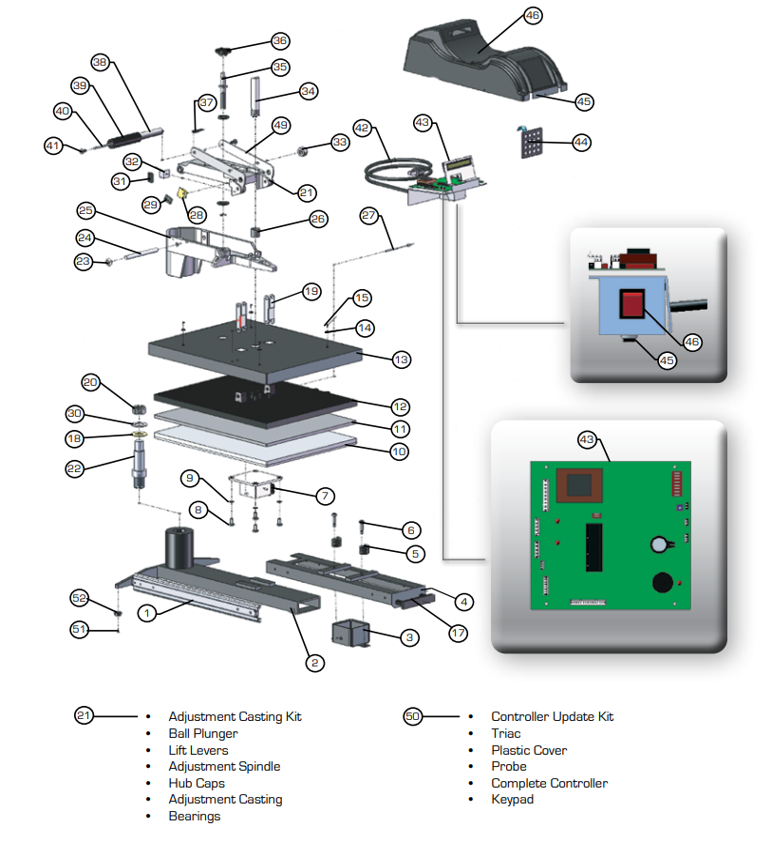

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

DRAW (XD)

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)
DOWNLOAD GUIDE
  • QTY.
  • PART NUMBER
  • LOCATION #
  • NAME
  • PRICE

Select Parts

1-1749
1
Drawer Slider-Set of 2 (XD)
$97.03
Obsolete
4-1094 OBSOLETE
2
Draw Base (XD)
$0.00
Obsolete
Kit 3-6913 OBSOLETE
3
Head Piece (XD)
$0.00
Obsolete
Kit 3-6914 OBSOLETE
4
Slide Piece (XD)
$0.00
Obsolete
1-1837 OBSOLETE
5
Spring, Die 1/2" I.D. x 1 (XD)
$0.00
3-1011-121
6
Shoulder Bolt, Soc HD 3/8"x 1" (XD)
$3.53
2-1033
7
Post Casting (XD)
$32.36
3-1011-62
8
Hex Soc Cap Screw 1/4-20 x1 1/4" (XD)
$1.23
2-1006-44
9
Washer, Spring Lock 1/4” (XD)
$1.23
2-1029-HD
10
Lower Platen, 16 x 20 (XD)
$157.67
1-1011
11
Silicone Pad, 16 x 20 (Gray) (XD)
$157.67
2-1002
12
Heat Platen 16 x 20 1800W - NO WIRING (XD)
$293.99
Obsolete
2-1003 OBSOLETE
13
Heat Platen Cover (XD)
$0.00
1-1063
14
Washer, Plastic Finishing (XD)
$1.23
3-1011-217
15
Screw, Flat Head Phillips #10-24 x 7/16" (XD)
$1.23
1-2021
16
Control Board (XD)
$325.00
Obsolete
1-1783 OBSOLETE
17
Pull Handle (XD)
$0.00
Obsolete
1-1015 OBSOLETE
18
Washer, Bronze (XD)
$0.00
1-1024
19
Lift Links (Qty 2) (XD)
$8.75
Obsolete
2-1006-1 OBSOLETE
20
Nut, Hex Slotted Castle (XD)
$0.00
Obsolete
Kit 3-1216 OBSOLETE
21
Adjustment Casting Assembly (XD)
$0.00
Obsolete
2-1005 OBSOLETE
22
Main Spindle (XD)
$0.00
1-1107-1
23
Hub Cap 1/2" (XD)
$0.86
Obsolete
1-1004 OBSOLETE
24
Steel Pin 1/2" X 5 7/8" (XD)
$0.00
Obsolete
Kit 3-1255 OBSOLETE
25
Top Casting (XD)
$0.00
Obsolete
1-1013 OBSOLETE
26
Guide Tube Bushing (XD)
$0.00
1-1272-1
27
Temperature Probe (XD)
$62.68
Obsolete
1-1278 OBSOLETE
28
Magnet Bracket (XD)
$0.00
1-1219
29
Proximity Magnet (XD)
$10.32
Obsolete
2-1006-21 OBSOLETE
30
Washer, Type A 1" I.D. (XD)
$0.00
1-1211
31
Proximity Switch (XD)
$30.93
Obsolete
1-1277 OBSOLETE
32
Proximity Bracket (XD)
$0.00
Obsolete
1-1039 OBSOLETE
33
Ball Plunger (XD)
$0.00
Obsolete
1-1005 OBSOLETE
34
Guide Tube Bushing (XD)
$0.00
Obsolete
Kit 3-1220 OBSOLETE
35
Adjustment Spindle Kit (XD)
$0.00
1-1012
36
Pressure Adjustment Knob (XD)
$11.13
Obsolete
1-1059 OBSOLETE
37
Triac (XD)
$0.00
Obsolete
1-1049-6 OBSOLETE
38
PVC Spacer 1/2" x4.90 (XD)
$0.00
1-1540
39
Foam Grip (Black) (XD)
$7.29
1-1042-1
40
All Thread Pin 1/4-20 x 4 3/4" (XD)
$2.92
2-1006-2
41
JCN Nut 1/4"-20 (XD)
$2.92
2-1013-1
42
Power Cord 120V (XD)
$12.00
1-1031
43
LCD Display (XD)
$102.32
1-1135
43.1
Ribbon Cable (XD)
$16.92
2-1014
44
Keypad (XD)
$106.77
Obsolete
3-1011-127 OBSOLETE
45
Cover Screw 8-32 x 3/8" (XD)
$0.00
Obsolete
3-1013 OBSOLETE
46
Plastic Cover (XD)
$0.00
1-1331-3
47
Circuit Breaker 20 AMP (XD)
$21.84
Kit 3-6966
48
On/Off Power Switch Kit (XD)
$23.38
Obsolete
Kit 3-1262 OBSOLETE
49
Lift Handle Assembly (XD)
$0.00
Obsolete
Kit 3-1226 OBSOLETE
50
Controller Update Kit (XD)
$0.00
3-1011-164
51
Hex Soc Button HD #10-21 x 1/2" (XD)
$1.23
1-1256
52
Rubber Foot (XD)
$1.23
