Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Stampinator 480

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

3-1369

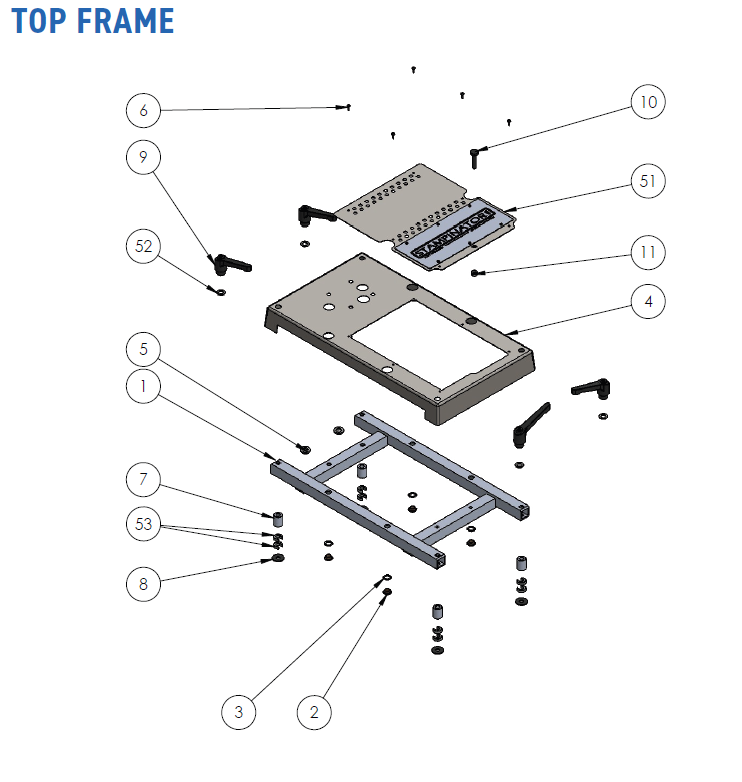

Frame, Top (STAMP480)

$4.10

1-2769

Bearing, High Temp Flanged 3/8 Shaft Bronze (STAMP480)

$5.05

1-2770

Washer, Steel, .063 x 0.51 ID x .688 OD (STAMP480)

$5.35

3-1370

Cover, Top Frame (STAMP480)

$4.00

2-1006-128

Washer, .869 OD x .512 ID x .125 (STAMP480)

$6.50

3-1011-108

Screw, Sheet Metal #8 x 1/2 (STAMP480)

$1.23

1-2773

Spacer, 3/8 ID x 3/4 OD x 1 1/4 Aluminum (STAMP480)

$15.30

2-1006-129

Washer, 3/8 x 1.0 x .084 Peek (STAMP480)

$2.15

1-2775

Handle, Adjustable (STAMP480)

$46.50

3-1011-303

Screw, Thumb 1/4-20 x 1 1/2 Knurled (STAMP480)

$14.05

1-2776

Shaft Collar 1/4 w/ Set Screw (STAMP480)

$6.75

3-1371

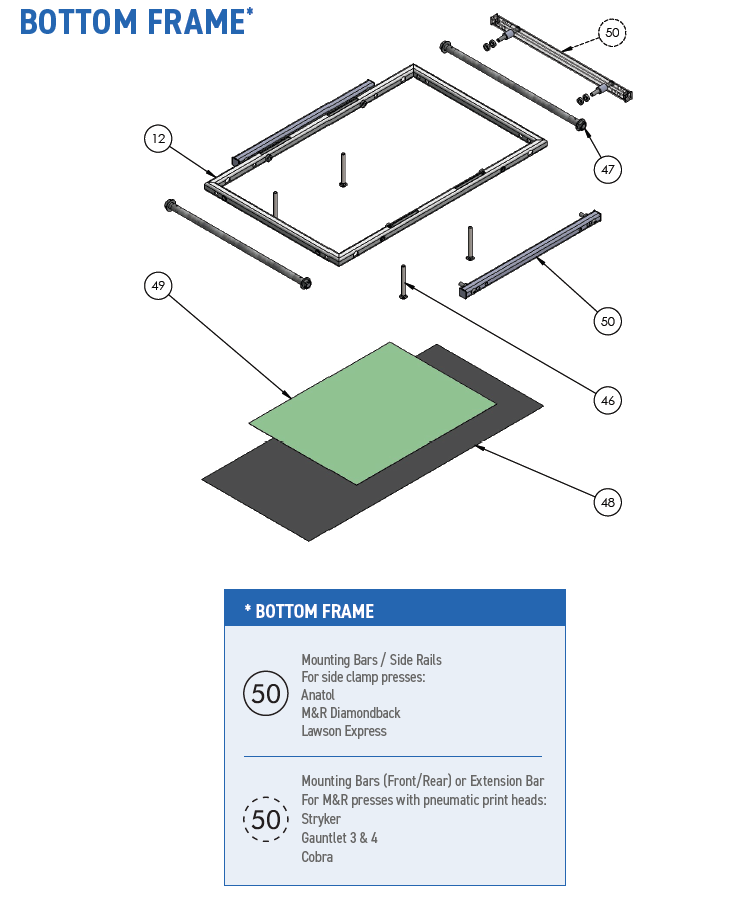

Frame, Bottom (STAMP480)

$4.65

2-1726

Spring Plate (STAMP480)

$4.65

2-1002-3

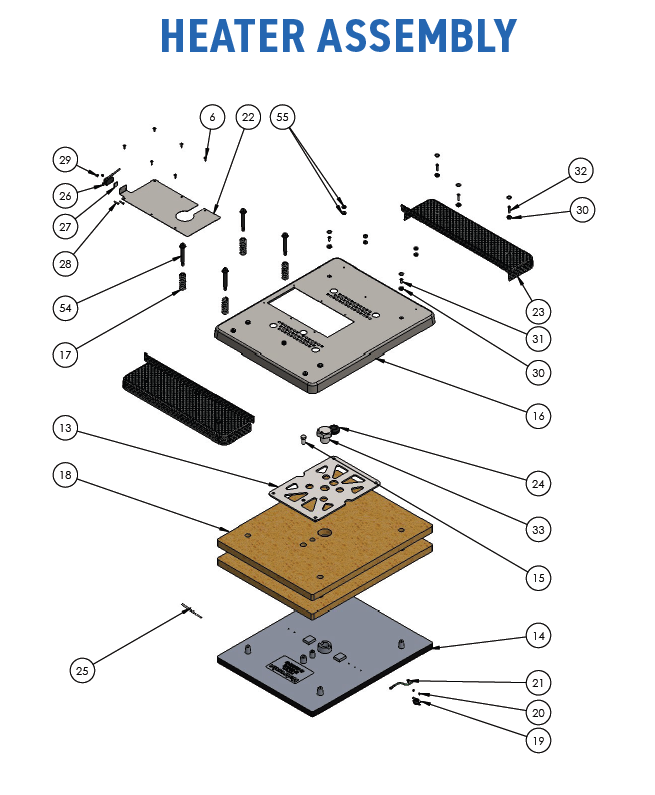

Heat Platen, 16x20 1800 W Milled (STAMP480)

$293.50

3-1011-41

Screw, Hex Cap HD 3/8-16 3/4 (STAMP480)

$1.23

3-1377

Heater Cover (STAMP480)

$4.65

1-2779

Spring, 2" Compression (STAMP480)

$4.20

1-2256

Insulation 16x20 (STAMP480)

$10.32

KIT 3-6968

Thermostat Disc Kit (STAMP480)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 x 1/4 (STAMP480)

$1.23

3-1011-87

Screw, SS #8-32 x 1/4 (STAMP480)

$1.23

3-1372

Heater Cover, Maintenance Cover (STAMP480)

$4.65

3-1373

Heater Cover, Perforated (STAMP480)

$4.65

1-2780

Grommet Rubber 1" (STAMP480)

$3.90

1-1272-1

Probe, Temperature (STAMP480)

$65.81

1-2790

Switch, Snap Acting (STAMP480)

$6.90

1-2781

Foam, .5 x .5 (STAMP480)

$3.65

3-1011-306

Screw, 4-40 x 5/8 SS Pan HD PH (STAMP480)

$3.55

2-1006-51

Nut, Lock Keps #4-40 (STAMP480)

$1.23

2-1006-133

Washer, #10 Black Finishing (STAMP480)

$1.23

3-1011-217

Screw, Phillips HD 10-24 x 5/8 (STAMP480)

$1.23

3-1011-155

Screw, Phillips Pan HD #8-32 x 3/4" Zinc (STAMP480)

$1.23

3-1011-311

Bolt 1" - 12 x 1" Lg GR8.8 ZP (STAMP480)

$4.65

4-1190

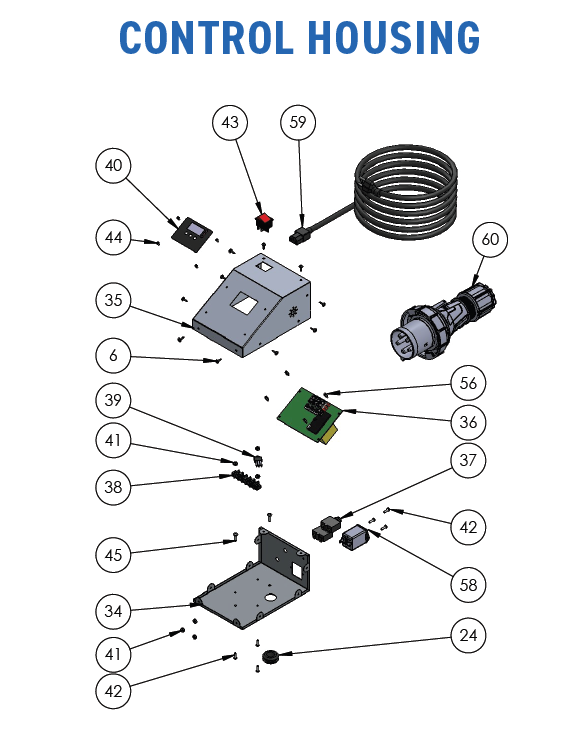

Control Housing Lower, 120V (STAMP480)

$4.65

4-1191

Control Housing Lower, 240V (STAMP480)

$4.65

4-1192

Control Housing Face (STAMP480)

$4.65

1-2129

Control Board (STAMP480)

$219.52

1-1331-2

Breaker, Circuit, 10 AMP, 240 v (STAMP480)

$21.84

1-1331-3

Breaker, Circuit, 20 AMP, 120 v (STAMP480)

$21.84

1-1290

TERMINAL BLOCK 5 POSITION (STAMP480)

$8.51

2-1675

Triac Assembly (STAMP480)

$37.12

1-2018-2G

Overlay, Controller (STAMP480)

$6.12

2-1006-50

Nut, Lock Hex Keps #6-32 (STAMP480)

$3.20

3-1011-19

Screw, PH Pan HD Zinc #6-32 x 1/2 (STAMP480)

$1.23

1-2087

Switch, On/Off Lighted (STAMP480)

$20.38

3-1011-278

Screw, Pan HD PH #4-40 x 1/4 (STAMP480)

$1.23

3-1011-307

Screw, Pan HD PH, SS, #10-240x 5/8 (STAMP480)

$1.23

3-1011-308

Bolt, .375 x 4 Carriage SS (STAMP480)

$6.55

3-1374

Teflon Tensioner (STAMP480)

$4.65

1-2791

Non Stick Sheet (STAMP480)

$29.25

1-2742

Silicone Pad R10404M (STAMP480)

$230.00

3-1375

Mounting Bar (STAMP480)

$4.65

3-1376

Top Frame Maintenance Cover (STAMP480)

$4.65

2-1006-131

Washer, 3/8" 316 SS (STAMP480)

$3.85

1-2774-1

C Spacer, 3/8 x .25 Alum (STAMP480)

$5.05

3-1011-312

Bolt, Flanged Shoulder 2.25" (STAMP480)

$4.65

2-1006-132

Washer, #8 Plastic (STAMP480)

$1.23

1-2782

Standoff, Male-Female Threaded Hex (STAMP480)

$5.30

2-1723

Wire Kit (STAMP480)

$35.00

1-2783

Power Inlet and Filter 120V (STAMP480)

$53.05

1-2490

Power Inlet and Filter, 20A 240V (STAMP480)

$30.08

2-1724

Power Cord, Locking 12' 120V (STAMP480)

$12.00

1-2796

Power Cord, Locking 12' 230V EU (STAMP480)

$12.00

2-1725

Power Cord, Locking 12' 240V (STAMP480)

$12.00

1-2792

Plug, Power Twist (STAMP480)

$4.65
