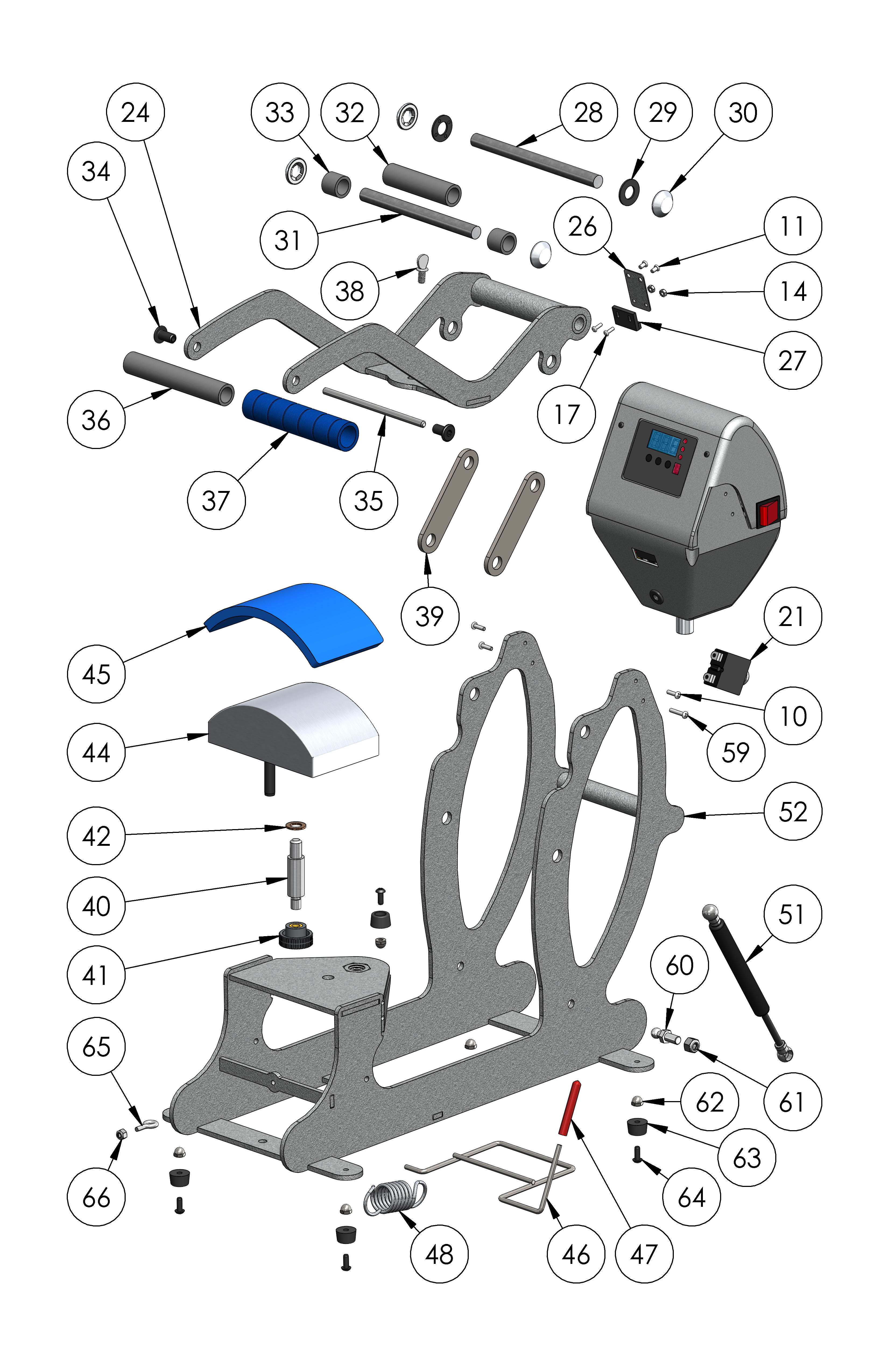

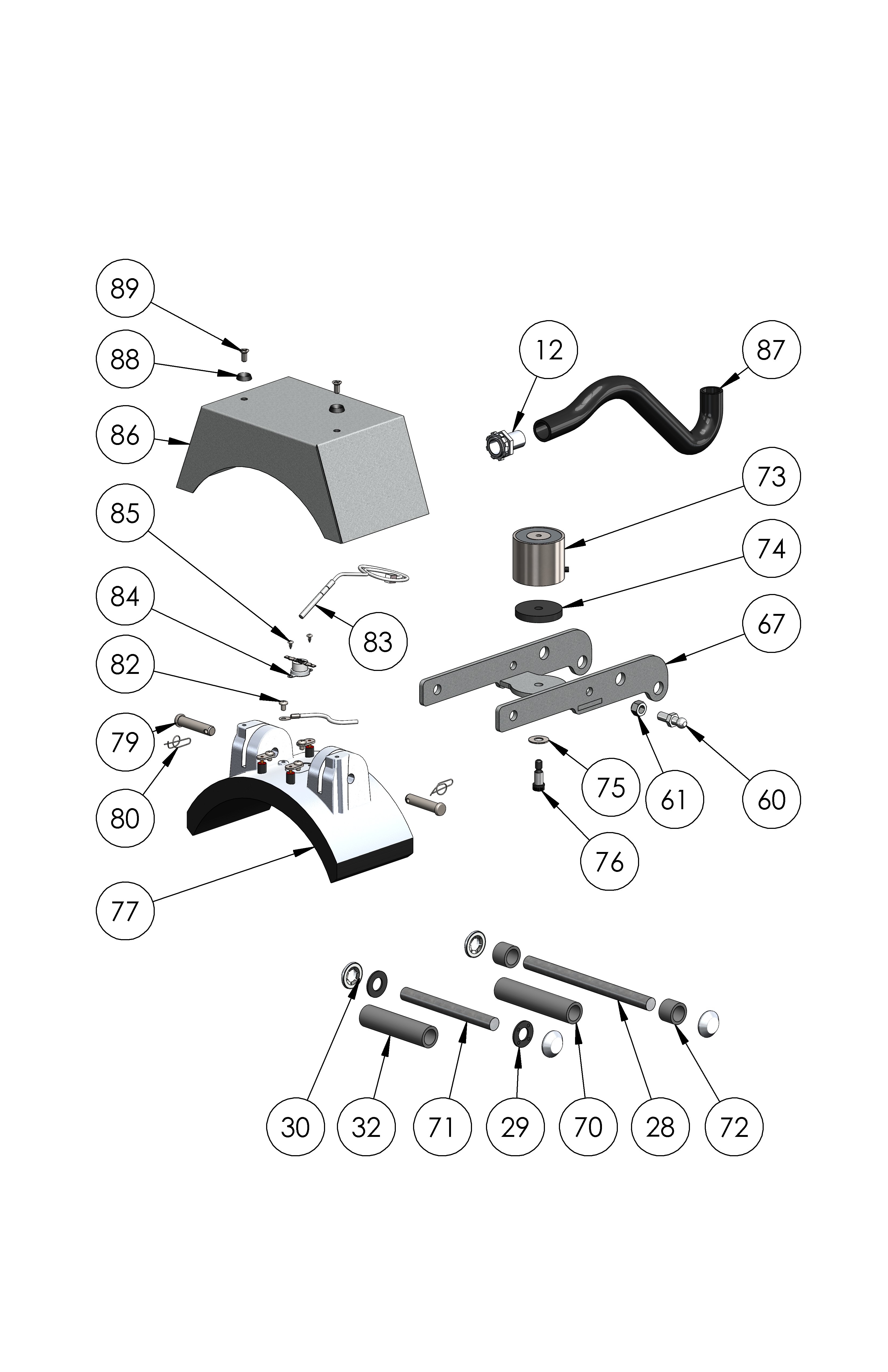

Hotronix Cap Press

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

4-1172-S

Control Housing (STXC)

$24.27

1-2018-1

Screen Overlay (STXC)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (STXC)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (STXC)

$3.80

2-1006-50

Nut, #6-32 Hex with Lockwasher (STXC)

$3.20

3-1011-130

Screw, Pan Phillips #4-40 x 1" (STXC)

$1.23

1-1759

IEC Power Inlet (STXC)

$3.80

Kit 3-6966

On/Off Power Switch Kit (STXC)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (STXC)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (STXC)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (STXC)

$20.16

KIT 3-6945

SSTT Controller Assembly (STXC)

$219.51

2-1006-51

Nut, #4-40 with Tooth Washer (STXC)

$1.23

2-1661

Controller Bracket (STXC)

$20.16

2-1675

Triac (STXC)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (STXC)

$1.23

1-1290

Terminal Block (STXC)

$8.51

1-1211

Proximity Switch (STXC)

$30.93

1-2317

Circuit Breaker 5 AMP (STXC)

$21.84

KIT 3-6910

Handle Assembly (STXC)

$76.42

1-2085-3

Proximity Magnet Bracket (STXC)

$9.71

1-1219

Proximity Magnet (STXC)

$10.32

2-1055-26

Steel Pin 1/2" dia. 6.45 in. (STXC)

$2.92

1-1048-3

Washer, 1/2" Nylon (STXC)

$1.23

1-1107-1

Hub Cap 1/2" (STXC)

$0.86

2-1055-9

Steel Pin 1/2" dia. 5 7/8 in. (STXC)

$2.92

1-1049-1

PVC Spacer 1/2" I.D. 3.30 in. (STXC)

$2.92

1-1049-14

PVC Spacer 1/2" I.D. .7 in. (STXC)

$2.92

2-1006-2

JCN Nut 1/4"-20 (STXC)

$2.92

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STXC)

$2.92

1-1049-11

PVC Spacer 1/2" I.D. x 5" (STXC)

$3.80

1-2115

Foam Grip (Blue) (STXC)

$7.29

3-1011-232

Shipping Bolt (STXC)

$2.92

KIT 3-6909

Lift Link Set (STXC)

$31.24

1-1023

Hotronix Cap - Adjustment Spindle

$12.43

1-1095

Pressure Adjustment Knob (STXC)

$3.85

1-1051

Bronze Washer (STXC)

$2.92

2-1669

Cap Mandrel (STXC)

$27.25

1-2137

Silicone Pad Cap Blue (STXC)

$24.75

2-1042-1

Cap Hold Down- Includes Vinyl Handle Cover #47 (STXC)

$21.84

1-1073

Spring-Cap Hold Down (STXC)

$7.12

1-2246

Gas Spring (STXC)

$39.11

KIT 3-6907

Base Casting (STXC)

$184.70

3-1011-252

Screw, Pan Phillips #6-32 x 3/4" (STXC)

$1.23

1-1939

Ball Stud 10mm (STXC)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (STXC)

$3.36

3-1011-182

Acorn Hex Nut 10-32 (STXC)

$1.23

1-1256

Rubber Foot (STXC)

$1.23

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (STXC)

$1.23

1-1085

Eye Bolt (STXC)

$2.92

2-1006-56

Nylon Nut (STXC)

$3.36

KIT 3-6908

STX Cap Heater Arm (STXC)

$36.97

1-1049-5

PVC Spacer 1/2" I.D. 3.80 in. (STXC)

$2.92

2-1055-29

Steel Pin. 1/2" x 4.69" (STXC)

$2.92

1-1049-3

PVC Spacer, 1/2" x 5/8" (STXC)

$2.92

1-1945-1

Electromagnet (STXC)

$63.07

1-2133

Silicone Pad 5/16" I.D. x 1 3/4" O.D. (STXC)

$2.92

2-1006-46

Washer, 3/8" SAE Narrow (STXC)

$2.92

3-1011-233

Screw, Shoulder 5/16" x 1/2" w/ 1/4"-20 Thread (STXC)

$2.92

1-2253

Heat Platen (STXC)

$175.31

1-1017-2

Clevis Pin 3/8" x 1-5/8" (STXC)

$4.89

1-1043-2

Retaining Clip, Rue Ring (STXC)

$2.92

3-1011-87

Screw, SS Phillips #8-32 x 1/4" (STXC)

$1.23

1-1272-1

Temperature Probe (STXC)

$65.81

Kit 3-6968

Thermostat Disc Kit (STXC)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 x 1/4" (STXC)

$1.23

2-1663

Heat Platen Cover Cap (STXC)

$40.93

2-1048-3

Conduit 12" (STXC)

$20.16

1-1063

Washer, Plastic Finishing (STXC)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (STXC)

$1.23

2-1671

200

Power Cord 120V (STXC)

$12.00

1-2186

201

Power Cord 240V (STX)

$12.00

1-1279

203

Lower Platen Spacer (STX)

$12.14

KIT 3-6924

204

Platen Lift Kit (STX)

$15.75

1-2367-1

205

Quick Change Keyway (STX)

$7.80

3-1011-127

206

Screw, Machine #8-32 x 3/8” Black Oxide (STX)

$1.23
