Parts

Heat Press Support

Select Heat Press

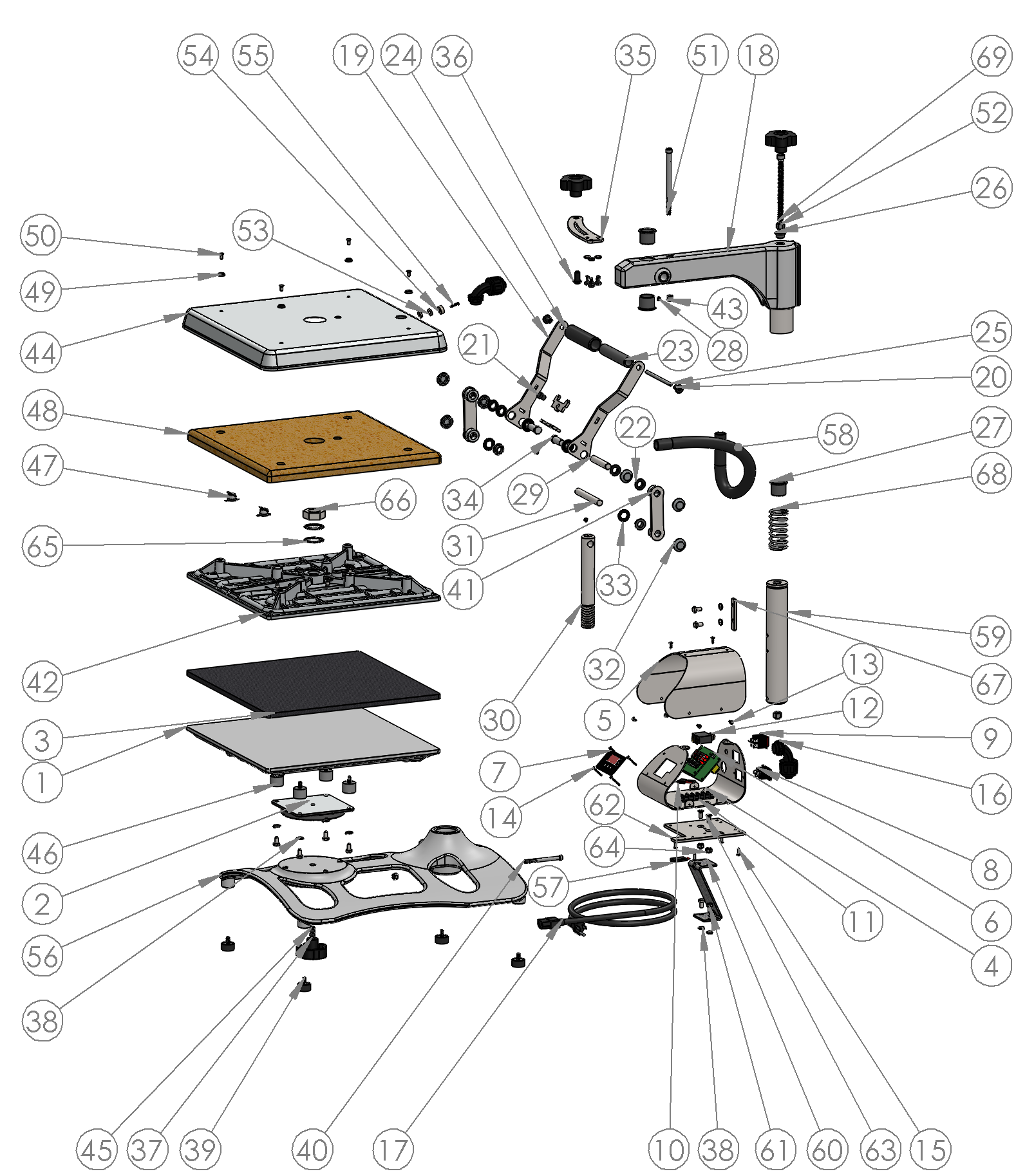

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

A2Z

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

3-1384

Lower Platen 15x15 (A2Z15)

$101.00

3-1336-1

Skinny Adapter Plate (A2Z15)

$34.61

1-2622

Silicone Pad 15x15 Black (A2Z15)

$30.00

1-2595

Control Cradle (A2Z15)

$24.85

1-2594

Control Cover (A2Z15)

$15.00

1-2604

Controller (Craft) (A2Z15)

$46.72

1-2623

Screen Overlay (A2Z15)

$5.00

1-1759

IEC Power Inlet (A2Z15)

$3.80

KIT 3-6966

On/Off Power Switch Kit (A2Z15)

$23.38

2-1675

Triac (A2Z15)

$37.12

1-1290

Terminal Block (A2Z15)

$8.51

1-1331-3

Circuit Breaker 20 AMP (A2Z15)

$21.81

3-1011-19

Screw, Machine #6-32 x 1/2"(A2Z15)

$1.23

3-1011-130

Screw, Pan Phillips #4-40 x 1" (A2Z15)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4” (A2Z15)

$1.23

1-2618

Conduit Fitting, 1/2" Elbow (A2Z15)

$11.57

2-1671

Power Cord 120V (A2Z15)

$12.00

1-2186

Power Cord 240V (A2Z15)

$12.00

3-1382

Arm Casting (A2Z15)

$73.50

2-1006-2

JCN Nut 1/4"-20 (A2Z15)

$2.92

1-1056

Rubber Foot, Small Push-In (A2Z15)

$2.78

1-2627

Nylon Bushing, Flanged 1/2" x 1/4" (A2Z15)

$1.50

1-1049-16

PVC Spacer, 1/2" x 4.5" (A2Z15)

$1.01

1-1540

Foam Grip (Black) (A2Z15)

$7.29

1-1042-2

Threaded Rod 1/4" -20 x 4.50 (A2Z15)

$2.92

1-2628

Nylon Bushing, Flanged 1/2" x 3/8" (A2Z15)

$1.58

1-2282

Bushing, Flange 1in (A2Z15)

$6.83

3-1011-258

Set Screw, 1/4"-20 x 1/4" (A2Z15)

$0.45

2-1055-30

Pin, 1/2" x 2 3/4" (A2Z15)

$7.98

2-1692

Heater Spindle (A2Z15)

$19.78

2-1055-31

Pin, 1/2" x 4" (A2Z15)

$7.98

1-1107-1

Hub Cap 1/2" (A2Z15)

$0.86

1-1048-3

Washer, 1/2" Nylon (A2Z15)

$1.23

1-2629

Zinc Plated Clevis Pin, 1/2"x1" (A2Z15)

$1.18

3-1011-41

3/8-16 x 3/4" HHCS Zinc (A2Z15)

$1.23

1-2621

Knob with Cap, 3/8"-16 Thread (A2Z15)

$5.00

2-1006-44

Washer, Spring Lock 1/4” (A2Z15)

$1.23

1-2620

Rubber Foot, 1" with 1/4"-20 Stud (A2Z15)

$0.81

3-1011-280

Screw, 1/4"-20 x3" Socket Head Cap, Zinc (A2Z15)

$1.76

Call for Availability

Pressure Link (A2Z15)

$8.75

5-1000-1

Heater, 15x15 (A2Z15)

$171.60

1-2630

Nylon Bushing, Flanged 7/16" x 3/8" (A2Z15)

$1.76

3-1351

Heater Cover (A2Z15)

$33.51

3-1011-281

Screw, 3/8"-16x2" Socket Head Cap (A2Z15)

$1.23

1-1056

Vibration Damper (A2Z15)

$2.78

Kit 3-6968

Thermostat Disc Kit (A2Z15)

$26.49

1-2257

Insulation 15 x 15 x 1/2" (A2Z15)

$8.95

1-1063

Washer, Plastic Finishing (A2Z15)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (A2Z15)

$1.23

3-1011-282

Screw, 5/16"-18 x5" Socket Head Cap, Zinc (A2Z15)

$3.40

2-1006-10

Nut, Hex 3/8"-16 Nylok (A2Z15)

$2.92

2-1006-111

Washer, 1/4" Faucet (A2Z15)

$1.23

1-2486

Magnet, Neodymium 0.625 x 0.25 w/ #6 Countersink (A2Z15)

$2.77

3-1011-154

Screw, #6 x 3/4" Self Tapping (A2Z15)

$0.23

3-1381

Base Casting (A2Z15)

$163.55

1-1211

Proximity Switch (A2Z15)

$30.93

2-1048-3

Conduit 12" (A2Z15)

$11.66

3-1387

Spine (A2Z15)

$18.00

1-2596

Control Box Support (A2Z15)

$6.38

3-1011-11

Screw, 1/4"-20 x 1/2" Hex Head Cap (A2Z15)

$0.21

3-1011-283

Screw, 1/4"-20 x 5/8" Flat Socket Head (A2Z15)

$0.71

2-1006-7

Nut, Hex 1/4" - 20 Nylok (A2Z15)

$3.80

2-1006-94

Washer, 1in Nord-Lock (A2Z15)

$10.41

2-1006-110

Nut, 1"-12 Thin Jam (A2Z15)

$5.73

1-2631

Spring, 1.4"x3" (A2Z15)

$3.00

3-1011-284

Set Screw, 5/16”-18 x 3/4” (A2Z15)

$5.00
