Maxx Cap

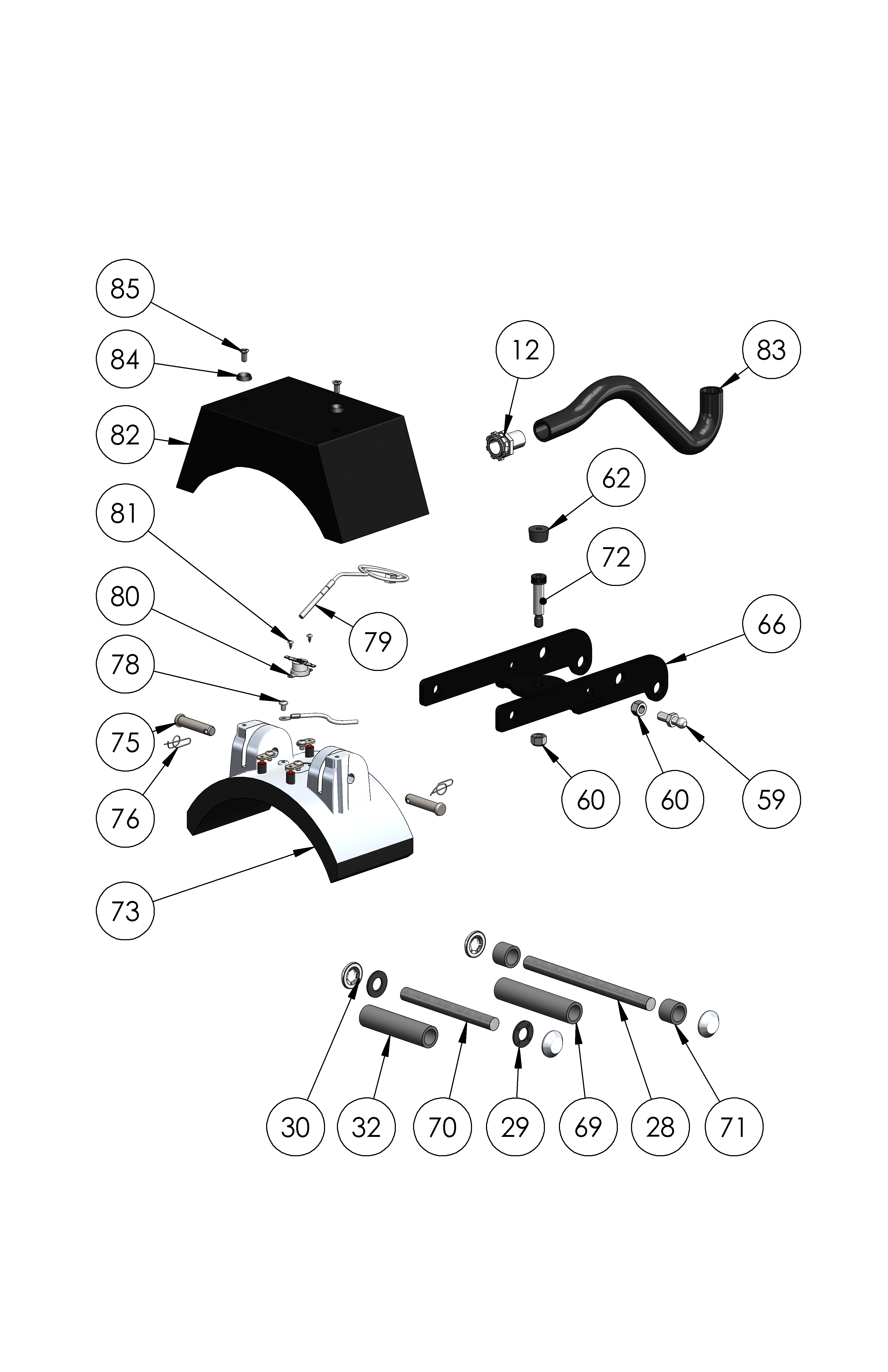

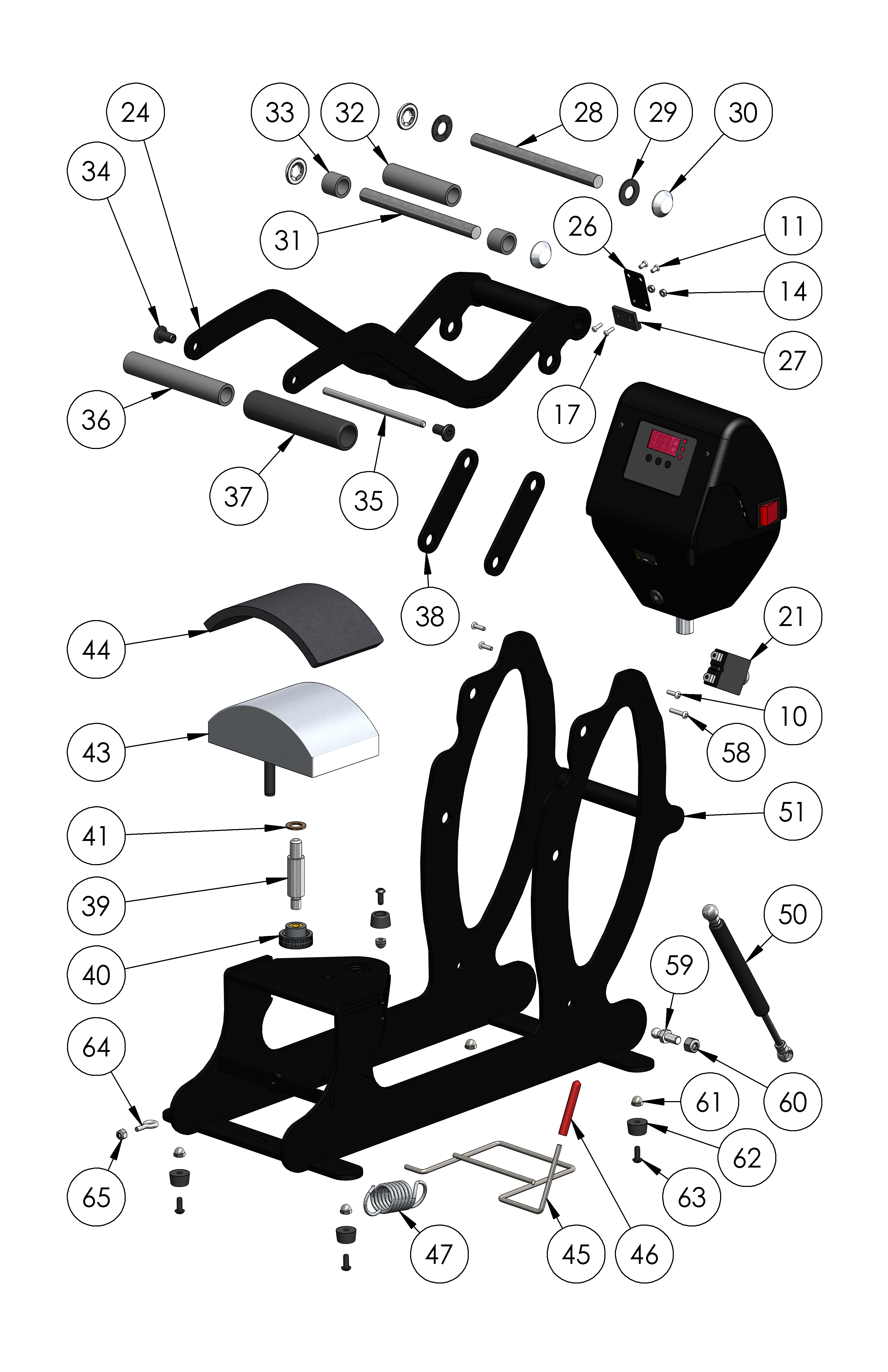

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

4-1172-B

Control Housing (MAXXC)

$24.27

1-2018

Screen Overlay (MAXXC)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (MAXXC)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (MAXXC)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (MAXXC)

$3.20

3-1011-130

Screw, Pan Phillips #4-40 x 1" (MAXXC)

$1.23

1-1759

IEC Power Inlet (MAXXC)

$3.80

Kit 3-6966

On/Off Power Switch Kit (MAXXC)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (MAXXC)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (MAXXC)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (MAXXC)

$20.16

KIT 3-6946

SSTT Controller Assembly (MAXXC)

$219.51

2-1006-51

Nut #4-40 with Tooth Washer(MAXX)

$1.23

2-1661

Controller Bracket (MAXXC)

$21.84

2-1675

Triac (MAXXC)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (MAXXC)

$1.23

1-1290

Terminal Block (MAXXC)

$8.51

1-1211

Proximity Switch (MAXXC)

$30.93

1-2317

Circuit Breaker 5 AMP (MAXXC)

$21.84

KIT 3-6910-1

Maxx Cap - Cap Handle

$184.70

1-2085-4

Magnet Bracket Maxx Cap (MAXXC)

$9.71

1-1219

Proximity Magnet (MAXXC)

$10.32

2-1055-26

Steel Pin 1/2" dia. 6.45 in. (MAXXC)

$2.92

1-1048-3

Washer, 1/2" Nylon (MAXXC)

$1.23

1-1107-1

Hub Cap 1/2" (MAXXC)

$0.86

2-1055-9

Steel Pin 1/2" dia. 5 7/8 in. (MAXXC)

$2.92

1-1049-1

PVC Spacer 1/2" I.D. 3.30 in. (MAXXC)

$2.92

1-1049-14

PVC Spacer, 1/2" x 6.45" (MAXXC)

$2.92

2-1006-2

JCN Nut 1/4"-20 (MAXXC)

$2.92

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (MAXXC)

$2.92

1-1049-11

PVC Spacer 1/2" I.D. x 5" (MAXXC)

$3.80

1-1540

Foam Grip (Black) (MAXXC)

$7.29

KIT 3-6957

Lift Link Set (MAXXC)

$34.50

1-1023

Adjustment Spindle (MAXXC)

$12.43

1-1095

Pressure Adjustment Knob (MAXXC)

$3.85

1-1051

Bronze Washer (MAXXC)

$2.92

2-1669

Cap Mandrel (MAXXC)

$27.25

1-1050

Silicone Pad Cap Gray (MAXXC)

$24.75

2-1042-1

Cap Hold Down (MAXXC)

$21.84

1-1089

Vinyl Handle (MAXXC)

$2.92

1-1073

Spring-Cap Hold Down (MAXXC)

$7.12

1-2246

Gas Spring (MAXXC)

$39.11

KIT 3-6907-1

Cap Base (MAXXC)

$184.70

3-1011-252

Screw, Pan Phillips #6-32 x 3/4" (MAXXC)

$1.23

1-1939

Ball Stud 10mm (MAXXC)

$2.92

2-1006-20

Nut, Hex Nylok 5/16"-18 (MAXXC)

$3.36

3-1011-182

Acorn Hex Nut 10-32 (MAXXC)

$1.23

1-1256

Rubber Foot (MAXXC)

$1.23

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (MAXXC)

$1.23

1-1085

Eye Bolt (MAXXC)

$2.92

2-1006-56

Nylon Nut (MAXXC)

$3.36

KIT 3-6908-1

Cap Heater Arm (MAXXC)

$36.97

1-1049-5

PVC Spacer 1/2" I.D. 3.80 in. (MAXXC)

$2.92

2-1055-29

Steel Pin. 1/2" x 4.69" (MAXXC)

$2.92

1-1049-3

PVC Spacer, 1/2" x 5/8" (MAXXC)

$2.92

3-1011-55

Screw, Shoulder 3/8" x 1-1/4" w/ 5/16" - 18 Thread (MAXXC)

$3.16

1-2253

Heat Platen (MAXXC)

$175.31

1-1017-2

Clevis Pin 3/8" x 1-5/8" (MAXXC)

$4.89

1-1043-2

Retaining Clip, Rue Ring (MAXXC)

$2.92

3-1011-87

Screw, SS Phillips #8-32 x 1/4" (MAXXC)

$1.23

1-1272-1

Temperature Probe (MAXXC)

$65.81

Kit 3-6968

Thermostat Disc Kit (MAXXC)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 x 1/4" (MAXXC)

$1.23

2-1663

Heat Platen Cover Cap (MAXXC)

$40.93

2-1048-3

Conduit 12" (MAXXC)

$20.16

1-1063

Washer, Plastic Finishing (MAXXC)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (MAXXC)

$1.23

2-1671

200

Power Cord 120V (MAXXC)

$12.00

1-2186

201

Power Cord 240V (MAXX)

$12.00

1-1279

203

Lower Platen Spacer (MAXX)

$12.14

KIT 3-6924

204

Platen Lift Kit (MAXX)

$15.75

1-2367-1

205

Quick Change Keyway (MAXX)

$7.80

1-2367-1

205

Quick Change Keyway (MAXX)

$7.80

3-1011-127

206

Screw, Machine #8-32 x 3/8” Black Oxide (MAXX)

$1.23
