Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

STX6 LOW RIDER 6 x 6

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

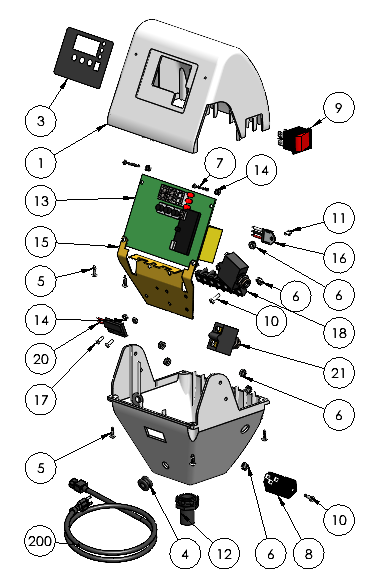

4-1172-S

Control Housing (STX6*)

$24.27

1-2018-1

Screen Overlay (STX6*)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (STX6*)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (STX6*)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (STX6*)

$3.20

3-1011-130

Screw, Pan Phillips #4-40 x 1" (STX6*)

$1.23

Kit 3-1326

IEC Power Inlet Kit (Single Breaker) (-2017)(STX6*)

$7.45

Kit 3-1327

IEC Power Inlet Kit (Dual Breaker) (2018+ Model) (STX6*)

$7.45

1-1759

IEC Power Inlet (STX6*)

$3.80

Kit 3-6966

On/Off Power Switch Kit (STX6*)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (STX6*)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (STX6*)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (STX6*)

$20.16

Kit 3-6945

SSTT Controller Assembly (STX6*)

$219.51

2-1006-51

Nut, #4-40 with Tooth Washer (STX6*)

$1.23

2-1661

Controller Bracket (STX6*)

$21.84

2-1675

Triac (STX6*)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (STX6*)

$1.23

1-1290

Terminal Block (STX6*)

$8.51

1-1211

Proximity Switch (STX6*)

$30.93

1-2317

Circuit Breaker 5 AMP (STX6*)

$21.84

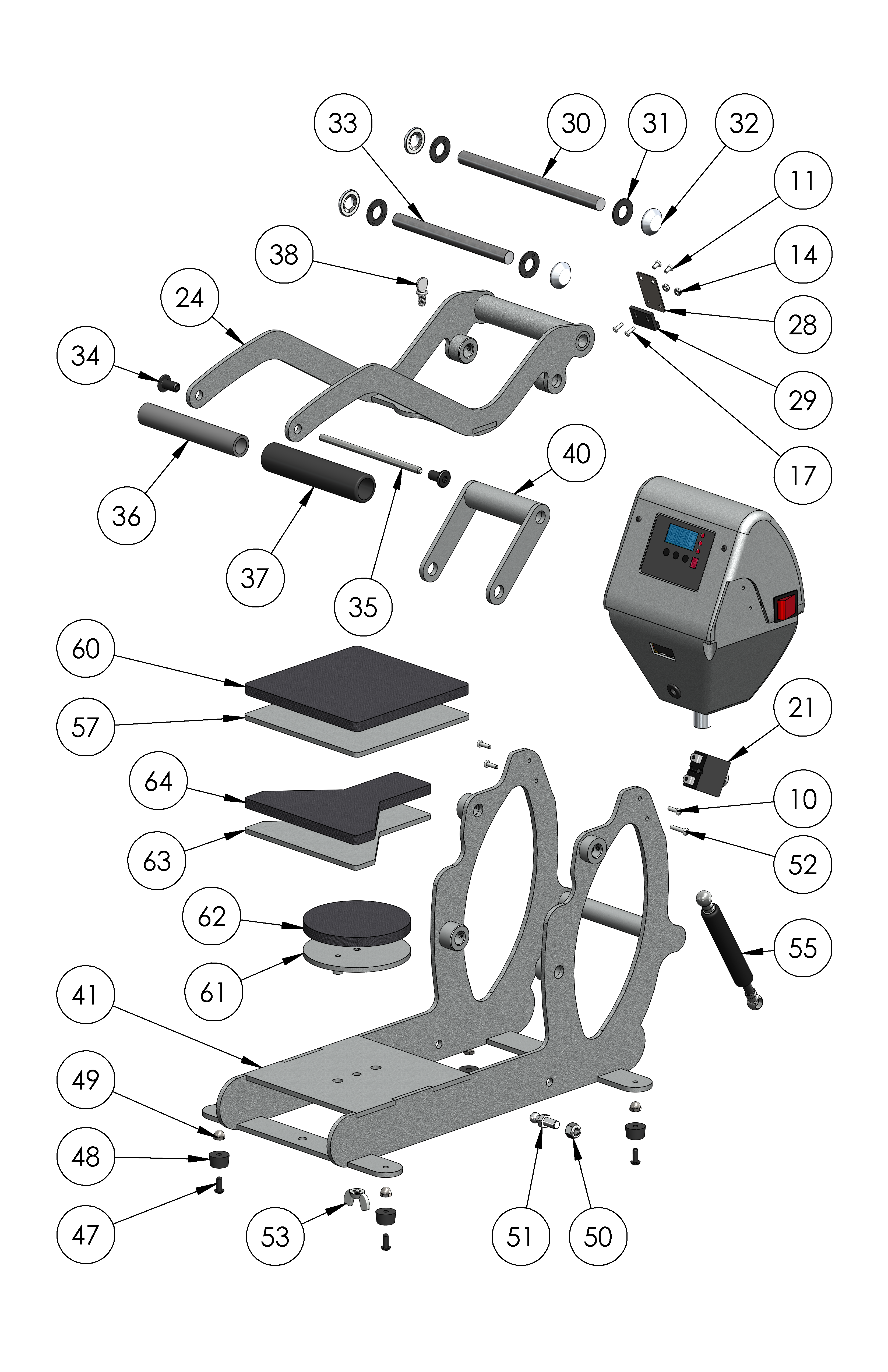

Kit 3-6910-2

Handle Assembly, STX LowRider (STX6*)

$76.42

1-2085-3

Proximity Magnet Bracket (STX6*)

$9.71

1-1211

Proximity Switch (STX6*)

$30.93

1-1219

Proximity Magnet (STX6*)

$10.32

2-1055-16

Steel Pin, 1/2" x 7-1/4" (STX6*)

$2.92

1-1048-3

Washer, 1/2" Nylon (STX6*)

$1.23

1-1107-1

Hub Cap 1/2" (STX6*)

$0.86

2-1055-9

Steel Pin, 1/2" x 5-7/8" (STX6*)

2-1006-2

JCN Nut 1/4"-20 (STX6*)

$2.92

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STX6*)

$2.92

1-1049-11

PVC Spacer 1/2" I.D. x 5" (STX6*)

$3.80

1-1540

Foam Grip (Black) (STX6*)

$7.29

3-1011-232

Shipping Bolt (Thumb Screw), 1/4"-20 x 1/2" (STX6*)

$2.92

Kit 3-6909-1

Pressure Link Weldment (STX6*)

$36.23

Kit 3-6907-2

Base, STX LowRider (STX6*)

$184.70

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (STX6*)

$1.23

1-1256

Rubber Foot (STX6*)

$1.23

3-1011-182

Acorn Hex Nut 10-32 (STX6*)

$1.23

2-1006-20

Nut, Hex Nylok 5/16"-18 (STX6*)

$3.36

1-1939

Ball Stud 10mm (STX6*)

$2.92

3-1011-252

Screw, Pan Phillips #6-32 x 3/4" (STX6*)

$1.23

2-1006-109

Wing Nut, 5/16"-18 (STX6*)

$4.73

1-2254

Gas Springs (STX6*)

$39.11

Kit 3-6911-1

Lower Platen, LowRider 6 x 6 (STX6*)

$65.67

1-2150

Silicone Pad, 6 x 6 Gray (STX6*)

$32.53

Kit 3-6963

Lower Platen, 4in Round (STX6*)

$250.00

1-2405

Silicone Pad, 4in Round Gray (STX6*)

$32.53

CALL TO CHECK AVAILABILITY

Lower Platen "Y" Shaped (STX6*)

$250.00

1-2406

Silicone Pad, "Y" (STX6*)

$32.53

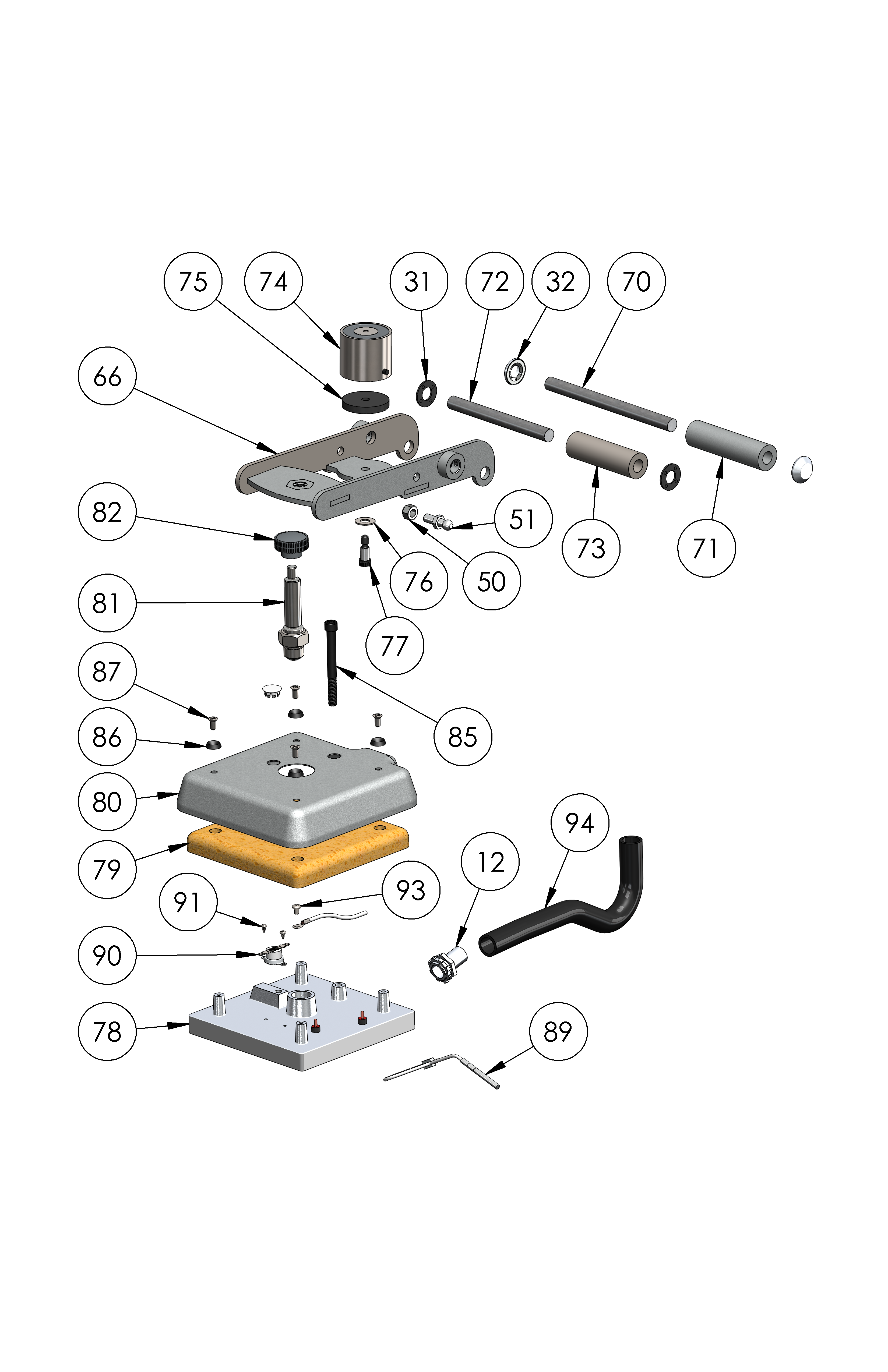

Kit 3-6912-1

Heater Arm Assembly (STX6*)

$36.97

2-1055-26

Steel Pin, 1/2" x 6.45" (STX6*)

$2.92

CALL TO CHECK AVAILABILITY

Shaft Collar, STX6LR Long (STX6*)

$0.00

2-1055-28

Steel Pin, 1/2" x 5.10" (STX6*)

$2.92

CALL TO CHECK AVAILABILITY

Shaft Collar (STX6*)

$7.44

1-1945-1

Electromagnet (STX6*)

$63.07

1-2133

Silicone Pad, 5/16" ID x 1-3/4" OD x 1/4" T (STX6*)

$2.92

2-1006-46

Washer, 5/16" SS (STX6*)

$2.92

3-1011-233

Screw, Shoulder 5/16" x 1/2" w/ 1/4"-20 Thread (STX6*)

$2.92

3-1334

Heat Platen 120V (STX6*)

$175.31

1-2327

Insulation 6 x 6 (STX6*)

$175.31

2-1662

Heat Platen Cover (STX6*)

$40.93

CALL TO CHECK AVAILABILITY

Adjustment Spindle (STX6*)

$24.84

1-1095

Pressure Adjustment Knob (STX6*)

$3.85

3-1011-227

Screw, Socket Head Cap 5/16"-18 x 3" (STX6*)

$3.22

1-1063

Washer, Plastic Finishing (STX6*)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (STX6*)

$1.23

1-2127

Plug, 9/16" Round Steel (STX6*)

$4.73

1-1272-1

Temperature Probe (STX6*)

$65.81

KIT 3-6968

Thermostat Disc Kit (STX6*)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 X 1/4" (STX6*)

$1.23

3-1011-87

Screw, SS Phillips #8-32 X 1/4" (STX6*)

$1.23

1-1048-2

Conduit 12" (STX6*)

$20.16

2-1671

200

Power Cord 120V (STX6*)

$12.00

1-2186

200

Power Cord 240V (STX6*)

$12.00
