Heat Press Support

Select Heat Press

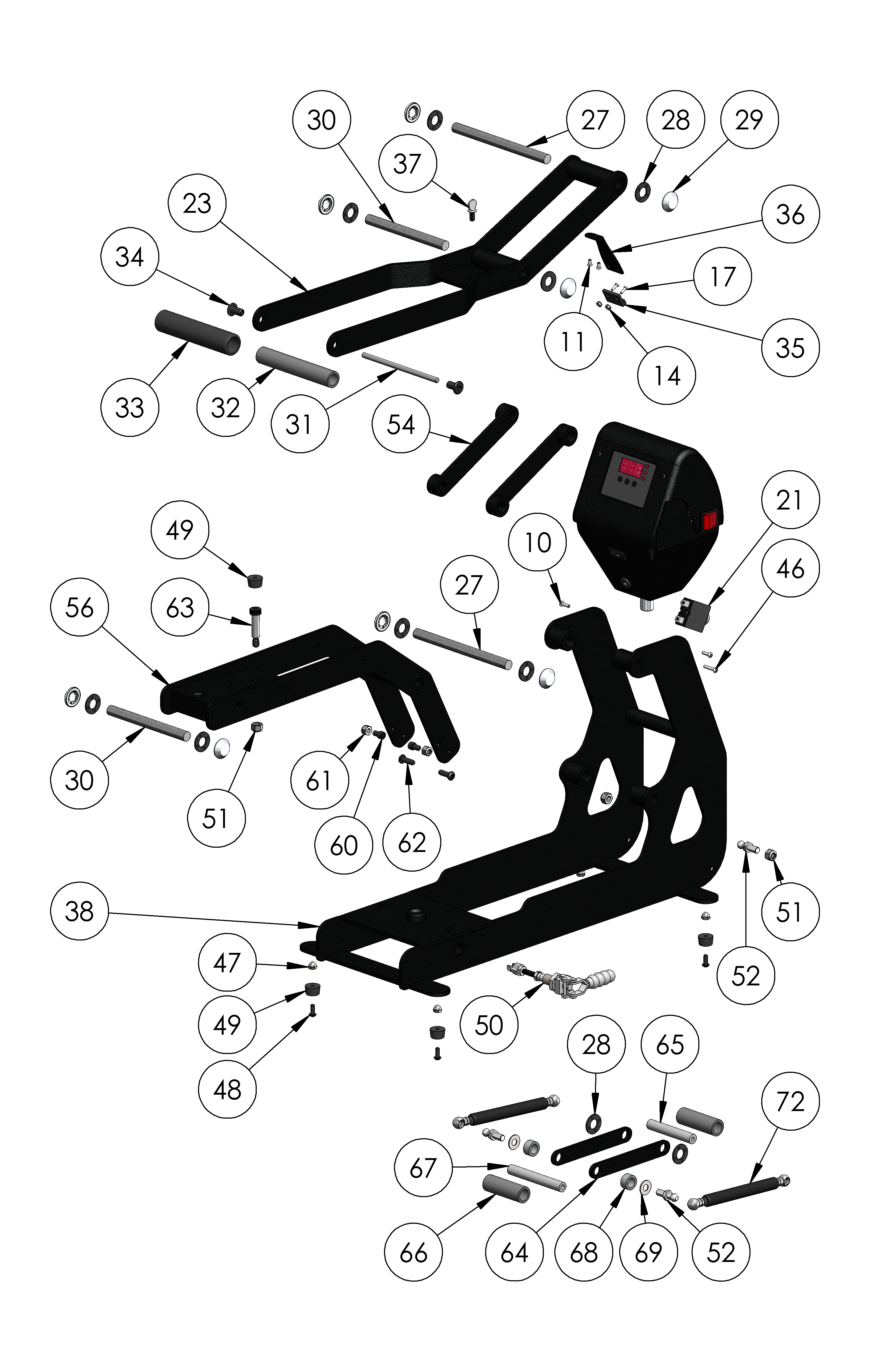

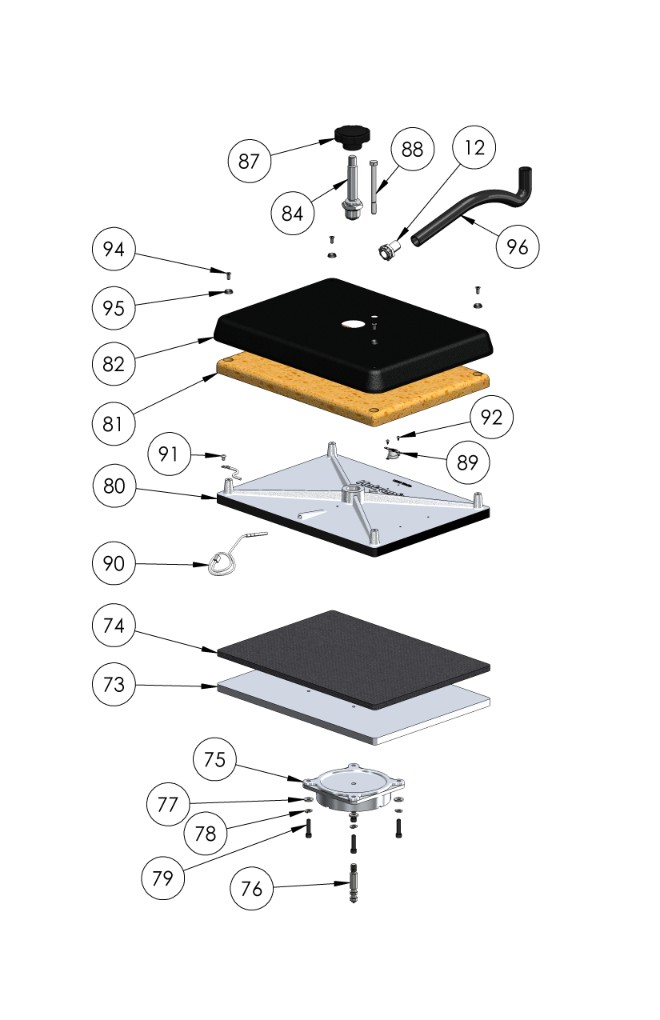

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Maxx 15" X 15" Digital Clam

PART REPLACEMENT GUIDES
(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)
DOWNLOAD GUIDE
  • QTY.
  • PART NUMBER
  • LOCATION #
  • NAME
  • PRICE

Select Parts

4-1172-B
1
Control Housing (MAXX)
$24.27
1-2018
3
Screen Overlay (MAXX)
$6.12
1-2105
4
Grommet, 9/32" ID 3/8" OD (MAXX)
$3.80
3-1011-235
5
Screw, Sheet Metal #6 x 1/2" (MAXX)
$1.23
2-1006-50
6
Nut, #6-32 Hex with Lockwasher (MAXX)
$3.20
3-1011-130
7
Screw, Pan Phillips #4-40 x 1" (MAXX)
$1.23
1-1759
8
IEC Power Inlet (MAXX)
$3.80
KIT 3-1327
8
IEC Power Inlet Kit (Dual Breaker) (2018+ Model) (MAXX)
$7.45
KIT 3-1326
8
IEC Power Inlet Kit (Single Breaker) (-2017) (MAXX)
$7.45
Kit 3-6966
9
On/Off Power Switch Kit (MAXX)
$23.38
3-1011-19
10
Screw, Machine #6-32 x 1/2" (MAXX)
$1.23
3-1011-25
11
Screw, Machine #6-32 x 1/4" (MAXX)
$1.23
1-1353
12
Conduit Fitting, 1/2" Topaz Straight Twist-On (MAXX)
$20.16
KIT 3-6946
13
SSTT Controller Assembly (MAXX)
$219.51
2-1006-51
14
Nut #4-40 with Tooth Washer(MAXX)
$1.23
2-1661
15
Controller Bracket (MAXX)
$21.84
2-1675
16
Triac (MAXX)
$37.12
3-1011-22
17
Screw, Machine #4-40 x 3/8" (MAXX)
$1.23
1-1290
18
Terminal Block (MAXX)
$8.51
1-1211
20
Proximity Switch (MAXX)
$30.93
1-1331-3
21
Circuit Breaker 20 AMP (MAXX)
$21.84
KIT 3-6904
23
Handle Assembly (16x20, 15x15, 11x15) (MAXX)
$97.41
1-2094
27
Steel Pin 1/2" D x 6.45" (MAXX)
$2.92
1-1048-3
28
Washer, 1/2" Nylon (MAXX)
$1.23
1-1107-1
29
Hub Cap 1/2" (MAXX)
$0.86
1-2093
30
Steel Pin, 1/2" x 5.375" (MAXX)
$2.92
1-1042-1
31
All Thread Pin 1/4-20 x 4 3/4" (MAXX)
$2.92
1-2096
32
PVC Spacer 1/2" I.D. x 5" (MAXX)
$3.80
1-1540
33
Foam Grip (Black) (MAXX)
$7.29
2-1006-2
34
JCN Nut 1/4"-20 (MAXX)
$2.92
1-1219
35
Proximity Magnet (MAXX)
$10.32
1-2085-1
36
Magnet Bracket (MAXX)
$9.71
3-1011-232
37
Shipping Bolt (MAXX)
$2.92
KIT 3-6901
38
Base Assembly 16x20, 15x15, 11x15 (MAXX)
$246.96
3-1011-252
46
Screw, Pan Phillips #6-32 x 3/4" (MAXX)
$1.23
3-1011-182
47
Acorn Hex Nut 10-32 (MAXX)
$1.23
3-1011-164
48
Screw, Button Socket Head #10-32 x 1/2" MAXX)
$1.23
1-1256
49
Rubber Foot (MAXX)
$1.23
1-2332
50
Quick Release Clamp (MAXX)
$26.25
2-1006-20
51
Nut, Hex Nylok 5/16"-18 (MAXX)
$3.36
1-1939
52
Ball Stud 10mm (MAXX)
$2.92
KIT 3-6951
54
Lift Link Set (MAXX)
$31.24
KIT 3-6903
56
Adjustment Arm Kit(MAXX)
$120.75
3-1011-215
60
Soc HD Cap Screw 1/4-20 x 3/8" (MAXX)
$1.23
2-1006-7
61
Nut, Hex 1/4" - 20 Nylok (MAXX)
$3.80
3-1011-106
62
Screw, Button Socket Head 1/4" - 20 x 3/4" (MAXX)
$2.92
3-1011-55
63
Screw, Shoulder 3/8" x 1-1/4" w/ 5/16" - 18 Thread (MAXX)
$3.16
KIT 3-6956
64
Bridle Link Kit (MAXX)
$29.75
1-2091
65
Pin, 1/2" x 3" w/ 1/4-20 Threads (MAXX)
$8.51
1-2098
66
PVC Spacer 1/2" I.D. x 2.48" (MAXX)
$3.80
1-2092
67
Pin, 1/2" x 3-5/8" w/ 5/16"-18 Threads (MAXX)
$8.51
1-2114
68
Steel Spacer (MAXX)
$7.29
2-1006-46
69
Washer, 3/8" SAE Narrow (MAXX)
$2.92
1-2243
72
Gas Spring - 16x20 (MAXX)
$39.11
1-2246
72
Gas Spring - 15x15 & 11x15 (MAXX)
$39.11
2-1029-HD
73
Lower Platen, 16 x 20 (MAXX)
$157.67
3-1086
73
Lower Platen, 15 x 15 (MAXX)
$162.06
3-1199-1
73
Lower Platen 11 x 15 (MAXX)
$89.04
1-1473
74
Silicone Pad 15 x 15 Gray (MAXX)
$105.01
1-1875
74
Silicone Pad 11 x 15 Gray (MAXX)
$104.57
1-1011
74
Silicone Pad, 16 x 20 (Gray) (MAXX)
$157.67
3-1336
75
Adapter Plate (MAXX)
$34.61
1-2215
76
Quick Release Pin (MAXX)
$10.41
2-1006-25
77
Washer, Flat 1/4" SAE (MAXX)
$1.23
2-1006-44
78
Washer, Spring Lock 1/4" (MAXX)
$1.23
3-1011-191
79
Screw, Socket Head Cap 1/4" - 20 x 1" (MAXX)
$2.92
2-1002-3
80
Heat Platen 16 x 20 1800W Milled (No Ears) (MAXX)
$293.50
3-1320
80
Heat Platen 15 x 15 (MAXX)
$203.99
3-1199
80
Heat Platen 11 x 15 (MAXX)
$180.31
1-2258
81
Insulation 11 x 15 (MAXX)
$7.95
1-2257
81
Insulation 15 x 15 (MAXX)
$8.95
1-2256
81
Insulation, 16 x 20 (MAXX)
$10.32
3-1332B
82
Heat Platen Cover 16 x 20 (MAXX)
$78.23
3-1337B
82
Heat Platen Cover 15 x 15 (MAXX)
$57.38
3-1331B
82
Heat Platen Cover 11 x 15 (MAXX)
$38.82
2-1081
84
Adjustment Spindle Kit (MAXX)
$36.06
1-1012
87
Pressure Adjustment Knob (MAXX)
$11.13
3-1011-63
88
Safety Bolt 5/16-18 x 3 1/2" (MAXX)
$2.92
3-1011-251
88
Safety Bolt 5/16-18 x 4" (11x15 & 15x15 ) (MAXX)
$2.92
Kit 3-6968
89
Thermostat Disc Kit (MAXX)
$26.49
1-1272-1
90
Temperature Probe (MAXX)
$65.81
3-1011-87
91
Screw, SS Phillips #8-32 x 1/4" (MAXX)
$1.23
3-1011-98
92
Screw, SS Sheet Metal #4 x 1/4" (MAXX)
$1.23
3-1011-217
94
Screw, Flat Head Phillips #10-24 x 7/16" (MAXX)
$1.23
1-1063
95
Washer, Plastic Finishing (MAXX)
$1.23
2-1048-3
96
Conduit 12" (MAXX)
$20.16
1-1940
97
Conduit Fitting, 1/2" Elbow (MAXX)
$11.66
2-1671
200
Power Cord 120V (MAXX)
$12.00
1-2186
201
Power Cord 240V (MAXX)
$12.00
1-1279
203
Lower Platen Spacer (MAXX)
$12.14
KIT 3-6924
204
Platen Lift Kit (MAXX)
$15.75
1-2367-1
205
Quick Change Keyway (MAXX)
$7.80
1-2367-1
205
Quick Change Keyway (MAXX)
$7.80
3-1011-127
206
Screw, Machine #8-32 x 3/8” Black Oxide (MAXX)
$1.23
