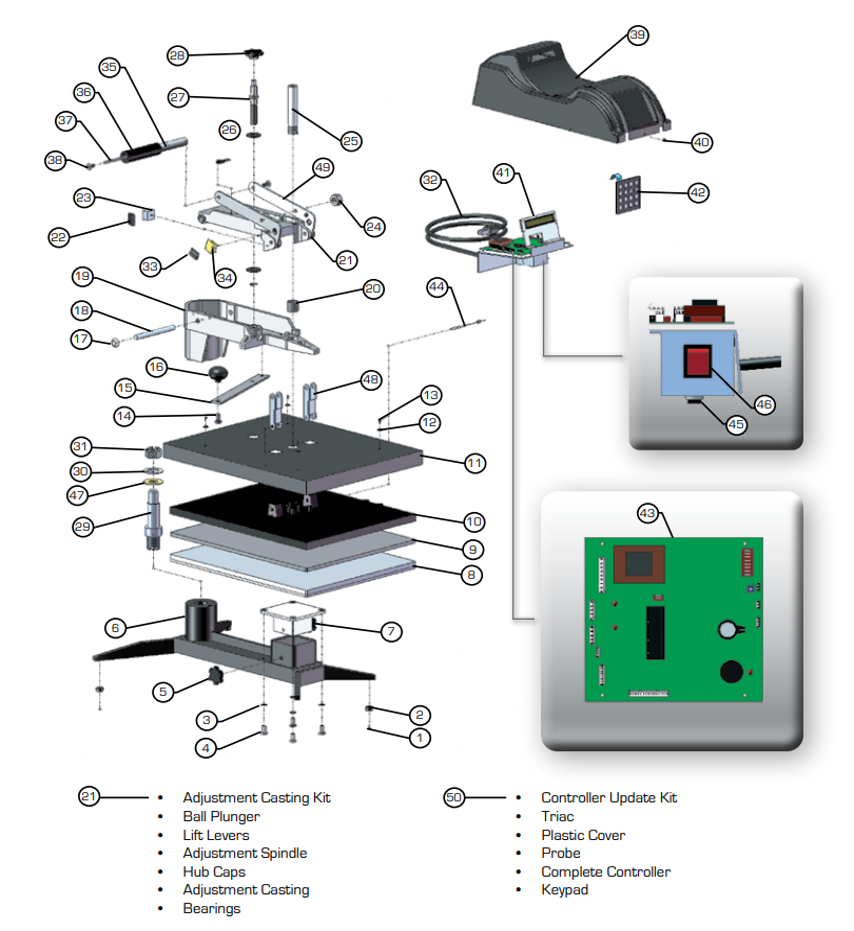

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Swinger (XS)

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

3-1011-164

Screw, Button Socket Head #10-32 x 1/2"(XS)

$1.23

1-1256

Rubber Foot (XS)

$1.23

2-1006-44

Washer, Spring Lock 1/4” (XS)

$1.23

3-1011-106

Screw, Socket Head 1/4”-20 x 3/4” (XS)

$3.80

1-1016

Platen Thumb Screw (XS)

$10.70

4-1003

Swinger Base (XS)

$220.38

2-1033

Post Casting (XS)

$32.36

2-1029-HD

Lower Platen, 16 x 20 (XS)

$157.67

1-1011

Silicone Pad, 16 x 20 (Gray) (XS)

$157.67

2-1002

Heat Platen 16 x 20 1800W - NO WIRING (XS)

$293.99

2-1003

Heat Platen Cover (XS)

$47.33

1-1063

Washer, Plastic Finishing (XS)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XS)

$1.23

Obsolete

3-1011-41 OBSOLETE

Hex Soc Screw HD 3/8-16 x 3/4” (XS)

$0.00

Obsolete

Kit 3-6915 OBSOLETE

Swing Arm (XS)

$0.00

1-1054

Swing Knob- Black 2in Threaded (XS)

$7.29

1-1107-1

Hub Cap 1/2" (XS)

$0.86

Obsolete

1-1004 OBSOLETE

Steel Pin 1/2” x 5 7/8" (XS)

$0.00

Obsolete

Kit 3-1255 OBSOLETE

Top Casting (XS)

$0.00

Obsolete

1-1013 OBSOLETE

Guide Tube Bushing (XS)

$0.00

Obsolete

Kit 3-1216 OBSOLETE

Adjustment Casting Kit (XS)

$0.00

1-1211

Proximity Switch (XS)

$30.93

Obsolete

1-1277 OBSOLETE

Proximity Bracket (XS)

$0.00

Obsolete

1-1039 OBSOLETE

Ball Plunger (XS)

$0.00

Obsolete

1-1005 OBSOLETE

Guide Tube (XS)

$0.00

1-1059

Triac (XS)

$37.12

Obsolete

Kit 3-1220 OBSOLETE

Adjustment Spindle Kit (XS)

$0.00

1-1012

Pressure Adjustment Knob (XS)

$11.13

Obsolete

2-1005 OBSOLETE

Main Spindle (XS)

$0.00

Obsolete

2-1006-21 OBSOLETE

Washer, Type A 1” (XS)

$0.00

Obsolete

2-1006-1 OBSOLETE

Nut, Hex Slotted Castle (XS)

$0.00

2-1013-1

Power Cord 120V (XS)

$12.00

1-1219

Proximity Magnet (XS)

$10.32

Obsolete

1-1278 OBSOLETE

Magnet Bracket (XS)

$0.00

Obsolete

1-1049-6 OBSOLETE

PVC Spacer 1/2” x 4.90 (XS)

$0.00

1-1540

Foam Grip (Black) (XS)

$7.29

1-1042-1

All Thread Pin 1/4-20 x 4 3/4” (XS)

$2.92

2-1006-2

JCN Nut 1/4"-20 (XS)

$2.92

Obsolete

3-1013 OBSOLETE

Plastic Cover (XS)

$0.00

Obsolete

3-1011-127 OBSOLETE

Cover Screw 8-32 x 3/8" (XS)

$0.00

1-1031

LCD Display (XS)

$102.32

2-1014

Keypad (XS)

$106.77

1-2021

Control Board (XS)

$325.00

1-1272-1

Temperature Probe (XS)

$65.81

1-1331-3

Circuit Breaker 20 AMP (XS)

$21.84

1-2087

On/Off Power Switch (XS)

$20.38

1-1015

Washer, Bronze (XS)

$2.92

1-1024

Lift Links (Qty 2) (XS)

$8.75

Obsolete

Kit 3-1262 OBSOLETE

Lift Handle Assembly (XS)

$0.00

Kit 3-1226

Controller Update Kit (XS)

$472.98
