Hotronix 16" X 16" Auto Clam

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

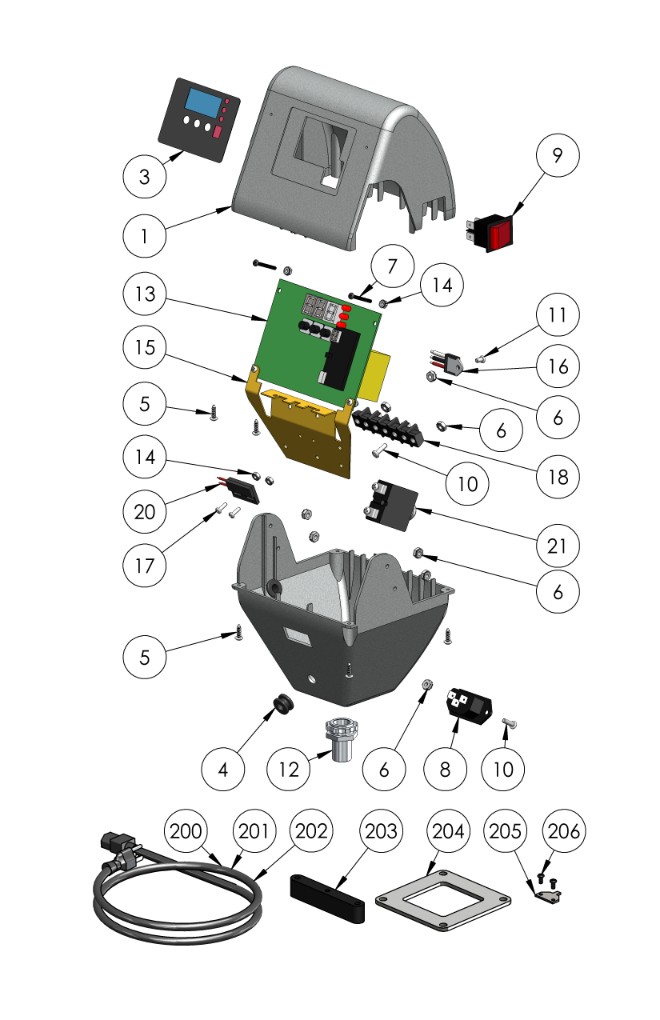

4-1172-S

Control Housing (STX)

$24.27

1-2018-1

Screen Overlay (STX)

$6.12

1-2105

Grommet, 9/32" ID 3/8" OD (STX)

$3.80

3-1011-235

Screw, Sheet Metal #6 x 1/2" (STX)

$3.80

2-1006-50

Nut, #6-32 Hex with Lockwasher (STX)

$3.20

3-1011-130

Screw, Pan Phillips #4-40 x 1" (STX)

$1.23

1-1759

IEC Power Inlet (STX)

$3.80

KIT 3-1327

IEC Power Inlet Kit (Dual Breaker) (2018+ Model) (STX)

$7.45

KIT 3-1326

IEC Power Inlet Kit (Single Breaker) (-2017) (STX)

$7.45

Kit 3-6966

On/Off Power Switch Kit (STX)

$23.38

3-1011-19

Screw, Machine #6-32 x 1/2" (STX)

$1.23

3-1011-25

Screw, Machine #6-32 x 1/4" (STX)

$1.23

1-1353

Conduit Fitting, 1/2" Topaz Straight Twist-On (STX)

$20.16

KIT 3-6945

SSTT Controller Assembly (STX)

$219.51

2-1006-51

Nut, #4-40 with Tooth Washer (STX)

$1.23

2-1661

Controller Bracket (STX)

$21.84

2-1675

Triac (STX)

$37.12

3-1011-22

Screw, Machine #4-40 x 3/8" (STX)

$1.23

1-1290

Terminal Block (STX)

$8.51

1-1211

Proximity Switch (STX)

$30.93

1-1331-3

Circuit Breaker 20 AMP (STX)

$21.84

KIT 3-6930

Handle Assembly (STX)

$97.41

1-2094

Steel Pin 1/2" D x 6.45" (STX)

$2.92

1-1048-3

Washer, 1/2" Nylon (STX)

$1.23

1-1107-1

Hub Cap 1/2" (STX)

$0.86

1-2093

Steel Pin, 1/2" x 5.375"(STX)

$2.92

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STX)

$2.92

1-2096

PVC Spacer 1/2" I.D. x 5" (STX)

$3.80

1-2115

Foam Grip (Blue) (STX)

$7.29

2-1006-2

JCN Nut 1/4"-20 (STX)

$2.92

1-1219

Proximity Magnet (STX)

$10.32

1-2085

Proximity Magnet Bracket (STX)

$9.71

3-1011-232

Shipping Bolt (STX)

$2.92

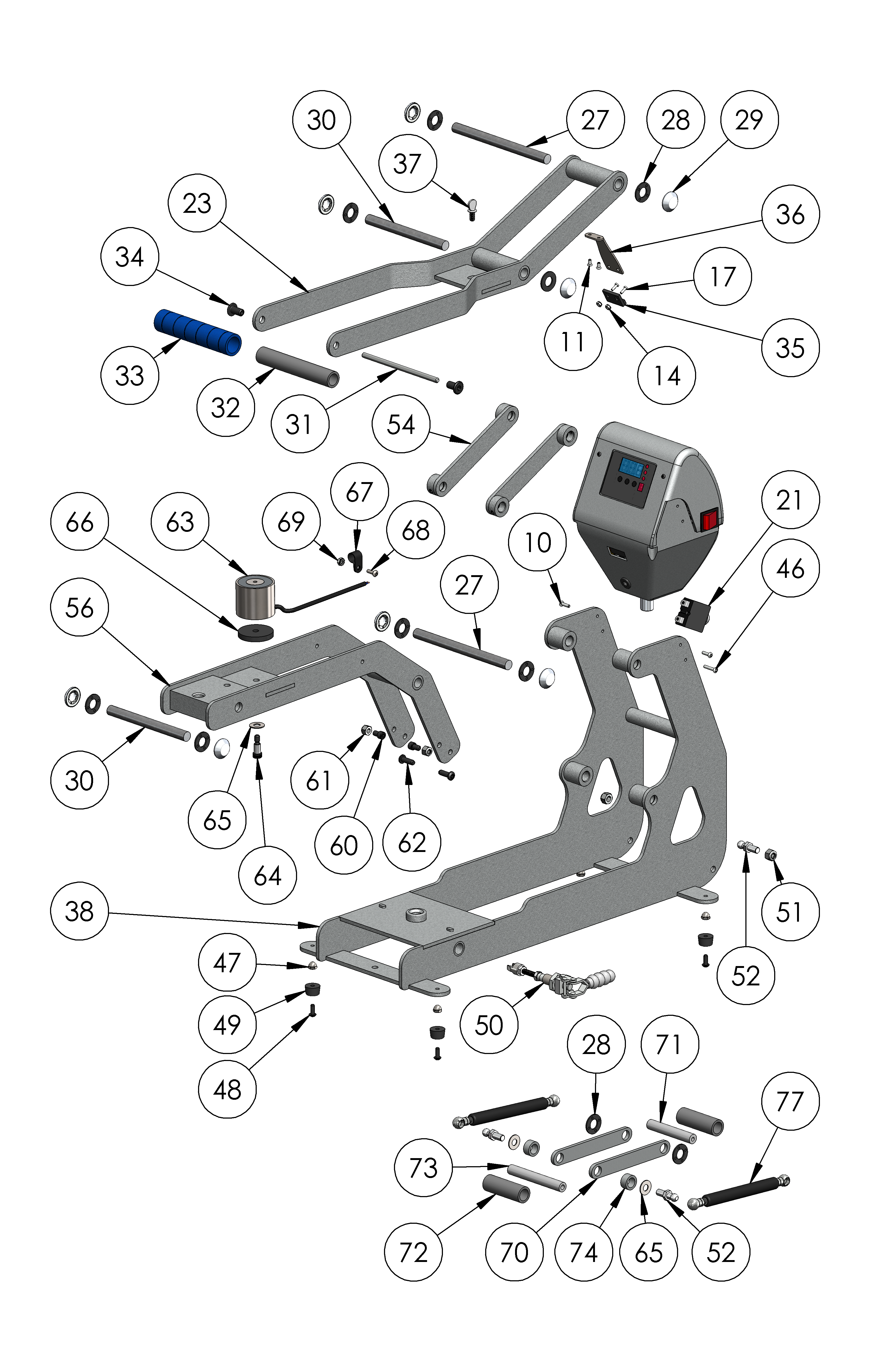

KIT 3-6931

Base Casting (STX)

$282.93

3-1011-252

Screw, Pan Phillips #6 - 32 x 3/4" (STX)

$1.23

3-1011-182

Acorn Hex Nut 10-32 (STX)

$1.23

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (STX)

$1.23

1-1256

Rubber Foot (STX)

$1.23

1-2332

Quick Release Clamp (STX)

$26.25

2-1006-20

Nut, Hex Nylok 5/16"-18 (STX)

$3.36

1-1939

Ball Stud 10mm (STX)

$2.92

KIT 3-6905

Lift Link Set (STX)

$36.23

KIT 3-6903

Adjustment Arm Kit (STX)

$120.75

3-1011-215

Soc HD Cap Screw 1/4-20 x 3/8" (STX)

$1.23

2-1006-7

Nut, Hex 1/4" -20 Nylok (STX)

$3.80

3-1011-106

Screw, Button Socket Head 1/4" - 20 x 3/4" (STX)

$2.92

1-1945-1

Electromagnet (STX)

$63.07

3-1011-233

Screw, Shoulder 5/16" x 1/2" w/ 1/4"-20 Thread(STX)

$2.92

2-1006-46

Washer, 3/8" SAE Narrow (STX)

$2.92

1-2133

Silicone Pad 5/16" I.D. x 1 3/4" O.D. x 1/4 (STX)

$2.92

1-1105

Cable Clamp 7/16" (Black) (STX)

$2.92

3-1011-159

Screw, Machine #8-32 x 1/2" (STX)

$1.23

2-1006-52

Nut, Hex #8-32 w/ Tooth Washer (STX)

$1.23

KIT 3-6906

Bridle Link Kit (STX)

$29.75

1-2091

Pin, 1/2" x 3" w/ 1/4-20 Threads (STX)

$8.51

1-2098

PVC Spacer 1/2" I.D. x 2.48" (STX)

$3.80

1-2092

Pin, 1/2" x 3-5/8" w/ 5/16"-18 Threads (STX)

$8.51

1-2114

Steel Spacer (STX)

$7.29

1-2243

Gas Spring, 16x20 & 16x16 (STX)

$39.11

2-1059

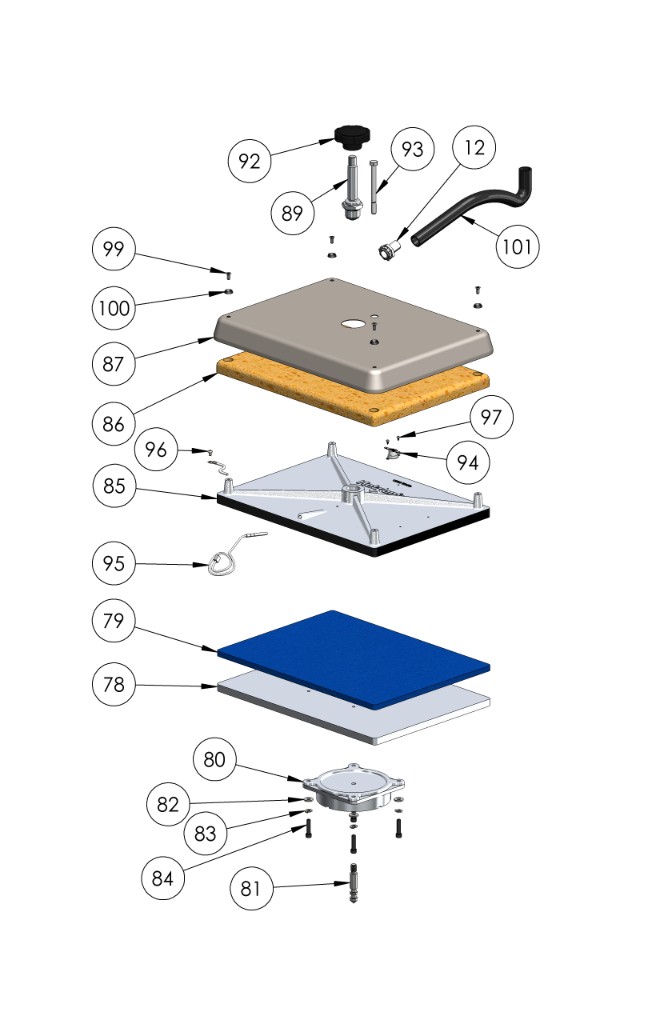

Lower Platen 16 x 16 (STX)

$145.54

1-2135

Silicone Pad 16x16 (Blue) (STX)

$151.61

3-1336

Adapter Plate (STX)

$34.61

1-2215

Quick Release Pin (STX)

$10.41

2-1006-25

Washer, Flat 1/4" SAE (STX)

$1.23

2-1006-44

Washer, Spring Lock 1/4" (STX)

$1.23

3-1011-191

Screw, Socket Head Cap 1/4" - 20 x 1" (STX)

$2.92

2-1015

Heat Platen, 16x16 (STX)

$269.24

1-2257

Insulation, 16x16 (STX)

$8.95

3-1333S

Heat Platen Cover 16 x 16 (STX)

$52.16

2-1081

Adjustment Spindle Kit (STX)

$36.06

1-1012

Pressure Adjustment Knob (STX)

$11.13

3-1011-251

Safety Bolt 5/16-18 x 4" (STX)

$2.92

Kit 3-6968

Thermostat Disc Kit (STX)

$26.49

1-1272-1

Temperature Probe (STX16)

$65.81

3-1011-87

Screw, SS Phillips #8-32 x 1/4" (STX)

$1.23

3-1011-98

Screw, SS Sheet Metal #4 x 1/4" (STX)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (STX)

$1.23

1-1063

100

Washer, Plastic Finishing (STX)

$1.23

2-1048-3

101

Conduit 12" (STX)

$20.16

1-1940

107

Elbow 90 degrees with tubing 16x20 & 16x16 only (STX)

$11.66

2-1671

200

Power Cord 120V (STX)

$12.00

1-2186

201

Power Cord 240V (STX)

$12.00

1-1279

203

Lower Platen Spacer (STX)

$12.14

KIT 3-6924

204

Platen Lift Kit (STX)

$15.75

1-2367-1

205

Quick Change Keyway (STX)

$7.80

3-1011-127

206

Screw, Machine #8-32 x 3/8” Black Oxide (STX)

$1.23
