Select Heat Press

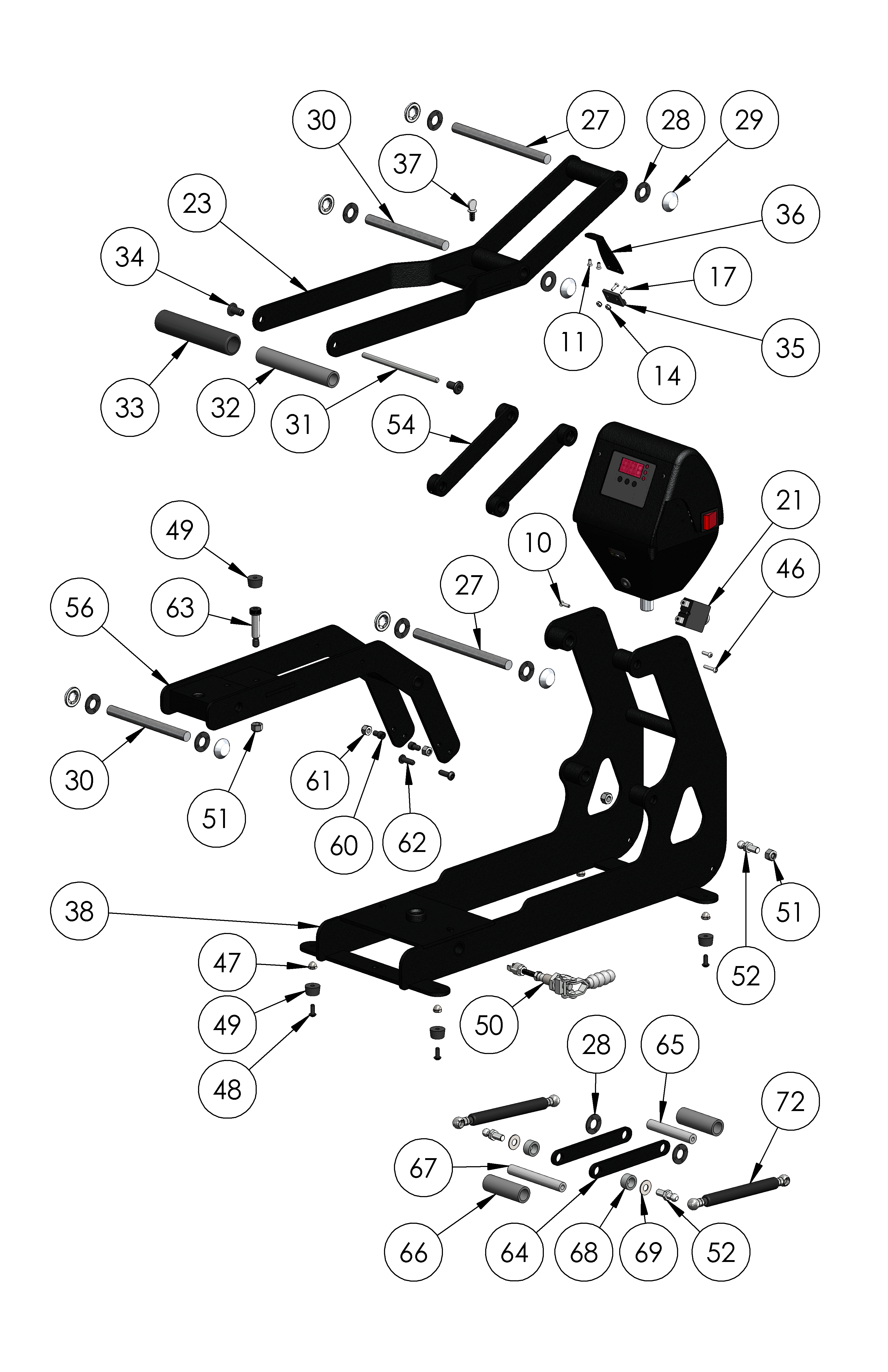

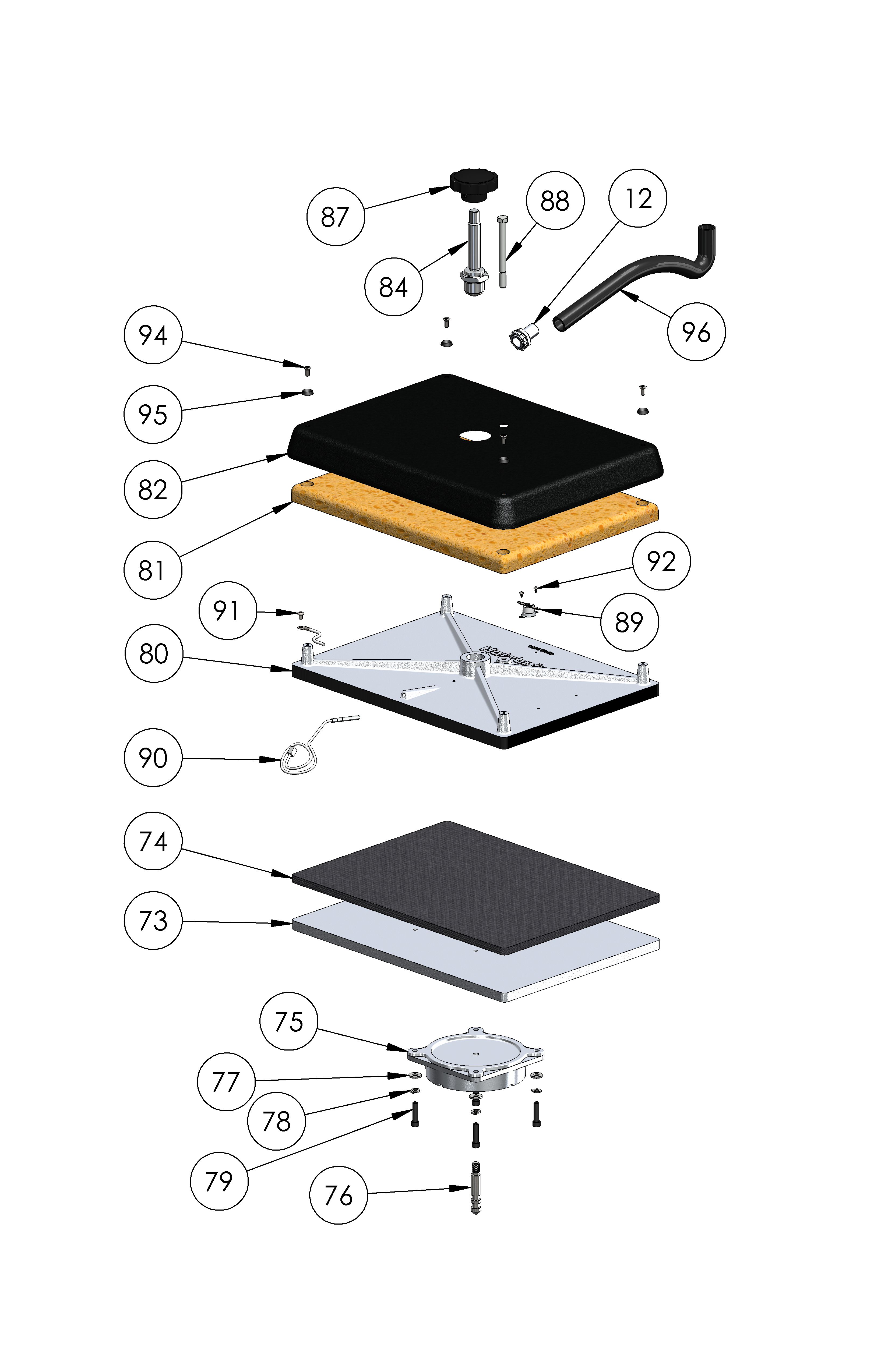

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Maxx 11" X 15" Digital Clam

  • QTY.
  • PART NUMBER
  • LOCATION #
  • NAME
  • PRICE

Select Parts

4-1172-B
1
Maxx Clam - MAXX Housing
$24.27
1-2018
3
Maxx Clam - Display Overlay
$6.12
1-2105
4
Maxx Clam - Grommet, 9/32" ID 3/8" OD
$3.80
3-1011-235
5
Maxx Clam - Screw, Sheet Metal #6 x 1/2"
$1.23
2-1006-50
6
Maxx Clam - Nut, #6-32 Hex with Lockwasher
$3.20
3-1011-130
7
Maxx Clam - Screw, Pan Phillips #4-40 x 1"
$1.23
1-1759
8
Maxx Clam - IEC Power Inlet
$3.80
Kit 3-6966
9
Maxx Clam - On/Off Switch
$23.38
3-1011-19
10
Maxx Clam - Screw, Machine #6-32 x 1/2"
$1.23
3-1011-25
11
Maxx Clam - Screw, Machine #6-32 x 1/4"
$1.23
1-1353
12
Maxx Clam - Topaz Connector with flex tubing - 11 x 15
$20.16
KIT 3-6946
13
Maxx Clam - SSTT Controller Assembly
$219.51
2-1661
15
Maxx Clam - Controller Bracket
$21.84
1-1059
16
Maxx Clam - Triac
$37.12
3-1011-22
17
Maxx Clam - Screw, Machine #4-40 x 3/8"
$1.23
1-1290
18
Maxx Clam - Terminal Block
$8.51
1-1211
20
Maxx Clam - Proximity Switch
$30.93
1-1331-3
21
Maxx Clam - Circuit Breaker
$21.84
KIT 3-6904
23
Maxx Clam - Handle Assembly 16x20, 15x15, 11x15
$97.41
1-2094
27
Maxx Clam - Steel Pin 1/2" D x 6.45"
$2.92
1-1048-3
28
Maxx Clam - Washer, 1/2" Nylon
$1.23
1-1107-1
29
Maxx Clam - Hubcap 1/2"
$0.86
1-2093
30
Maxx Clam - Steel Pin, 1/2" x 5.375"
$2.92
1-1042-1
31
Maxx Clam - All Thread Pin 1/4-20 x 4 3/4"
$2.92
1-1540
33
Maxx Clam - Foam Grip
$7.29
2-1006-2
34
Maxx Clam - JCN Nut
$2.92
1-1219
35
Maxx Clam - Magnet
$10.32
1-2085-1
36
Maxx Clam - Magnet Bracket
$9.71
3-1011-232
37
Maxx Clam - Shipping Bolt
$2.92
KIT 3-6901
38
Maxx Clam - Base Assembly 16x20, 15x15, 11x15
$246.96
3-1011-182
47
Maxx Clam - Acorn Hex Nut
$1.23
3-1011-164
48
Maxx Clam - Hex Soc Button HD #10-32x1/2"
$1.23
1-1256
49
Maxx Clam - Rubber Foot
$1.23
2-1006-20
51
Maxx Clam - Nylon Hex Nut
$3.36
1-1939
52
Maxx Clam - Ball Stud 10mm
$2.92
KIT 3-6951
54
Maxx Clam - Lift Link Set
$31.24
KIT 3-6903
56
Maxx Clam - 16x20, 15x15, 11x15 Adjustment Arm
$120.75
3-1011-215
60
Maxx Clam - Soc HD Cap Screw 1/4-20 x 3/8"
$1.23
2-1006-7
61
Maxx Clam - Nut, Hex 1/4" - 20 Nylok
$3.80
3-1011-106
62
Maxx Clam - Screw, Button Socket Head 1/4" - 20 x 3/4"
$2.92
3-1011-55
63
Maxx Clam - Shoulder Bolt
$3.16
KIT 3-6956
64
Maxx Clam - Bridle Link Kit
$29.75
1-2091
65
Maxx Clam - 3" .5" dia. 1/4 - 20 threaded pin
$8.51
1-2098
66
Maxx Clam - PVC Spacer 1/2" I.D. x 2.48"
$3.80
1-2092
67
Maxx Clam - 3 5/8" .5" dia. 1/4 - 20 threaded pin
$8.51
1-2114
68
Maxx Clam - Steel Spacer
$7.29
2-1006-46
69
Maxx Clam - Washer, 5/16" SS
$2.92
1-2243
72
Maxx Clam - Gas Spring - 16x20
$39.11
1-2246
72
Maxx Clam - Gas Spring - 15x15 & 11x15
$39.11
2-1029
73
Maxx Clam - Lower Platen 16 x 20
$157.67
3-1086
73
Maxx Clam - Lower Platen 15 x 15
$162.06
3-1199-1
73
Maxx Clam - Lower Platen 11 x 15
$89.04
1-1011
74
Maxx Clam - Silicone Pad 16 x 20 Gray
$157.67
1-1473
74
Maxx Clam - Silicone Pad 15 x 15 Gray
$105.01
1-1875
74
Maxx Clam - Silicone Pad 11 x 15 Gray
$104.57
3-1336
75
Maxx Clam - Adapter Plate
$34.61
1-2215
76
Maxx Clam - Quick Release Pin
$10.41
2-1006-25
77
Maxx Clam - Washer, Flat 1/4" SAE
$1.23
2-1006-44
78
Maxx Clam - Washer, Split Lock 1/4"
$1.23
3-1011-191
79
Maxx Clam - Screw, Socket Head Cap 1/4" - 20 x 1"
$2.92
2-1002-3
80
Maxx Clam - Heat Platen 16 x 20
$293.50
3-1320
80
Maxx Clam - Heat Platen 15 x 15
$203.99
3-1199
80
Maxx Clam - Heat Platen 11 x 15
$180.31
1-2258
81
Maxx Clam - Insulation 11 x 15
$7.95
1-2257
81
Maxx Clam - Insulation 15 x 15
$8.95
1-1020
81
Maxx Clam - Insulation 16 x 20
$10.32
3-1332B
82
Maxx Clam - Heat Platen Cover 16 x 20
$78.23
3-1337B
82
Maxx Clam - Heat Platen Cover 15 x 15
$57.38
3-1331B
82
Maxx Clam - Heat Platen Cover 11 x 15
$38.82
2-1081
84
Maxx Clam - Adjustment Spindle Kit
$36.06
1-1012
87
Maxx Clam - Pressure Adj. Knob
$11.13
3-1011-238
88
Maxx Clam - Saftey Bolt 5/16-18 x 4 1/2"
$2.92
1-2076
89
Maxx Clam - Thermostat
$18.17
1-1272-1
90
Maxx Clam - Probe
$65.81
3-1011-87
91
Maxx Clam - Screw, SS Phillips #8-32 x 1/4"
$1.23
3-1011-98
92
Maxx Clam - Screw, SS Sheet Metal #4 x 1/4"
$1.23
3-1011-217
94
Maxx Clam - Cover Screw 10-24x1/2"
$1.23
1-1063
95
Maxx Clam - Finish Washer
$1.23
1-1048-2
96
Maxx Clam - Conduit, STX & MAXX 20/16/15, 12"
$20.16
1-1940
97
Maxx Clam - Elbow 90 degrees with tubing 16x20 & 15x15
$11.66
1-1940
97
Maxx Clam - Conduit Fitting, 1/2" Elbow
$11.66
2-1013-1
200
Maxx Clam - Power Cord
$12.00
1-1279
203
Maxx Clam - Lower Platen Spacer 16x20 & 15x15
$12.14
1-1279
203
Maxx Clam - Lower Platen Spacer 11 x 15
$12.14
