Air Swinger (XRS)

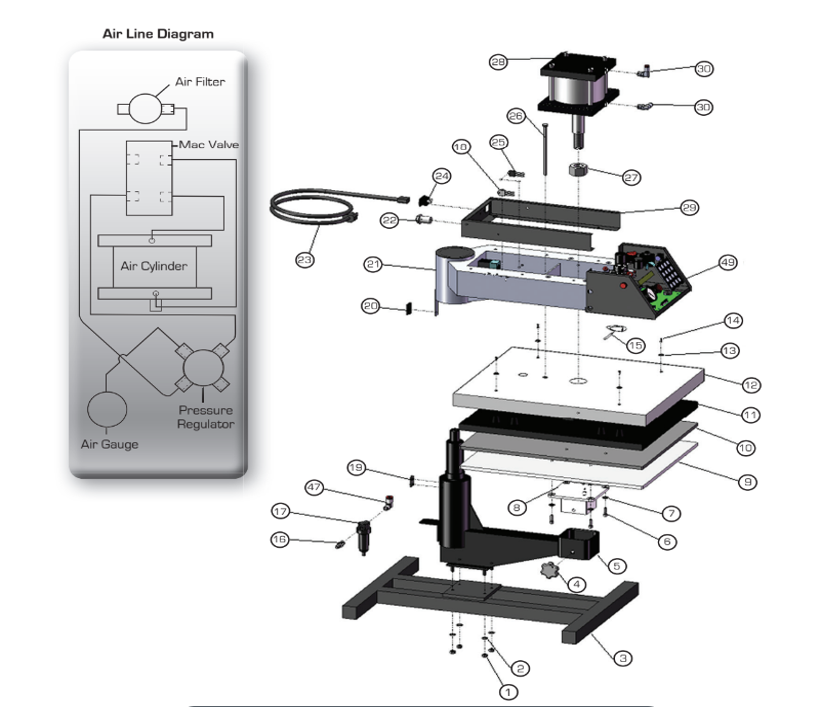

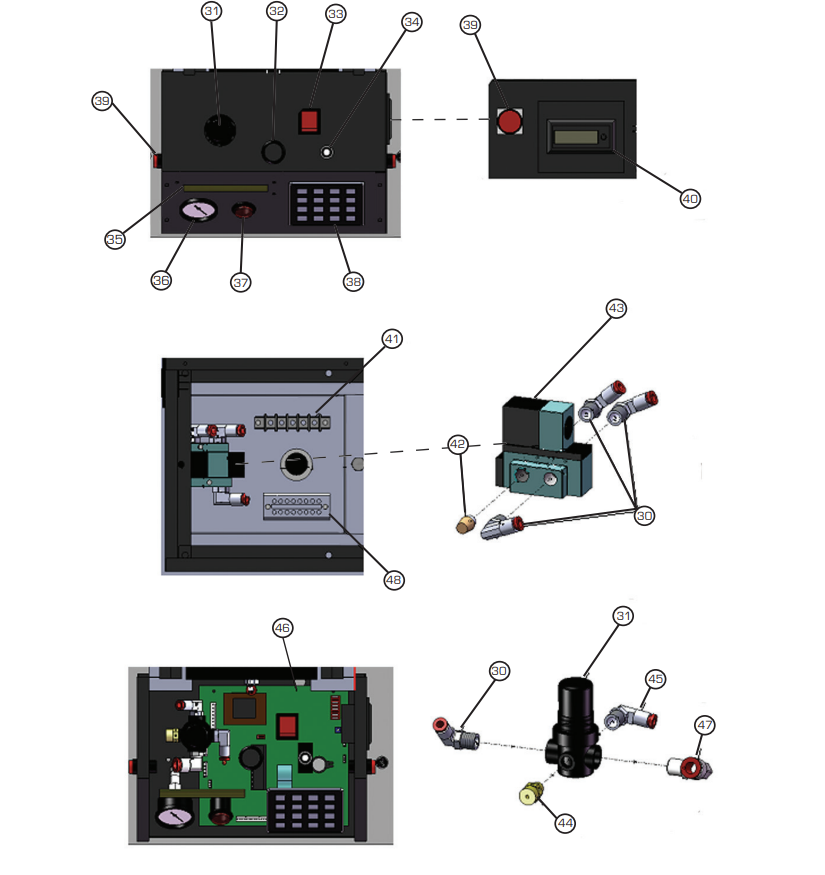

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

2-1006-20

Nut, Hex Nylok 5/16"-18 (XRS)

$3.36

2-1006-43

Lock Spring Washer 3/8" (XRS)

$2.92

Obsolete

Kit 3-6918 OBSOLETE

Table Top Stand (XRS)

$0.00

Obsolete

1-1016 OBSOLETE

Platen Thumb Screw (XRS)

$0.00

Obsolete

Kit 3-1225 OBSOLETE

Base Weldment with Spindle (XRS)

$0.00

3-1011-106

Screw, Socket Head 1/4”-20 x 3/4” (XRS)

$3.80

2-1006-44

Washer, Spring Lock 1/4” (XRS)

$1.23

2-1033

Post Casting (XRS)

$32.36

3-1190

Lower Platen 22x22 (XRS)

$416.00

2-1029-HD

Lower Platen, 16 x 20 (XRS)

$157.67

1-1011

Silicone Pad, 16 x 20 (Gray) (XRS)

$157.67

1-1752

10.1

Silicone Pad Gray 22x 22 (XRS)

$415.00

2-1002-3

Heat Platen 16 x 20 1800W Milled (No Ears)(XRS)

$293.50

Obsolete

3-1189 OBSOLETE

11.1

Heat Platen 22x 22 (XRS)

$0.00

Obsolete

4-1117 OBSOLETE

Heat Platen Cover 16x20 (XRS)

$0.00

1-1063

Washer, Plastic Finishing (XRS)

$1.23

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XRS)

$1.23

1-1272-1

Temperature Probe (XRS)

$65.81

1-1791

Quick Disconnect (XRS)

$23.58

1-1215

Air Filter & Regulator (-2016 Model) (XRS)

$89.95

1-1059-1

Triac (XRS)

$37.12

1-1219

Proxy Magnet (XRS)

$10.32

Obsolete

Kit 3-1257 OBSOLETE

Top Weldment (XRS)

$0.00

Obsolete

1-1892 OBSOLETE

Bulkhead Fitting 3/8" (XRS)

$0.00

2-1013-1

Power Cord 120V (XRS)

$12.00

1-1759

IEC Power Inlet (XRS)

$3.80

1-1059-1

Triac- AIR (XRS)

$37.12

Obsolete

3-1011-230 OBSOLETE

Safety Bolt 3/8-16x7" (XRS)

$0.00

Obsolete

NO NUMBER OBSOLETE

Jam Nut 1"-12 (XRS)

$0.00

1-2074

Air Cylinder (XRS)

$516.00

1-2062

28.1

Air Cylinder 22x22 (XRS)

$666.75

4-1161

Control Housing/Back (XRS)

$173.26

4-1015-12

Air Fitting, Elbow Bulkhead 1/4" Tube (XRS)

$10.32

4-1015-12

Air Fitting, Elbow Bulkhead 1/4" Tube (XRS)

$10.32

Obsolete

1-1213 OBSOLETE

Pressure Regulator (XRS)

$58.68

Obsolete

1-1587 OBSOLETE

Tack Button (XRS)

$0.00

Kit 3-6966

On/Off Power Switch Kit (XRS)

$23.38

1-1331-3

Circuit Breaker 20 AMP (XRS)

$21.84

1-1135

34.1

Ribbon Cable (XRS)

$16.92

1-1031

LCD Display (XRS)

$102.32

1-1014

Pressure Gauge (XRS)

$7.28

Obsolete

1-1588-1 OBSOLETE

E-Stop (XRS)

$0.00

2-1014

Keypad (XRS)

$106.77

Obsolete

1-1670 OBSOLETE

Print Switch (XRS)

$0.00

Kit 3-6928

39.1

Pedstal Stand (XRS)

$0.00

Obsolete

1-2067 OBSOLETE

Counter (XRS)

$0.00

1-1290

Terminal Block (XRS)

$8.51

Obsolete

1-2241 OBSOLETE

MAC Valve 120 volt (XRS)

$0.00

Obsolete

4-1015-36 OBSOLETE

Stone Filter (XRS)

$0.00

Obsolete

1-2242 OBSOLETE

42.1

MAC VALVE 240 volt (XRS)

$0.00

Obsolete

1-1581 OBSOLETE

Safety Valve 100 PSI (XRS)

$0.00

Obsolete

4-1015-13 OBSOLETE

Elbow Fitting 1/8" x 1/4" (XRS)

$0.00

1-2021

Control Board (XRS)

$325.00

Obsolete

4-1015-12 OBSOLETE

Elbow Fitting (XRS)

$0.00

Obsolete

4-1015-4 OBSOLETE

Elbow Fitting 1/4"x 3/8" (XRS)

$0.00

Obsolete

1-1792 OBSOLETE

Terminal Block (XRS)

$0.00

Obsolete

4-1161 OBSOLETE

Control Housing (XRS)

$0.00

1-1274

Air Tubing, 1/4" Polyurethane (by foot) (XRS)

$3.15

Obsolete

1-1891 OBSOLETE

Air Line 3/8" (XRS)

$0.00

Obsolete

1-2065 OBSOLETE

Leveling Feet (XRS)

$0.00

Obsolete

3-1150-1 OBSOLETE

Heating Element 22x22 (XRS)

$0.00

Obsolete

Kit 3-6948 OBSOLETE

Heat Platen 22x22 (XRS)

$0.00
