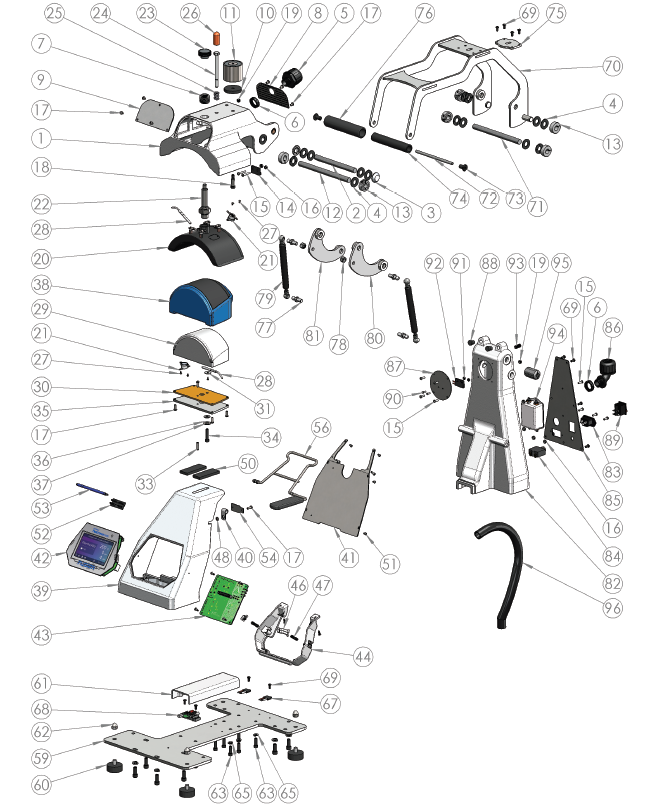

360 IQ Hat Press

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

DOWNLOAD GUIDE

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

2-1671

Power Cord 120V (STXCP)

$12.00

4-1183

Heater Arm Frame (STXCP)

$100.29

2-1695

Steel Pin, 1/2" x 5-9/16" (STXCP)

$4.92

1-1107-1

Hub Cap 1/2" (STXCP)

$0.86

1-1048-3

Washer, 1/2" Nylon (STXCP)

$1.23

1-2617

Conduit Fitting, 1/2 NPT-21mm (STXCP)

$2.85

1-2619

Conduit Fitting Nut, 1/2 NPT (STXCP)

$0.56

1-2605

Threaded Insert, 1”-8 to 5/8”-11 (STXCP)

$9.44

1-2133

Silicone Pad, 5/16” ID x 1-3/4” OD x 1/4” T (STXCP)

$2.92

1-1945-2

Electromagnet (STXCP)

$63.07

1-2606

Shaft Collar, 1/2" One-Piece Clamp On (STXCP)

$2.70

1-1219

Proximity Magnet (STXCP)

$10.32

3-1011-13

Screw, Pan Phillips #6-32 x 1" (STXCP)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (STXCP)

$3.40

3-1011-81

Screw, Machine #8-32 x 1/4” (STXCP)

$2.78

3-1011-185

Screw, Shoulder 5/16” x 3/4” (STXCP)

$4.77

3-1011-285

Set Screw, 5/16”-18 x 1/4” (STXCP)

$4.77

3-1386

Heater, Upper, 360 IQ Hat, 500W (STXCP)

$57.18

Kit 3-6968

Thermostat Disc Kit (STXCP)

$26.49

1-2147

Adjustment Spindle, Cap (STXCP)

$26.06

1-1095

Pressure Adjustment Knob (STXCP)

$3.85

3-1011-251

Safety Bolt 5/16-18 x 4" (11x15 & 16x16) (STXCP)

$2.92

1-2603

Spring (STXCP)

$7.80

1-2608

Silicone Cap, 1/2” x 1 (STXCP)

$2.63

3-1011-98

Screw, SS Sheet Metal #4 X 1/4” (STXCP)

$1.23

1-1272-3

Temperature Probe (49" Upper Heater) (STXCP)

$65.81

1-1272-2

Temperature Probe (Lower Heater) (STXCP)

$65.81

3-1385

Heater, Lower, 360 IQ Hat 240W (STXCP)

$175.31

1-2326

Insulation (STXCP)

$6.80

2-1006-101

Washer, #6 Oversized (STXCP)

$1.23

2-1006-110

Weld Nut, 1/4”-20 Steel (STXCP)

$1.23

1-2610

Dowel Pin, 1/4” x 3/4” Pull-Out (STXCP)

$2.55

3-1011-242

Screw, Socket Head Cap 1/4-20 x 1.125 (STXCP)

$1.23

2-1006-25

Washer, Flat 1/4” SAE (STXCP)

$1.23

2-1006-46

Washer, 3/8" SAE Narrow (STXCP)

$2.92

1-2592

Silicone Cover, Lower (STXCP)

$89.99

KIT 3-1333

Lower Frame w/ Strain Gauge (STXCP)

$150.00

1-2611

Loop Clamp, 3/8” Galv Steel (STXCP)

$2.63

2-1700

Lower Support Cover (STXCP)

$65.00

1-2658-RF

Controller Screen (2018+ Model) GREEN (STXCP)

$403.75

1-2664-F

Controller Screen (2024+ Model) BLUE (STXCP) -

$475.00

1-2463-P

Power Board (2018-2021 Model) GREEN (STXCP)

$215.00

1-2658-P2

Power Board (2022+ Model) (STXCP)

$215.00

1-2664-P

Power Board (2024+ Model) BLUE (STXCP)

$192.00

1-2473-1

Power Bracket (STXCP)

$4.76

3-1011-235

Screw, Sheet Metal #6 x 1/2” (STXCP)

$1.23

1-2474

Latch (STXCP)

$1.23

1-2485-1

Spring, 1/4” x 1”, 1.7lbs/in (STXCP)

$1.23

1-2612-1

Silicone Pad, 1/4” x 1” Self-Adhesive (STXCP)

$11.37

3-1011-25

Screw, Machine #6-32 x 1/4” (STXCP)

$1.23

1-2386

Touchscreen Stylus Holder (STXCP)

$4.25

1-2385

Touchscreen Stylus (STXCP)

$14.95

CALL FOR AVAILABILITY

Cable Mounting Plate (STXCP)

$3.50

4-1180

Cap Hold Down, 360 IQ HAT (STXCP)

$21.84

3-1011-159

Screw, Machine #8-32 x 1/2" (STXCP)

$1.23

4-1180-1

Spring-Cap Hold Down (Not Shown In Photo) (STXCP)

$7.12

1-2575

Rubber Foot (STXCP)

$12.48

4-1181

Base Channel, 360 IQ Hat (STXCP)

$56.80

2-1006-112

Nut, M8x1.25 Cap (STXCP)

$1.23

3-1011-106

Screw, Socket Head 1/4”-20 x 3/4” (STXCP)

$2.92

3-1011-100

Screw, Socket Head 5/16”-18 x 3/4” (STXCP)

$3.40

2-1006-44

Washer, Spring Lock 1/4” (STXCP)

$1.23

2-1006-45

Washer, Split Lock 5/16” (STXCP)

$1.23

1-2464-1

Triac (STXCP)

$37.12

3-1011-127

Screw, Machine #8-32 x 3/8” Black Oxide (STXCP)

$1.23

CALL FOR AVAILABILITY

Handle Weldment (STXCP) -

$68.68

2-1055-8

Steel Pin, 1/2” x 6-1/2” (STXCP)

$2.78

1-1042-1

All Thread Pin 1/4-20 x 4 3/4" (STXCP)

$2.92

2-1006-2

JCN Nut 1/4"-20 (STXCP)

$2.92

1-1049-11

PVC Spacer 1/2" I.D. x 5" (STXCP)

$3.80

1-1540

Foam Grip (Black) (STXCP)

$7.29

1-1939

Ball Stud 10mm (STXCP)

$2.92

2-1006-74

Nut, Hex Nylok 5/16”-18 (STXCP)

$2.78

1-2614

Gas Spring, 360 IQ Hat (STXCP)

$39.11

4-1182

Column, 360 IQ Hat (STXCP)

$106.60

1-1759

IEC Power Inlet (STXCP)

$3.80

1-1331-2

Circuit Breaker 10 AMP (STXCP)

$21.84

1-2618

Conduit Fitting, 1/2" Elbow (STXCP)

$11.57

CALL FOR AVAILABILITY

Proxy Plate (STXCP)

$2.78

1-1056

Rubber Foot, Small Push-In (STXCP)

$2.78

KIT 3-6966

On/Off Power Switch Kit (STXCP)

$23.38

3-1011-22

Screw, Machine #4-40 x 3/8” (STXCP)

$1.23

2-1006-51

Nut, #4-40 with Tooth Washer (STXCP)

$1.23

1-1211-1

Proximity Switch (STXCP)

$30.93

3-1011-284

Set Screw, 5/16”-18 x 3/4” (STXCP)

$5.00

1-2590

Filter, Schaffner FN2090-6-06 (STXCP)

$33.50

2-1048-3

Conduit 12" (STXCP)

$11.66
