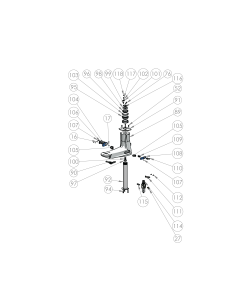

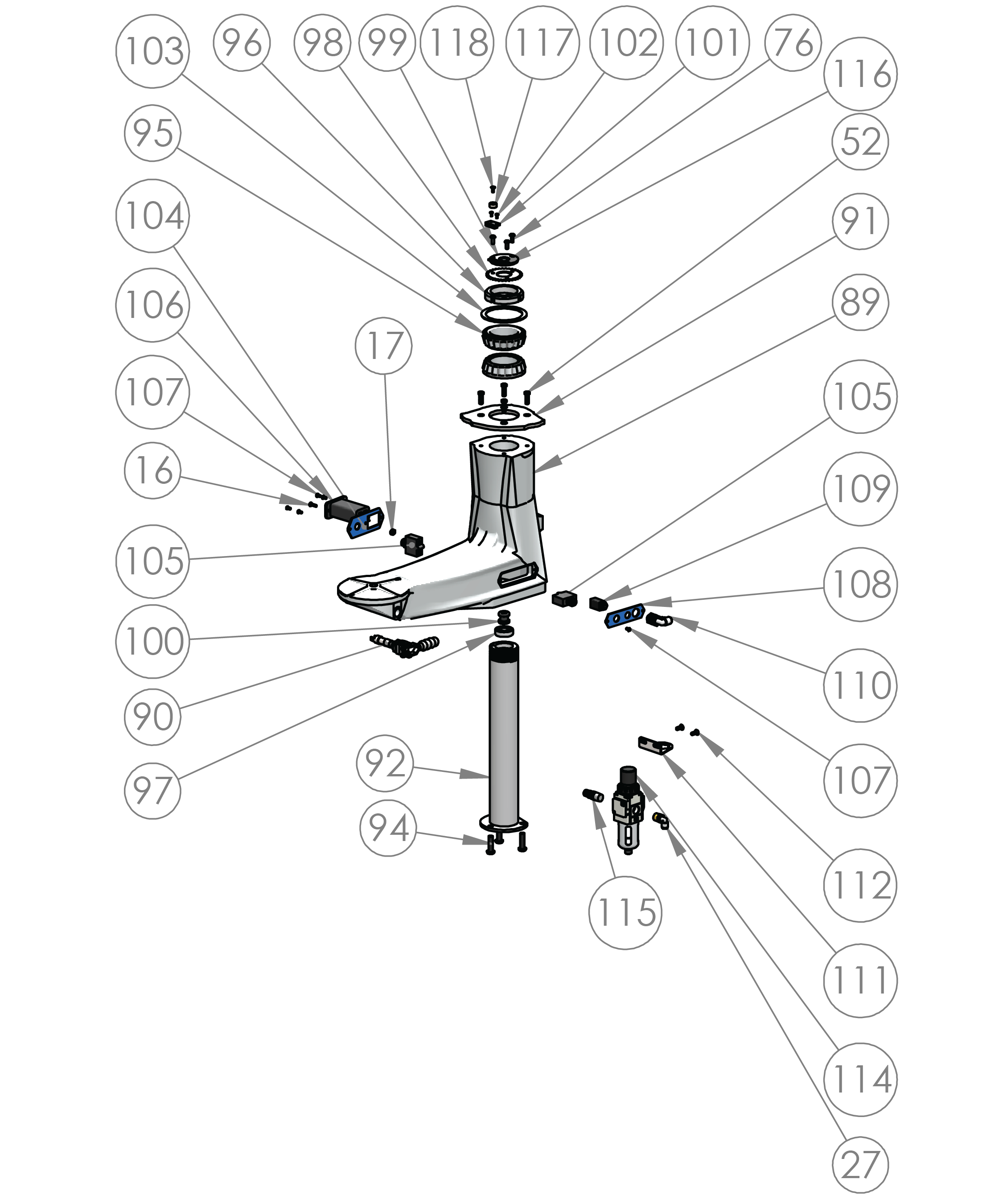

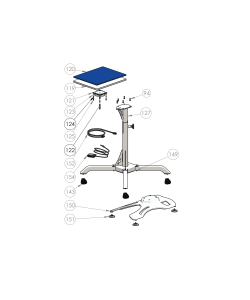

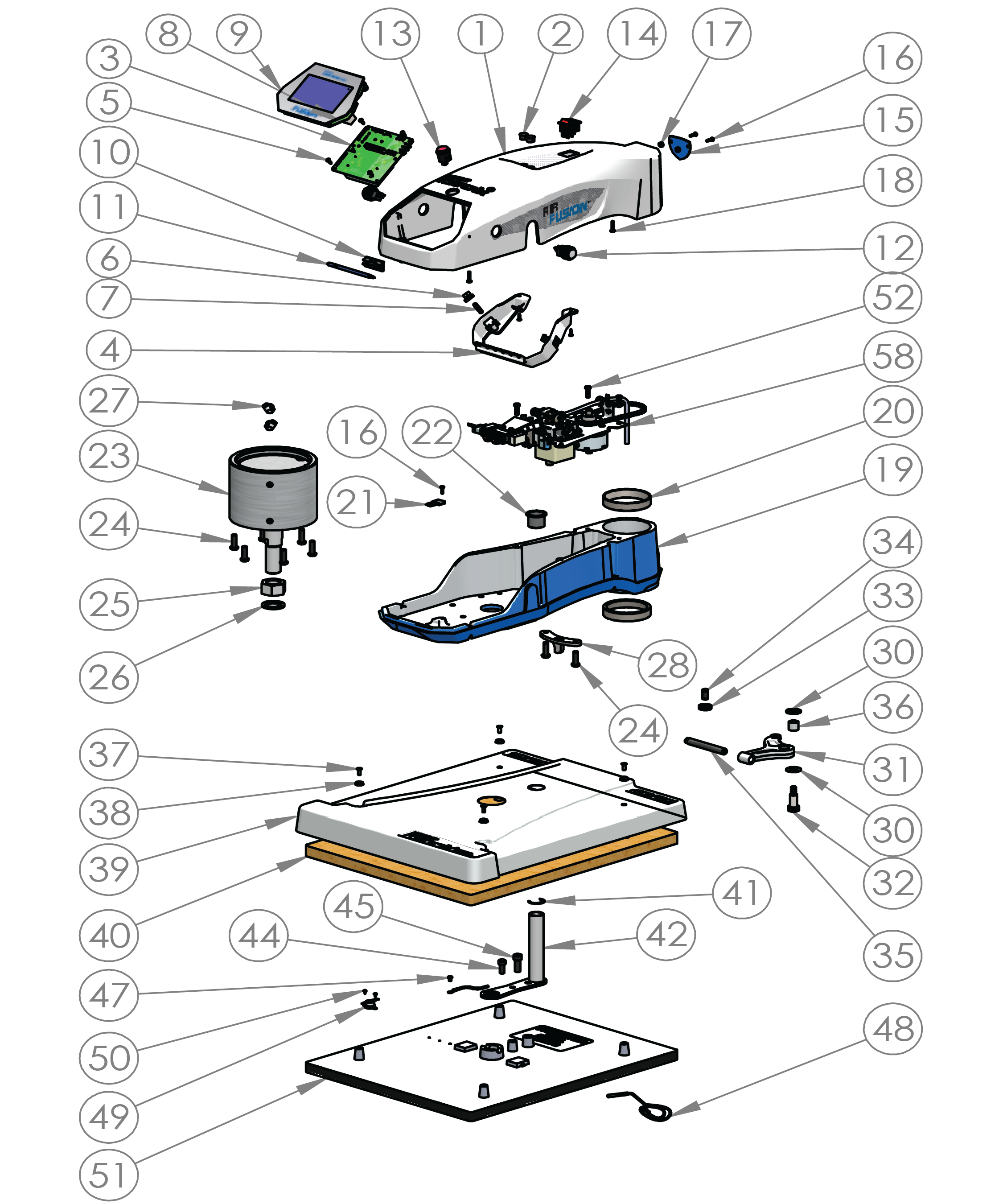

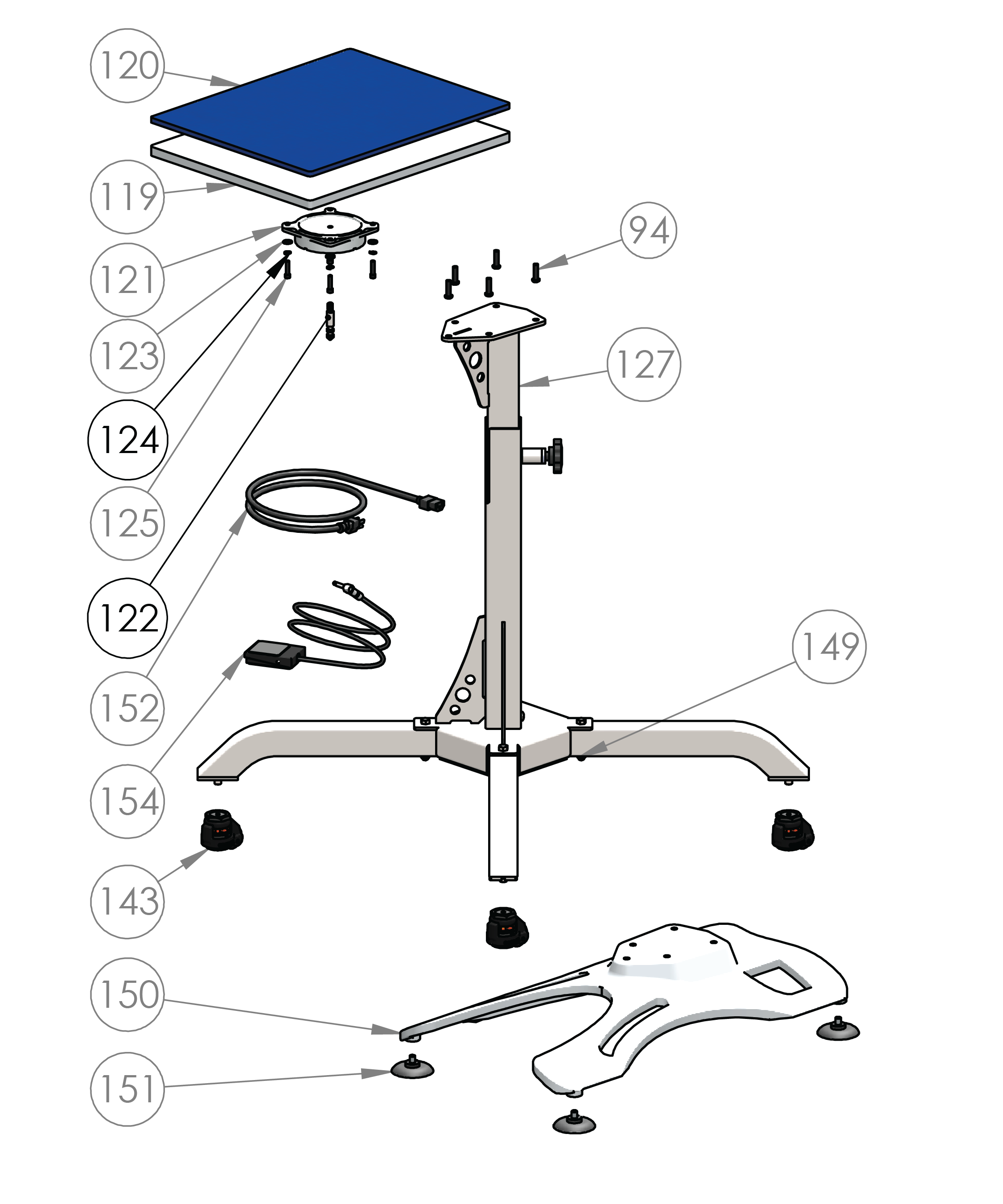

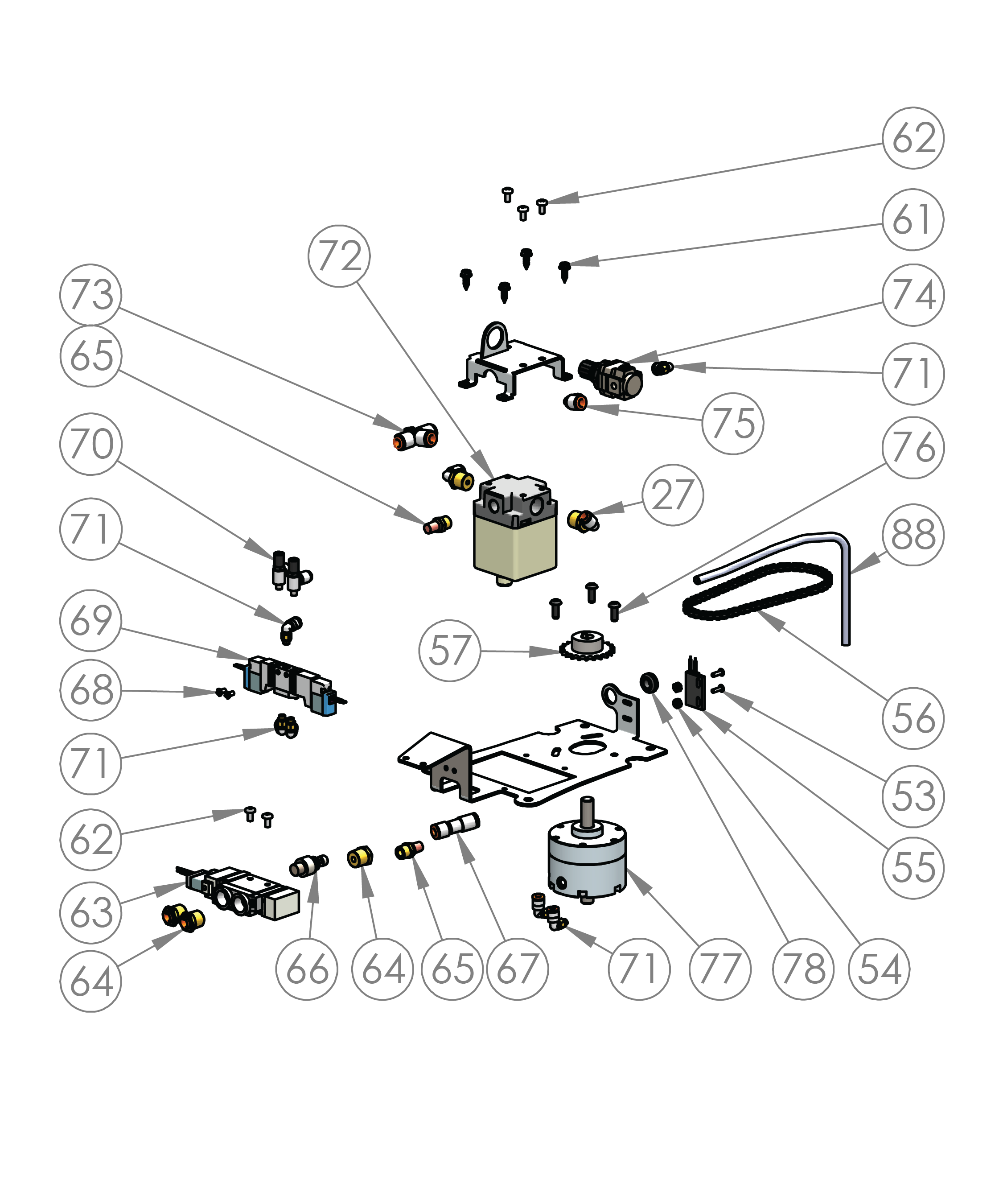

Use the Parts Location Guide to identify the parts needed

Use the Parts Location Guide to identify the parts needed.

Hotronix Air Fusion IQ

PART REPLACEMENT GUIDES

(Available Part Replacement Guides and Videos Can Also Be Found Within the Part Links Below)

QTY.
PART NUMBER
LOCATION #
NAME
PRICE

Select Parts

1-2197

Control Housing (XRF IQ)

$75.38

1-1971

Cap, Plastic Black 1/2" (XRF)

$2.61

1-2658-P

Power Board (2018-2023 Model) GREEN (XRF IQ)

$192.00

1-2664-P

Power Board (2024 + Model) BLUE (XRF IQ)

$192.00

1-2473

IQ Power Bracket (XRF IQ)

$4.76

3-1011-235

Screw, Sheet Metal #6 x 1/2" (XRF IQ)

$1.23

1-2474

Latch (XRF IQ)

$1.23

1-2658-RF

Controller Screen (2018+ Model) GREEN (XRF IQ)

$403.75

1-2664-F

Controller Screen (2024+ Model) BLUE (XRF IQ) -

$475.00

1-2198-1

Screen Overlay (XRF IQ)

$7.40

1-2386

Touchscreen Stylus Holder (XRF IQ)

$4.25

1-2385

Touchscreen Stylus (XRF IQ)

$14.95

1-2319

Button, Print Switch (White) (XRF IQ)

$28.53

1-2270

Button, Quick Release (Red) (XRF IQ)

$34.04

KIT 3-6966

On/Off Power Switch Kit (XRF IQ)

$23.38

1-2423

Chevron Cover Plate (XRF IQ)

$7.40

3-1011-19

Screw, Machine #6-32 x 1/2" (XRF IQ)

$1.23

2-1006-50

Nut, #6-32 Hex with Lockwasher (XRF IQ)

$3.40

3-1011-155

Screw, Machine #8-32 x 3/4" (XRF2 IQ)

$1.23

3-1341

Upper Casting (XRF2 IQ)

$217.43

1-2268

Bearing, Tapered Cup (XRF IQ)

$29.90

1-2464-1

Triac (XRF IQ)

$37.12

1-2282

Bushing, Flange 1in (XRF IQ)

$6.83

1-2264

Air Cylinder 6in (XRF IQ)

$431.33

3-1011-104

Screw, Button Socket Head 5/16"-18 x 1" (XRF IQ)

$2.92

2-1006-96

Nut, Hex Nylok 5/16"-18 (XRF-IQ)

$8.20

2-1006-94

Washer, 1in Nord-Lock (XRF2 IQ)

$10.41

1-2302

Shock Stop Plate (XRF IQ)

$26.38

1-1048-3

Washer, 1/2" Nylon (XRF IQ)

$1.23

1-2308

Rocker Arm (XRF IQ)

$23.63

3-1011-276

Shoulder Bolt, 1/2" x 1-3/4" with 3/8"-16 Thread (XRF IQ)

$6.94

1-2280

Bearing, 6900 Double Shielded (XRF IQ)

$15.26

1-1018-1

Roll Pin, Spring 3/8" D x 3/4" LG (XRF IQ)

$3.53

1-2300

Shock Absorber (XRF IQ)

$154.20

1-2289

Bearing, 1/2" Needle (XRF IQ)

$14.28

3-1011-217

Screw, Flat Head Phillips #10-24 x 7/16" (XRF IQ)

$1.23

1-1063

Washer, Plastic Finishing (XRF-IQ)

$1.23

1-2263

Heater Cover (XRF IQ)

$78.23

1-2256

Insulation, 16 x 20 (XRF IQ)

$10.32

1-2286

C-Clip (XRF IQ)

$3.36

1-2290

Guide Tube (XRF IQ)

$56.10

3-1011-100

Screw, Socket Head 5/16"-18 x 3/4" (XRF IQ)

$3.40

3-1011-43

Screw, Socket Head 3/8"-16 x 1" (XRF IQ)

$2.92

3-1011-87

Screw, SS Phillips #8-32 X 1/4" (XRF IQ)

$1.23

1-1272-1

Temperature Probe (XRF-IQ)

$65.81

Kit 3-6968

Thermostat Disc Kit (XRF IQ)

$26.49

3-1011-98

Screw, SS Sheet Metal #4 X 1/4" (XRF IQ)

$1.23

2-1002-3

Heat Platen 16 x 20 1800W Milled (No Ears) (XRF IQ)

$293.50

3-1011-245

Screw, Socket Head Cap Low Profile 1/4-20 X 3/4" (XRF IQ)

$1.23

3-1011-22

Screw, Machine #4-40 x 3/8" (XRF IQ)

$1.23

2-1006-51

Nut, #4-40 with Tooth Washer (XRF IQ)

$1.23

1-1211

Proximity Switch (XRF IQ)

$30.93

1-2307

Chain 04B (XRF IQ)

$13.13

1-2306

Sprocket, 22 Tooth 04B (XRF IQ)

$22.49

1-2269

Pneumatic Package Assembly (XRF IQ)

$1028.16

1-2421

Screw, Sheet Metal Hex #8 x 1/2" (XRF IQ)

$1.23

1-2417

Screw, M4x0.7 x 8 Pan Phillips (XRF IQ)

$3.40

1-2299

Print Valve (XRF IQ)

$192.73

1-2427

Air Fitting, Straight Hex 1/4" NPT 1/4" Tube (XRF IQ)

$10.32

1-2418

Air Fitting, Muffler, 1/8" NPT (XRF IQ)

$18.64

1-2339

Speed Control Muffler (XRF IQ)

$23.64

1-2419

Air Fitting, Check Valve, 1/4" Push-to-Connect (XRF IQ)

$22.70

1-2298

Swing Valve (XRF IQ)

$130.25

1-2428

Air Fitting, Elbow Restrictor #10-32 UNC 5/32" Tube (XRF IQ)

$38.95

1-2350

Air Fitting, Elbow #10-32 UNF 5/32" Tube (XRF IQ)

$10.32

1-2293

Electro-Pneumatic Regulator (XRF IQ)

$485.10

1-2420

Air Fitting, Tee, 1/4" Push-to-Connect (XRF IQ)

$20.64

1-2297

Pneumatic Regulator, Mini (XRF IQ)

$62.74

1-2430

Air Fitting, Elbow #10-32 UNF 1/4" Tube (XRF IQ)

$10.32

3-1011-164

Screw, Button Socket Head #10-32 x 1/2" (XRFIQ)

$1.23

1-2296

Rotary Actuator (XRF IQ)

$289.28

1-2429

Grommet, 5/16" ID 1/2" OD (XRF IQ)

$3.40

1-1274

Air Tubing, 1/4" Polyurethane (by foot) (XRF IQ)

$3.15

3-1340

Bottom Casting (XRF IQ)

$367.50

1-2367-1

Quick Change Keyway (XRF IQ)

$7.80

1-2332-1

Quick Release Clamp (Not Shown In Photo) (XRF IQ)

$26.25

1-2284

Stop Plate (XRF IQ)

$28.74

2-1670

Spindle (XRF IQ)

$150.00

1-2267

Bearing, Tapered Roller Cone (XRF IQ)

$48.07

2-1006-95

Spanner Nut 2in-18 (XRF IQ)

$26.38

1-2281

Bearing, 6002 (XRF IQ)

$48.07

1-2306-1

Sprocket, 32 Tooth 04B (XRF IQ)

$22.49

1-2285

100

Grommet, 3/8" ID 3/4" OD (XRF IQ)

$3.40

1-2311

101

Proximity Magnet, Slotted (XRF IQ)

$10.32

3-1011-278

102

Screw, Machine #4-40 x 1/4" (XRF IQ)

$1.23

1-2287

103

Bearing Shield (XRF IQ)

$15.80

1-1331-3

105

Circuit Breaker 20 AMP (XRFIQ)

$21.84

1-1759

106

IEC Power Inlet (XRF-IQ)

$3.80

3-1011-25

107

Screw, Machine #6-32 x 1/4" (XRF IQ)

$1.23

4-1015-12

110

Air Fitting, Elbow Bulkhead 1/4" Tube (XRF IQ)

$10.32

1-1215

114

Air Filter & Regulator (-2016 Model) (XRF IQ)

$89.99

1-1215-1

114

Air Filter & Regulator (2017+ Model) (XRF IQ)

$89.99

1-1788

115

Air Fitting, 1/4" ARO Male Coupling 1/4" NPT (XRF IQ)

$16.70

2-1029-HD

119

Lower Platen, 16 x20 (XRF IQ)

$157.67

1-2136

120

Silicone Pad, 16 x 20 (Blue) (XRF IQ)

$157.67

3-1336

121

Adapter Plate (XRF IQ)

$36.97

1-2215

122

Quick Release Pin

$10.41

2-1006-25

123

Washer, Flat 1/4" SAE (XRF IQ)

$1.23

2-1006-44

124

Washer, Spring Lock 1/4" (XRF IQ)

$1.23

3-1011-191

125

Screw, Socket Head Cap 1/4"-20 x 1" (XRF IQ)

$2.92

1-2291

136

Pedestal Stand Assembly (XRF IQ)

$409.94

1-2262

143

Self Leveling Stem Caster (XRF IQ)

$33.58

2-1006-10

149

Nut, Hex 3/8"-16 Nylok (XRF IQ)

$2.92

1-2324

150

Tabletop Stand (XRF IQ)

$313.95

1-2329

151

Rubber Foot (XRF IQ)

$7.80

2-1671

152

Power Cord 120V (XRF IQ)

$12.00

1-2186

152

Power Cord 240V (XRF IQ)

$12.00

1-2305

154

Foot Pedal Assembly (XRF IQ)

$23.36
